JMC electric refrigerated truck is designed for efficient urban and regional cold-chain delivery. Powered by a CATL 140.41 kWh battery and Bosch electric drive system, it provides reliable zero-emission transport for fresh, chilled and frozen goods.
The 4.02 m insulated cargo box offers practical loading capacity and stable temperature retention, making it suitable for food distribution, supermarket delivery and cold-chain logistics.
Highlights:
✅ Vehicle Model: JX5049XLCTHB2BEV
✅ Battery: CATL 140.41 kWh
✅ Motor: Bosch TZ230XS003, 200 kW
✅ Cargo Compartment: 4020 × 2100 × 2100 mm
✅ Overall Dimensions: 5995 × 2260 × 3330 mm
✅ Rated Payload: 975 kg
✅ Wheelbase: 3360 mm
✅ Tyres: 7.00R16LT 8PR Reinforced Tyres
✅ Battery Thermal Management: Water Cooling + Water Heater
✅ Braking System: Air Brake
|
JMC E-LUDA ELECTRIC REFRIGERATED TRUCK CATL-powered electric cold-chain truck for efficient urban and regional distribution |
||
|
140.41 kWh CATL battery |
200 kW / 272 HP Bosch drive motor |
4.02 m Refrigerated cargo body |
PRODUCT OVERVIEW
Powerful Electric Cold Chain for Daily Distribution
A 4.02 m refrigerated truck designed for fresh food, frozen products, dairy, seafood and pharmaceutical transport.
|
CATL Battery System 140.41 kWh battery with water cooling and water-heater support. |
Bosch Electric Drive 200 kW power and 272 HP equivalent output. |
|
4.02 m Cargo Body Large insulated compartment for urban and regional cold-chain routes. |
Air Brake System Reliable pneumatic service braking for commercial operation. |

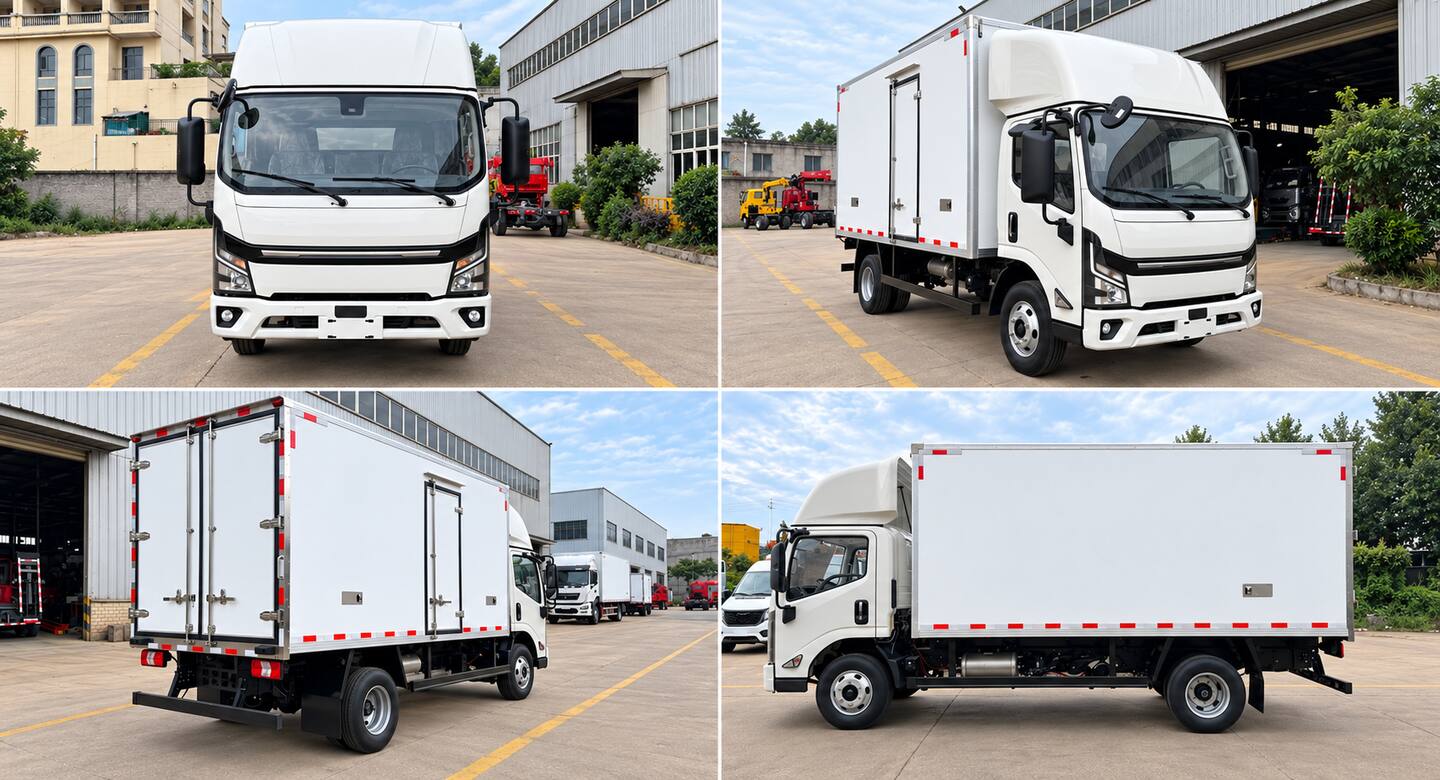

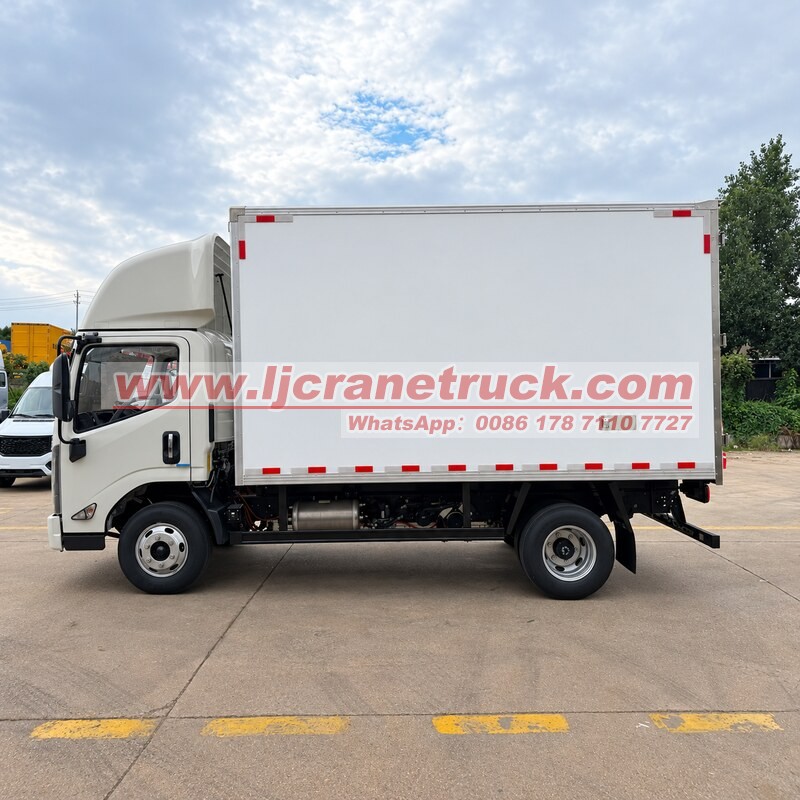

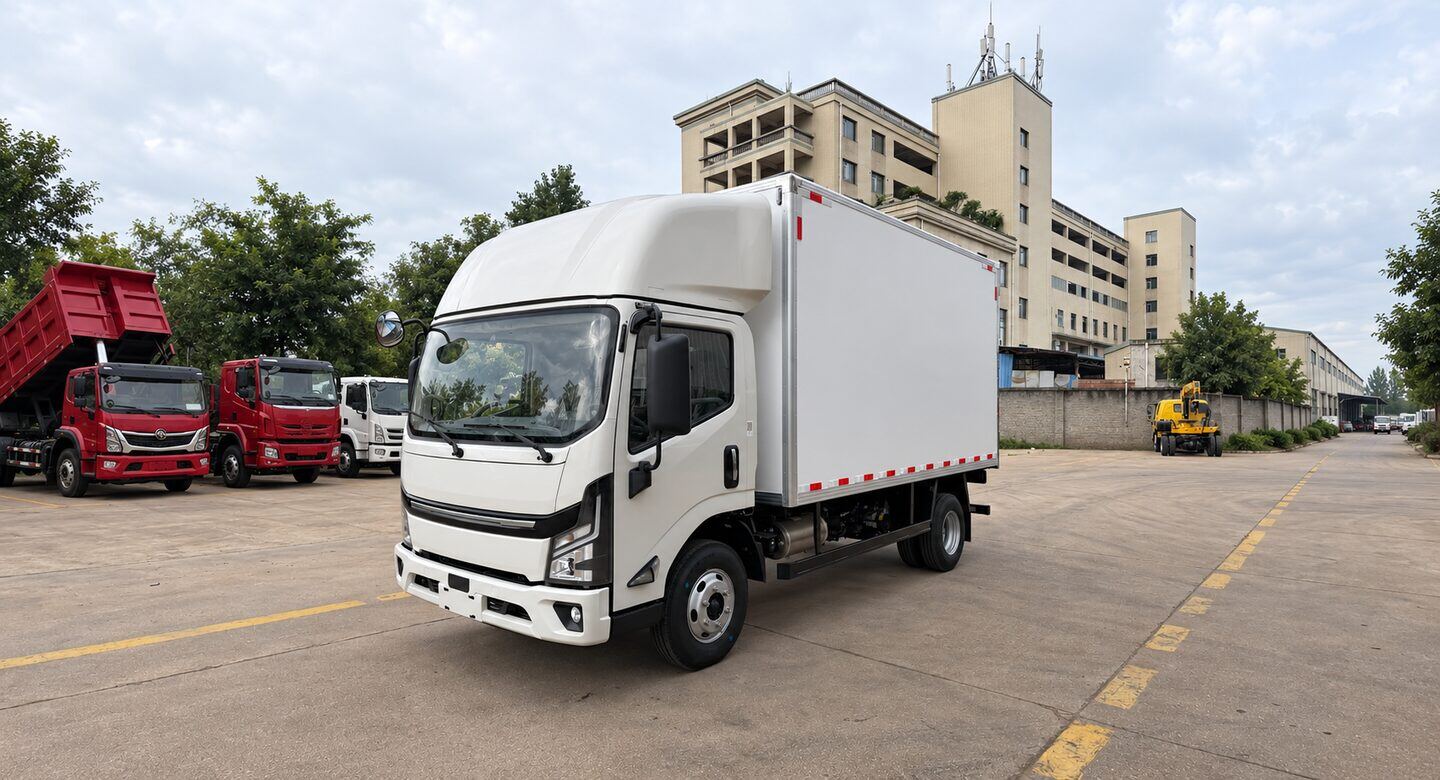

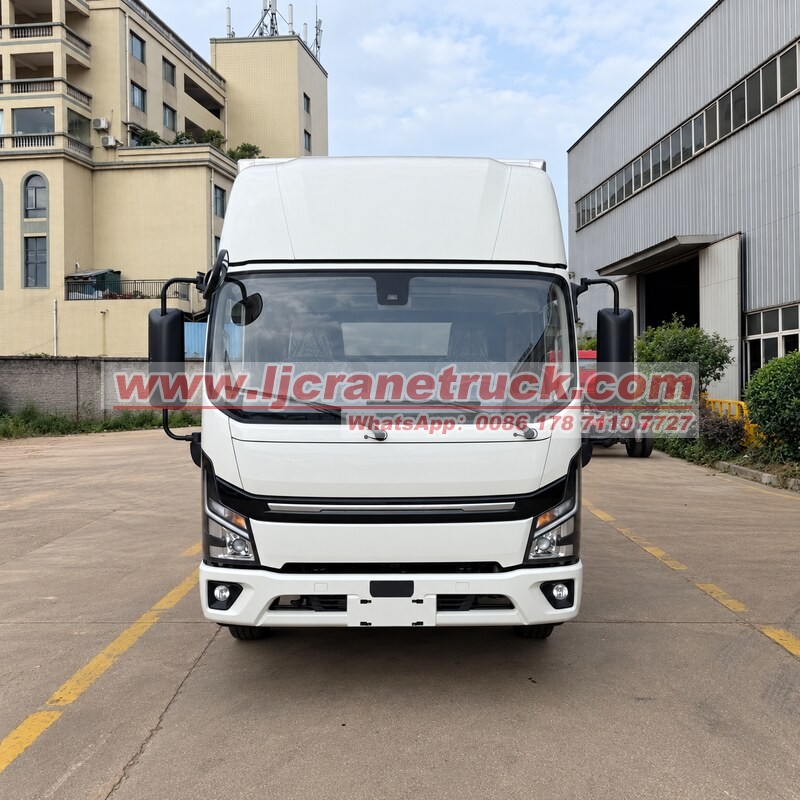

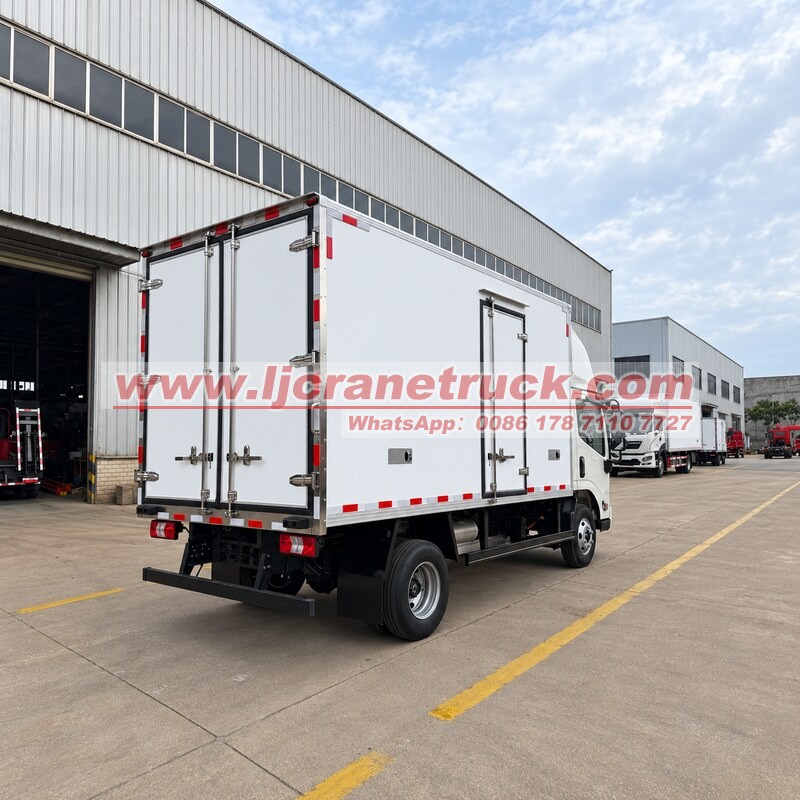

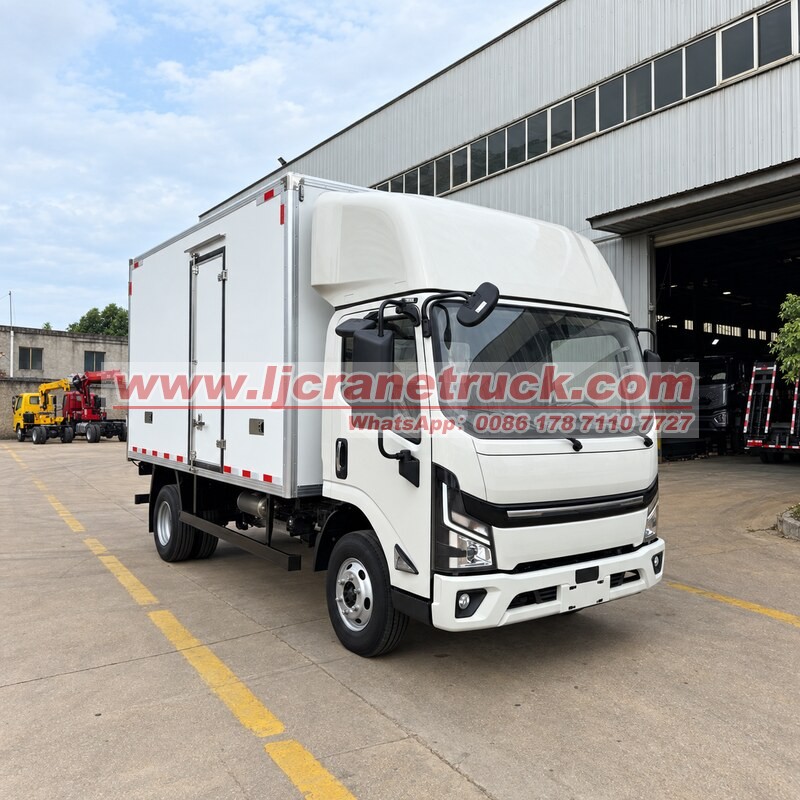

COMPLETE VEHICLE VIEWS
Clear Views from Every Main Angle
APPLICATIONS
Designed for Urban and Regional Cold Chain Operations
Suitable for scheduled delivery routes, high-volume cargo and frequent loading stops.
|
Fresh Food Fruit, vegetables and beverages |
Frozen Goods Meat, seafood and frozen food |
Pharmaceuticals Temperature-sensitive medical cargo |
Retail Delivery Stores, restaurants and warehouses |
KEY SPECIFICATIONS
Essential Vehicle Configuration Items
Confirmed data for the JMC E-Luda CATL 140.41 kWh refrigerated truck.
|
ITEM |
REFERENCE CONFIGURATION |
|
Vehicle Model |
JX5049XLCTHB2BEV |
|
Overall Dimensions |
5,995 × 2,260 × 3,330 mm |
|
Cargo Body Dimensions |
4,020 × 2,100 × 2,100 mm |
|
Gross Vehicle Weight |
4,495 kg |
|
Curb Weight |
3,325 kg |
|
Rated Payload |
975 kg |
|
Wheelbase |
3,360 mm |
|
Tyre Size |
7.00R16LT 8PR reinforced tyre |
VEHICLE TECHNICAL DATA
Electric Power Battery Cooling and Brake Configuration
|
Drive Motor Model |
TZ230XS003 by Bosch |
|
Motor Power |
200 kW / 272 HP |
|
Battery Manufacturer |
CATL |
|
Battery Capacity |
140.41 kWh |
|
Battery Cooling |
Water-cooled battery pack |
|
Battery Heating |
Water-heater system |
|
Chassis Voltage |
12 V |
|
Service Brake |
Air brake system |
|
Refrigeration Unit |
Chilled or frozen unit selected according to cargo and target temperature |
|
Cargo Body |
Insulated 4,020 × 2,100 × 2,100 mm body |
|
Hydraulic Tail Lift |
Optional configuration; capacity confirmed before production |
|
Export Configuration |
Charging standard and local compliance confirmed for destination market |

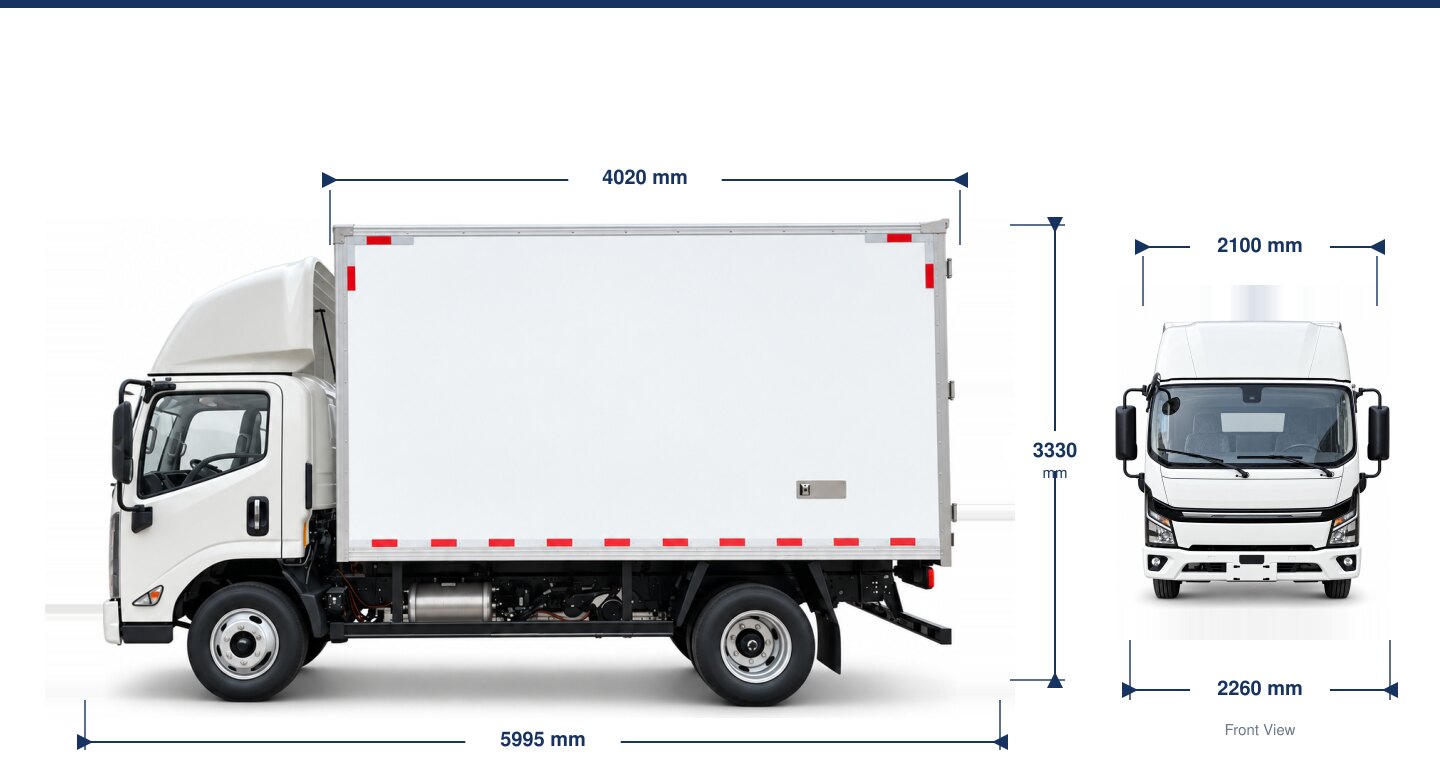

TECHNICAL DIMENSIONS
JMC E-Luda Electric Refrigerated Truck
Overall and cargo-body dimensions. The approved production drawing prevails.
BODY DETAILS
Insulated Cargo Body and Optional Equipment
Durable sealing, easy-clean surfaces and practical loading options support daily cold-chain operation.
REFRIGERATION SYSTEM
Cooling Performance Selected for Your Cargo
|
Electric Unit Vehicle-powered independent refrigeration |
Temperature Range Chilled or frozen down to -18°C |
Insulation High-density polyurethane body |
|
Interior Finish Food-grade FRP panels and LED lighting |
Air Distribution Optional air chute and ventilation system |
Monitoring Optional recorder and remote temperature monitoring |
LOADING CONFIGURATION
Optional Hydraulic Tail Lift for Efficient Handling
An optional electro-hydraulic tail lift supports safer and faster handling of pallets, crates and temperature-sensitive cargo. Lifting capacity and platform size are confirmed before production.
QUOTATION TERMS
Clear Export Offer and Order Confirmation
Commercial terms are finalized after target temperature, refrigeration unit, tail-lift option, charging standard and destination port are confirmed.
|
TERM |
DETAIL |
|
Price |
Latest FOB China port or CIF destination port quotation on request |
|
Payment |
T/T 30% deposit and 70% balance before shipment or factory release |
|
Lead Time |
Normally 20–30 working days after deposit and final specification approval |
|
Warranty |
12 months from shipment, subject to the signed contract and component terms |
|
Shipping |
FOB or CIF; destination port and freight must be confirmed |
|
Documents |
Commercial invoice, packing list and standard export documents |
|
Validity |
As stated on the formal Proforma Invoice |
GLOBAL AFTER SALES SUPPORT
Support That Continues After Delivery
Clear warranty guidance, technical communication and spare-parts support help customers keep vehicles operating.
|
12 Month Warranty Coverage follows the signed contract. |
24 Hour Technical Support Remote diagnosis and operating guidance. |
Free Operation Training Online training and manuals. |
Global Spare Parts Supply Wear parts and component support. |
Multi Brand Support Chassis and refrigeration coordination. |
SERVICE PROCESS
Fast Clear and Practical Support
|
01 Send Details Provide VIN, photos and fault information. |
02 Remote Diagnosis Engineers check the system and advise. |
03 Parts Confirmation Required parts are identified clearly. |
04 Follow Up Support continues until operation returns. |
