This 6.8 m refrigerated truck is built for high-capacity cold-chain transport of fresh, chilled and frozen goods.
Highlights:
✅ Engine: Cummins D7.0NS6B330, 330 hp
✅ Cargo Box: 6800 × 2440 × 2500 mm
✅ Overall Dimensions: 9200 × 2600 × 3960 mm
✅ Payload Capacity: 12,000 kg
✅ Wheelbase: 5000 mm
✅ Transmission: 8JSQX120TE
✅ Air Brake + 4.5T Front Axle / 9T Rear Axle
DONGFENG Tianjin 6.8m Refrigerated Truck
|
6.8 m INSULATED CARGO BODY |
330 hp CUMMINS 7.0 ENGINE |
12,000 kg PAYLOAD CAPACITY |
4×2 REAR WHEEL DRIVE |
DONGFENG TIANJIN REFRIGERATED TRUCK
Cold Chain Transport for High-Capacity Delivery
A 4×2 refrigerated truck with a high-roof sleeper cab, 6.8 m insulated cargo body and Cummins 7.0 power for dependable regional cold-chain logistics.
|
Cummins 7.0 Power 330 hp D7.0NS6B330 engine matched with an 8JSQX120TE transmission. |
6.8 m Cargo Body 6800 × 2440 × 2500 mm insulated body for high-volume cold-chain distribution. |
|
Heavy-Duty Chassis 4.5T front axle, 9T rear axle, 220 × 75 × 7 mm frame and air brake. |
Smart Cab High-roof double-sleeper cab with intelligent cockpit and two-seat layout. |

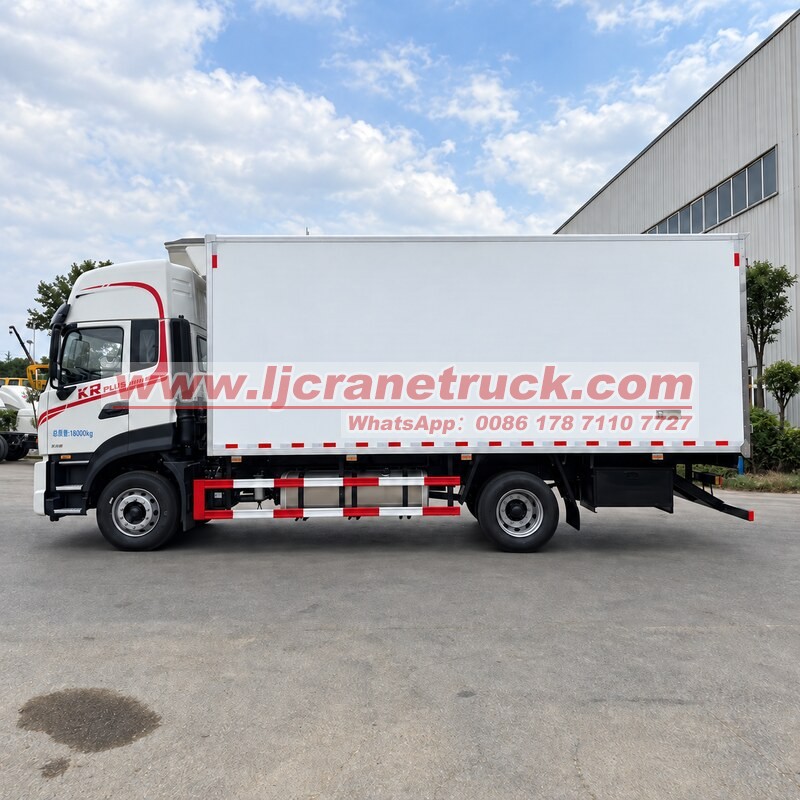

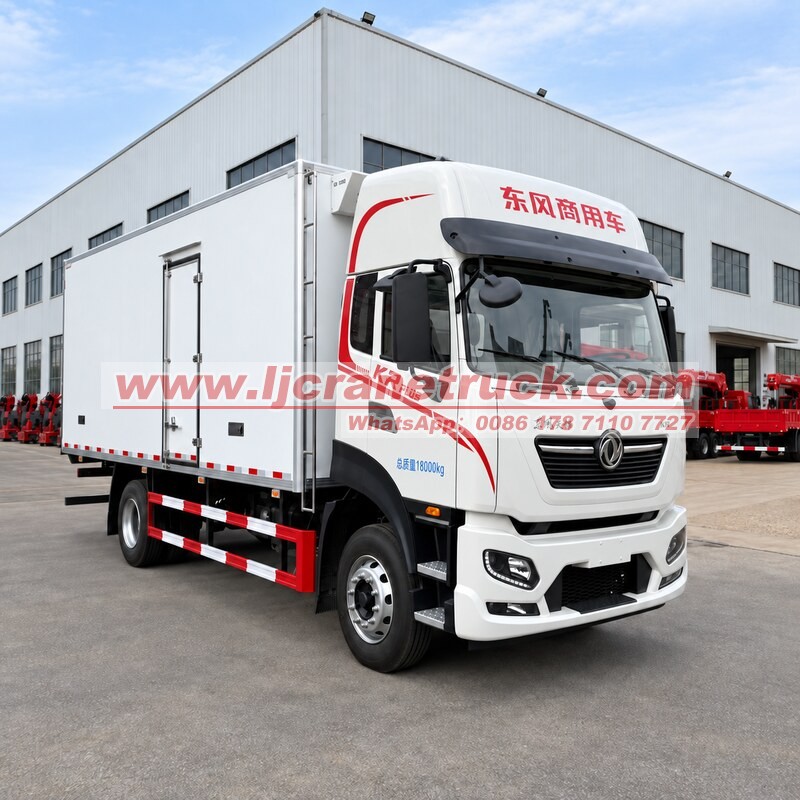

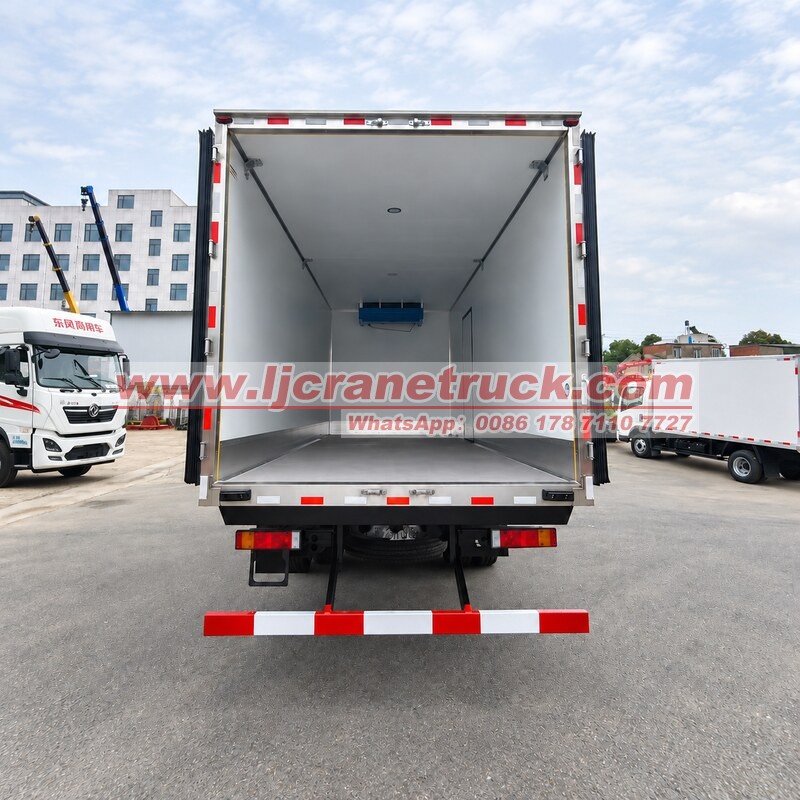

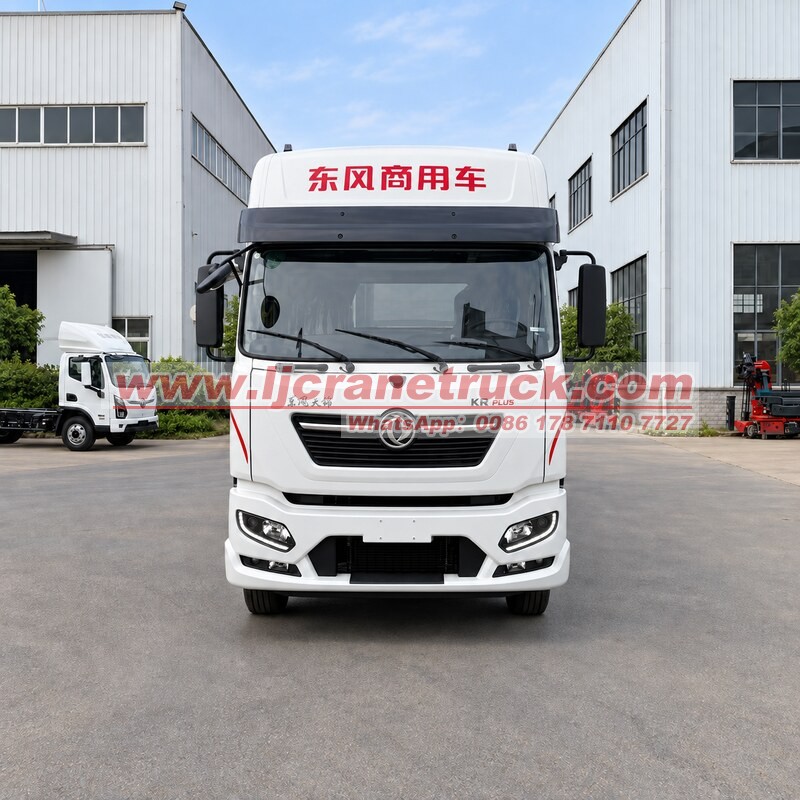

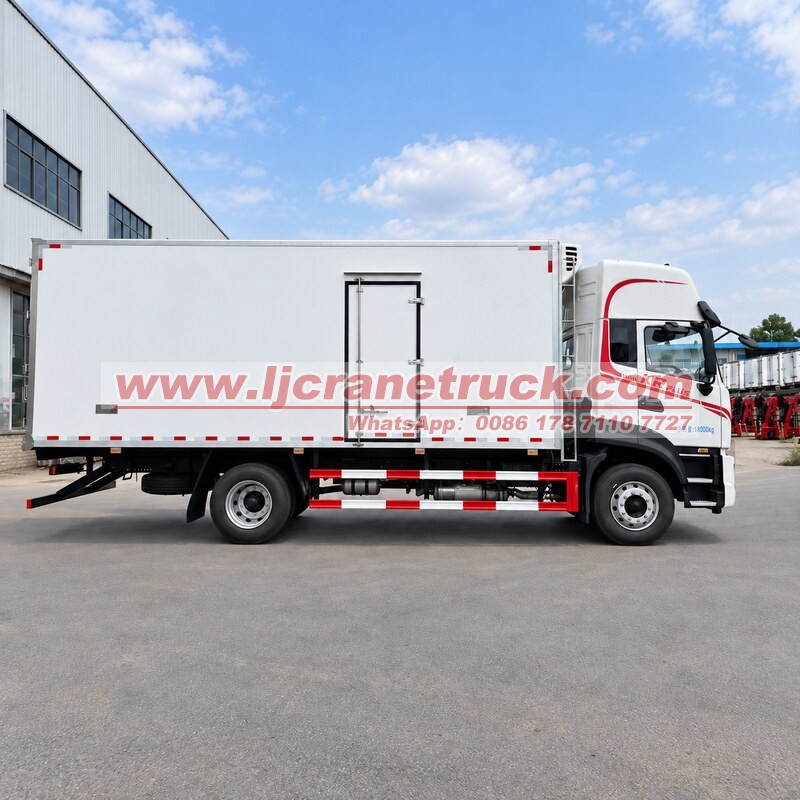

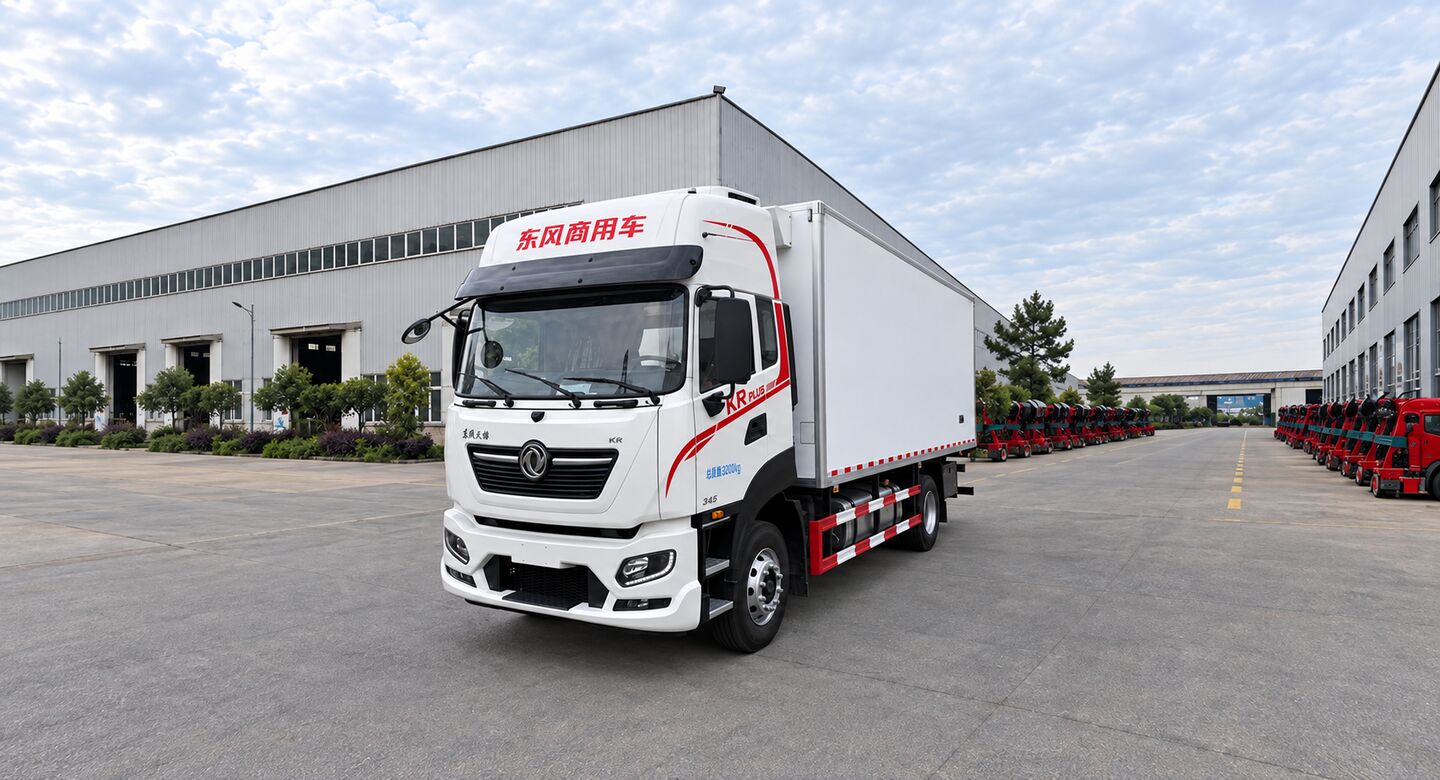

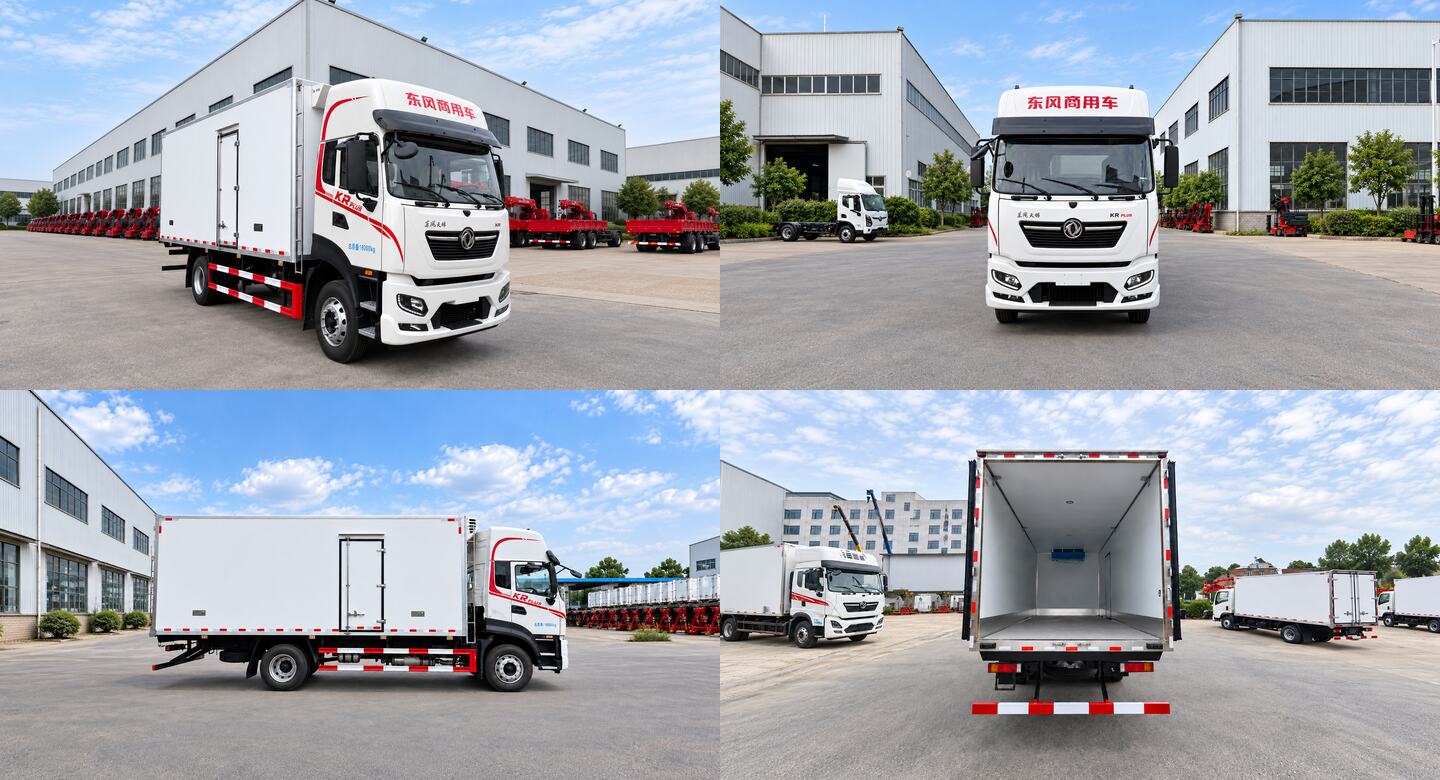

COMPLETE VEHICLE VIEW
Clear Views from Every Main Angle
Full vehicle presentation for fast product evaluation and overseas customer communication.
APPLICATIONS
Designed for Fresh and Frozen Goods Distribution
|
Fresh Food Delivery Fruit, vegetables, dairy products and ready-to-eat food distribution. |
Frozen Products Suitable for frozen food transport with a matched refrigeration solution. |
|
Retail and Catering Daily distribution for supermarkets, restaurants and cold stores. |
Regional Logistics Built for high-volume regional delivery routes and cold-storage connections. |
ESSENTIAL VEHICLE SPECIFICATIONS
Key Dimensions and Capacity
|
ITEM |
SPECIFICATION |
|
Vehicle |
DONGFENG Tianjin 6.8m Refrigerated Truck |
|
Drive Type |
4×2 rear-wheel drive |
|
Overall Dimensions |
9200 × 2600 × 3960 mm |
|
Cargo Body Dimensions |
6800 × 2440 × 2500 mm |
|
Payload Capacity |
12000 kg |
|
Wheelbase |
5000 mm |
|
Tyres |
275/80R22.5 18PR |
|
Fuel Tank |
600 L aluminium fuel tank |
POWERTRAIN AND BRAKING
Reliable Configuration for Commercial Transport
|
ITEM |
CONFIGURATION |
|
Engine |
Cummins D7.0NS6B330, 7.0 L |
|
Engine Power |
330 hp |
|
Transmission |
8JSQX120TE |
|
Axles |
4.5T front axle / 9T rear axle |
|
Service Braking |
Air brake |
|
Final Drive Ratio |
3.91 |
|
Suspension |
Full-floating mechanical suspension, 8 / 10+8 leaf springs |
|
Frame |
220 × 75 × 7 mm straight frame |
CHASSIS AND CAB CONFIGURATION
Built for Driver Control and Everyday Reliability
|
ITEM |
CONFIGURATION |
|
Cab |
D560 PLUS high-roof double-sleeper intelligent cab, 2 seats |
|
Intelligent Cockpit |
Factory intelligent-cockpit configuration for everyday operating convenience |
|
Lighting |
Halogen headlamps; roof panel reserved, without sunroof |
|
Air System |
Aluminium air reservoir with full air brake system |
|
Electrical System |
90 A alternator and 165 Ah battery |
|
Cab Suspension |
Full-floating mechanical front and rear suspension |
|
Driving Comfort |
High-roof sleeper cab designed for regional and long-distance routes |
|
Factory Standard |
Original factory standard configuration, subject to final order confirmation |

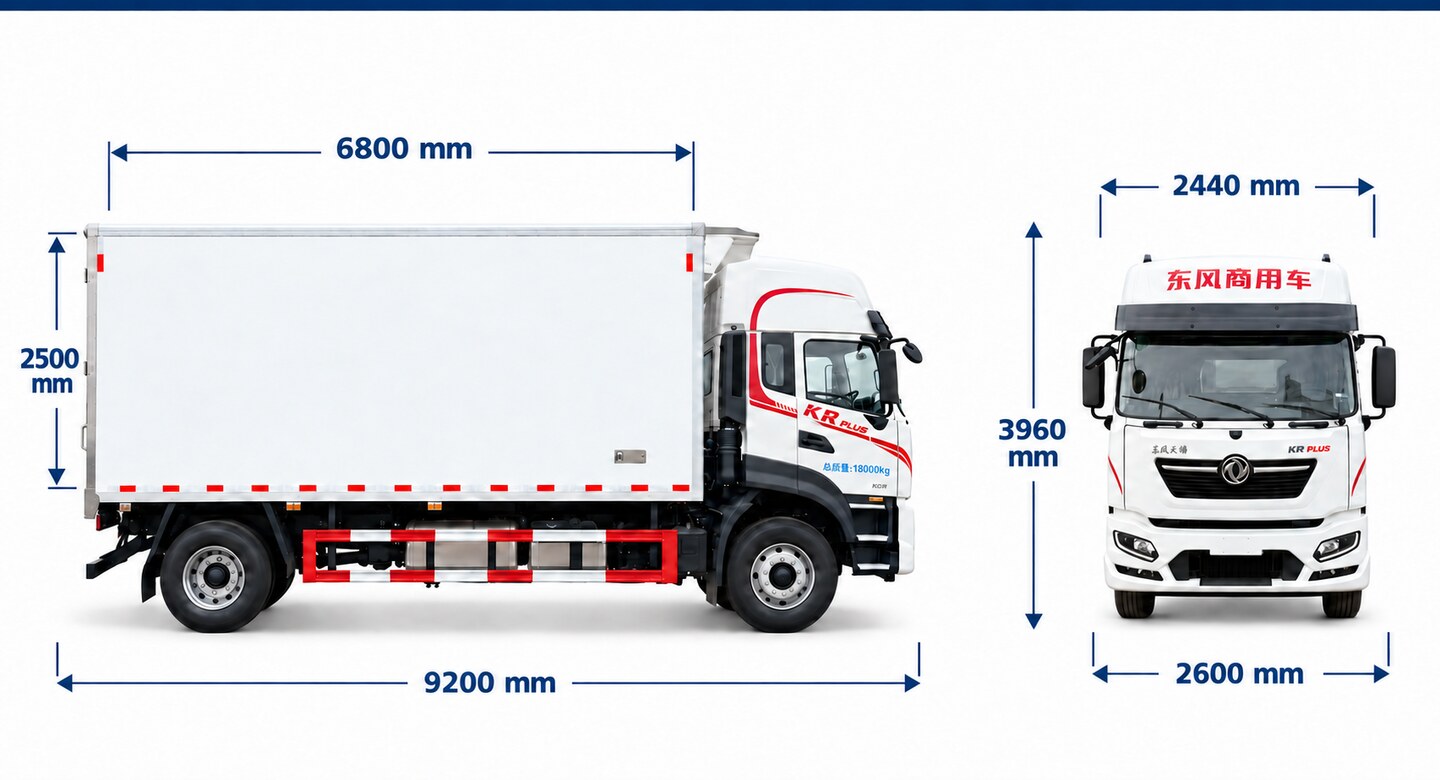

DIMENSION DRAWING
External Vehicle Dimensions
REFRIGERATED BODY CONFIGURATION
Flexible Configuration for Different Cold Chain Requirements
The 6.8 m insulated cargo body and refrigeration system can be matched to the cargo type, target temperature and local operating conditions.
|
Insulated Cargo Body 6.8 m box body designed to help maintain stable cargo temperature during delivery. |
Refrigeration Unit Cooling solution selected according to fresh, chilled or frozen goods requirements. |
|
Cargo Access Rear double doors and side door arrangement can be customized for loading workflow. |
Cargo Protection Optional anti-slip floor, air chutes, interior lighting and temperature monitoring. |
EXPORT SUPPORT
Clear Process from Configuration to Delivery
|
SERVICE |
DETAIL |
|
Configuration Confirmation |
Confirm cargo type, target temperature, refrigeration unit and required options. |
|
Production |
Vehicle and refrigerated body are assembled according to the confirmed configuration. |
|
Inspection |
Vehicle appearance, key functions and refrigeration-related items are checked before delivery. |
|
Shipping |
Export packing and shipment arrangements are prepared according to the agreed destination port. |
AFTER SALES SUPPORT
Practical Support for Long-Term Operation
|
Parts Support Common service and maintenance parts can be supplied according to the confirmed configuration. |
Technical Documents Operation and maintenance documents can be provided for export delivery. |
|
Configuration Records Vehicle chassis and body configuration records support future parts identification. |
Flexible Customization Refrigeration options and cargo-body details can be adjusted for market requirements. |
