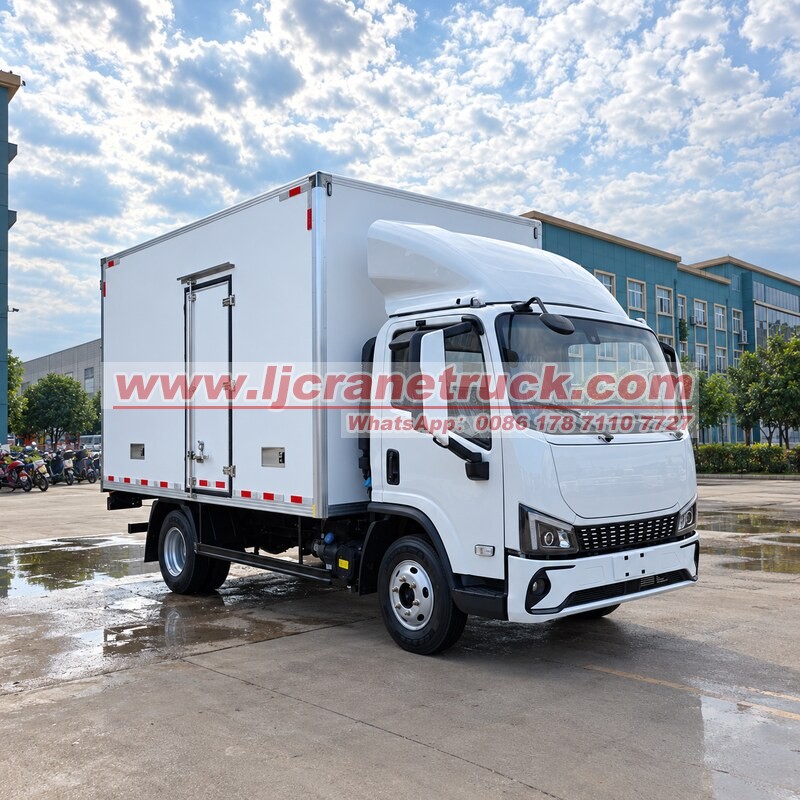

SHACMAN G300 4×2 refrigerated truck features a Cummins 3.0L 200 HP engine, FAST transmission and a 4.06 m insulated cargo box with 5,000 kg loading capacity, ideal for efficient transportation of fresh, chilled and frozen goods.
Highlights:
✅ Vehicle: SHACMAN G300 4×2 Refrigerated Truck
✅ Engine: Cummins D3.0NS6B200H, 3.0L
✅ Power: 200 HP
✅ Transmission: FAST Transmission
✅ Cargo Compartment: 4060 × 2100 × 2100 mm
✅ Loading Capacity: 5,000 kg
✅ Curb Weight: 3,200 kg
✅ Wheelbase: 3360 mm
✅ Tyres: 7.00R16LT 8PR Reinforced Tyres
✅ Axles: HANDE 6.5-Ton Maintenance-Free Axles
✅ Braking System: Full Air Brake
SHACMAN G300 4x2 Refrigerated Truck
|
4.06 m INSULATED CARGO BODY |
200 hp CUMMINS 3.0 ENGINE |
5,000 kg PAYLOAD CAPACITY |
4×2 REAR WHEEL DRIVE |
SHACMAN G300 REFRIGERATED TRUCK
Cold Chain Transport Built for Daily Delivery
A 4×2 refrigerated truck with a wide single-row cab, 4.06 m insulated cargo body and Cummins 3.0 power for dependable city and regional logistics.
|
Cummins 3.0 Power 200 hp D3.0NS6B200H engine matched with a Fast 8-speed long-drain transmission. |
4.06 m Cargo Body 4060 × 2100 × 2100 mm body offers practical volume for refrigerated distribution. |
|
Safety Systems AEBS + ESC, AEB emergency braking, air brake and front disc / rear drum brakes. |
Driver Comfort Automatic climate control, 8-inch central display, cruise control and leather seats. |

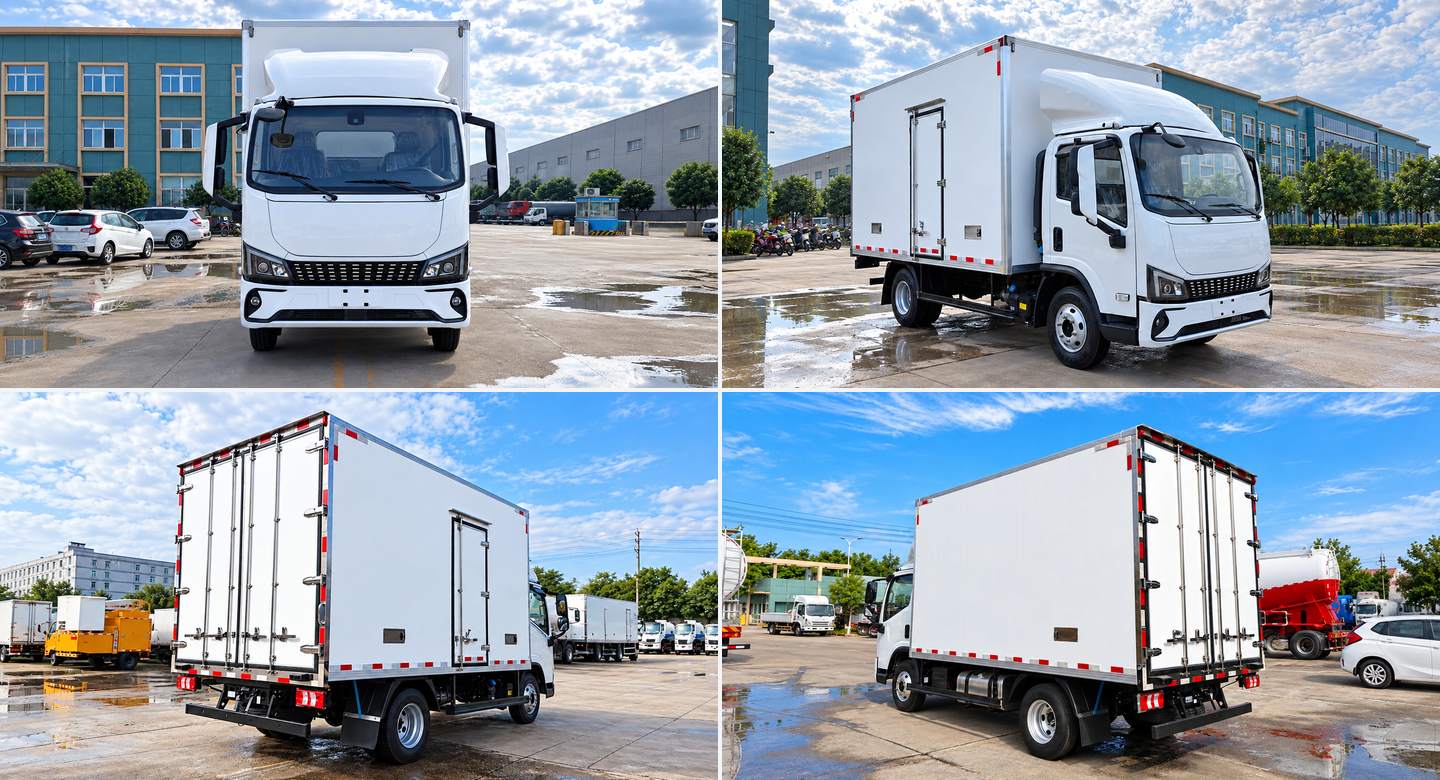

COMPLETE VEHICLE VIEW
Clear Views from Every Main Angle
Full vehicle presentation for fast product evaluation and overseas customer communication.
APPLICATIONS
Designed for Fresh and Frozen Goods Distribution
|
Fresh Food Delivery Fruit, vegetables, dairy products and ready-to-eat food distribution. |
Frozen Products Suitable for frozen food transport with a matched refrigeration solution. |
|
Retail and Catering Daily distribution for supermarkets, restaurants and cold stores. |
Regional Logistics Compact 4×2 size for flexible access in urban and regional routes. |
ESSENTIAL VEHICLE SPECIFICATIONS
Key Dimensions and Capacity
|
ITEM |
SPECIFICATION |
|
Vehicle |
SHACMAN G300 Refrigerated Truck |
|
Drive Type |
4×2 rear-wheel drive |
|
Overall Dimensions |
5995 × 2260 × 3210 mm |
|
Cargo Body Dimensions |
4060 × 2100 × 2100 mm |
|
Curb Weight |
3200 kg |
|
Payload Capacity |
5000 kg |
|
Wheelbase |
3360 mm |
|
Tyres |
7.00R16LT 8PR reinforced tyres |
POWERTRAIN AND BRAKING
Reliable Configuration for Commercial Transport
|
ITEM |
CONFIGURATION |
|
Engine |
Cummins 3.0 D3.0NS6B200H |
|
Engine Power |
200 hp |
|
Transmission |
Fast 8J62 long-drain transmission |
|
Axles |
6.5-ton HandE maintenance-free front and rear axles |
|
Service Braking |
Air brake |
|
Brake Layout |
Front disc brake + rear drum brake |
|
Safety Braking |
AEBS + ESC and AEB emergency braking |
|
Suspension |
Multi-leaf spring front and rear suspension |
CHASSIS AND CAB CONFIGURATION
Built for Driver Control and Everyday Reliability
|
ITEM |
CONFIGURATION |
|
Cab |
Wide single-row cab, 3 seats, cab tilt function |
|
Steering |
EPS electronic power steering, four-way adjustable steering wheel |
|
Cab Comfort |
Automatic constant-temperature A/C, foam steering wheel, leather driver and passenger seats |
|
Infotainment |
8-inch central display and Bluetooth module with hands-free calling |
|
Lighting |
LED headlights, daytime running lights, front fog lamps and automatic headlamp control |
|
Visibility |
Heated manual-adjust exterior mirrors and electric front windows |
|
Security |
Central locking, remote foldable key and driver seat-belt warning |
|
Chassis |
180 mm straight-through frame, steel wheels and aluminium air reservoir |

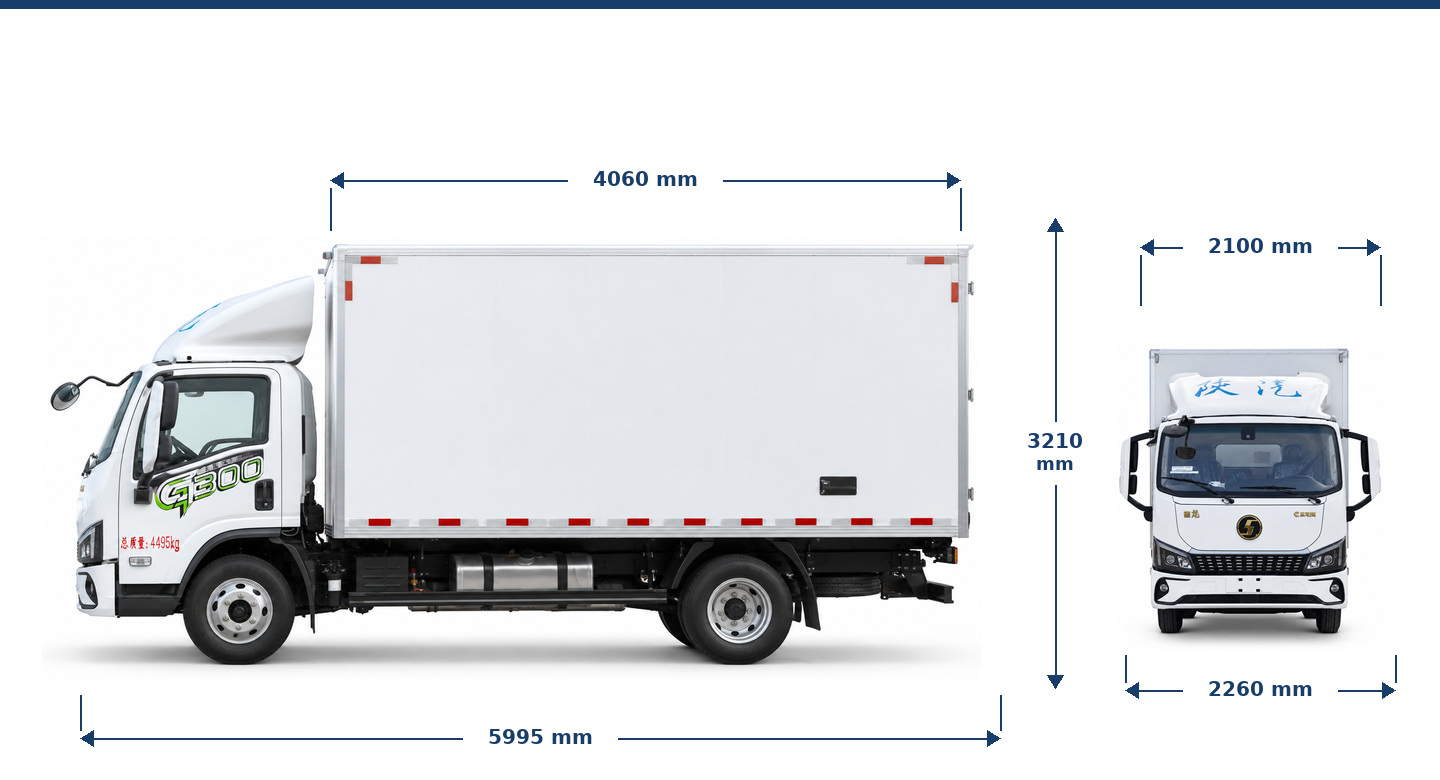

DIMENSION DRAWING
External Vehicle Dimensions
REFRIGERATED BODY CONFIGURATION
Flexible Configuration for Different Cold Chain Requirements
The insulated cargo body and refrigeration system can be matched to the cargo type, target temperature and local operating conditions.
|

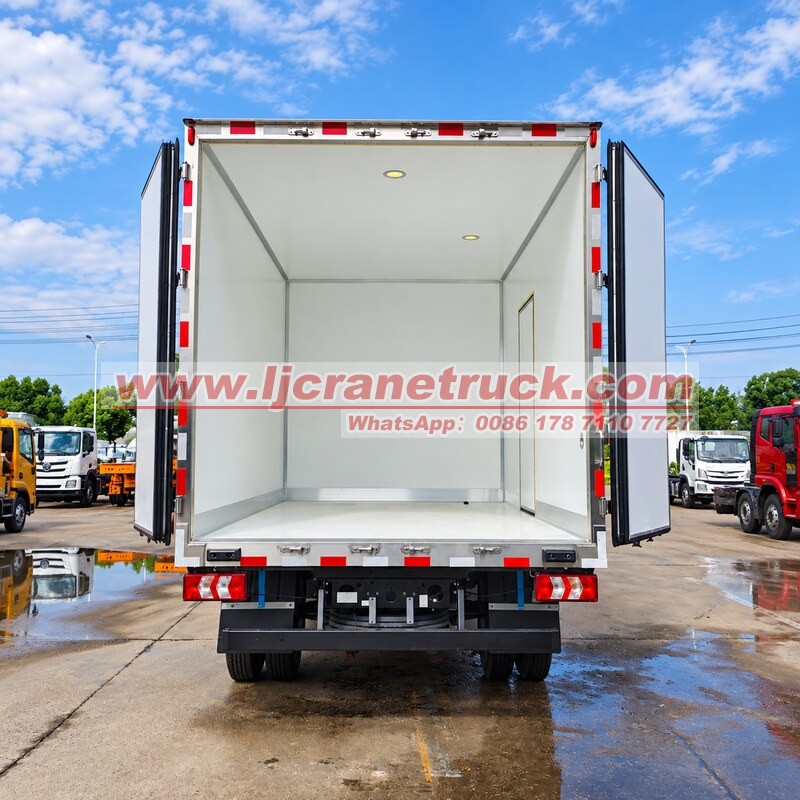

Insulated Cargo Body 4.06 m box body designed to help maintain stable cargo temperature during delivery. |
Refrigeration Unit Cooling solution selected according to fresh, chilled or frozen goods requirements. |
|

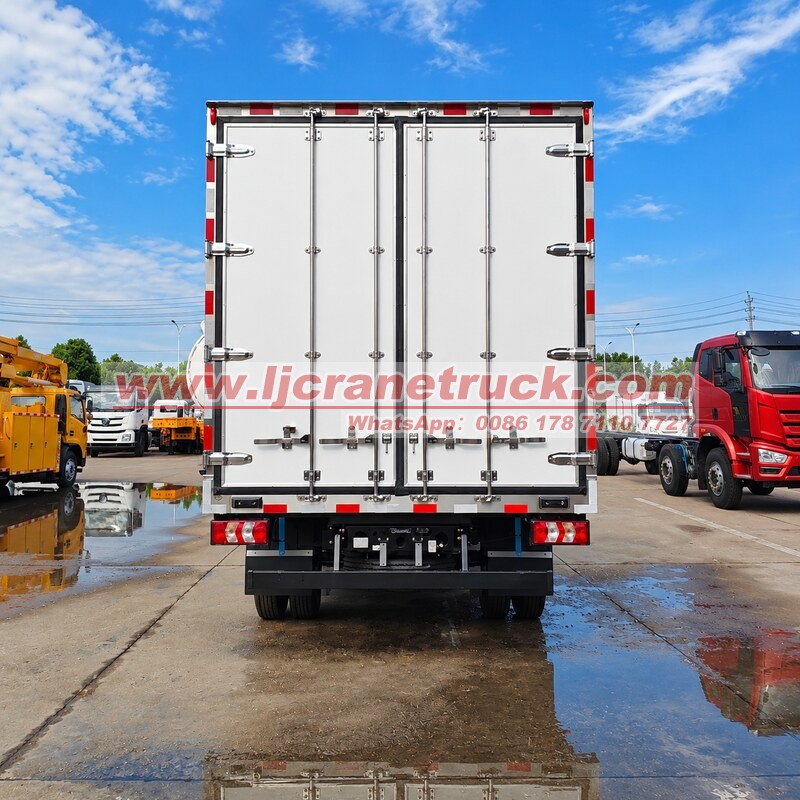

Cargo Access Rear double doors and side door arrangement can be customized for loading workflow. |
Cargo Protection Optional anti-slip floor, air chutes, interior lighting and temperature monitoring. |
EXPORT SUPPORT
Clear Process from Configuration to Delivery
|
SERVICE |
DETAIL |
|
Configuration Confirmation |
Confirm cargo type, target temperature, refrigeration unit and required options. |
|
Production |
Vehicle and refrigerated body are assembled according to the confirmed configuration. |
|
Inspection |
Vehicle appearance, key functions and refrigeration-related items are checked before delivery. |
|
Shipping |
Export packing and shipment arrangements are prepared according to the agreed destination port. |
AFTER SALES SUPPORT
Practical Support for Long-Term Operation
|
Parts Support Common service and maintenance parts can be supplied according to the confirmed configuration. |
Technical Documents Operation and maintenance documents can be provided for export delivery. |
|
Configuration Records Vehicle chassis and body configuration records support future parts identification. |
Flexible Customization Refrigeration options and cargo-body details can be adjusted for market requirements. |
