IVECO V35 Refrigerated Van

Name: IVECO V35 Refrigerated Van
Availability: InStock

This refrigerated van is designed for urban delivery of fresh, chilled and frozen goods.

Highlights:

✅ Engine: 2.5 L diesel, 110 kW / 150 hp

✅ Overall Dimensions: 4875 × 2040 × 2680 mm

✅ Cargo Box: 2150 × 1640 × 1550 mm

✅ Refrigeration: -18°C unit

✅ Insulation: 50 mm insulated core

✅ Brakes: Front and rear disc brakes + ABS

✅ Rear double doors and optional sliding side door

Inquire Now

IVECO V35 Refrigerated Van

Refrigerated Van

2.15 m

INSULATED CARGO BODY

150 hp

2.5 L DIESEL ENGINE

-18°C

REEFER UNIT

TWIN REAR

WHEEL CONFIGURATION

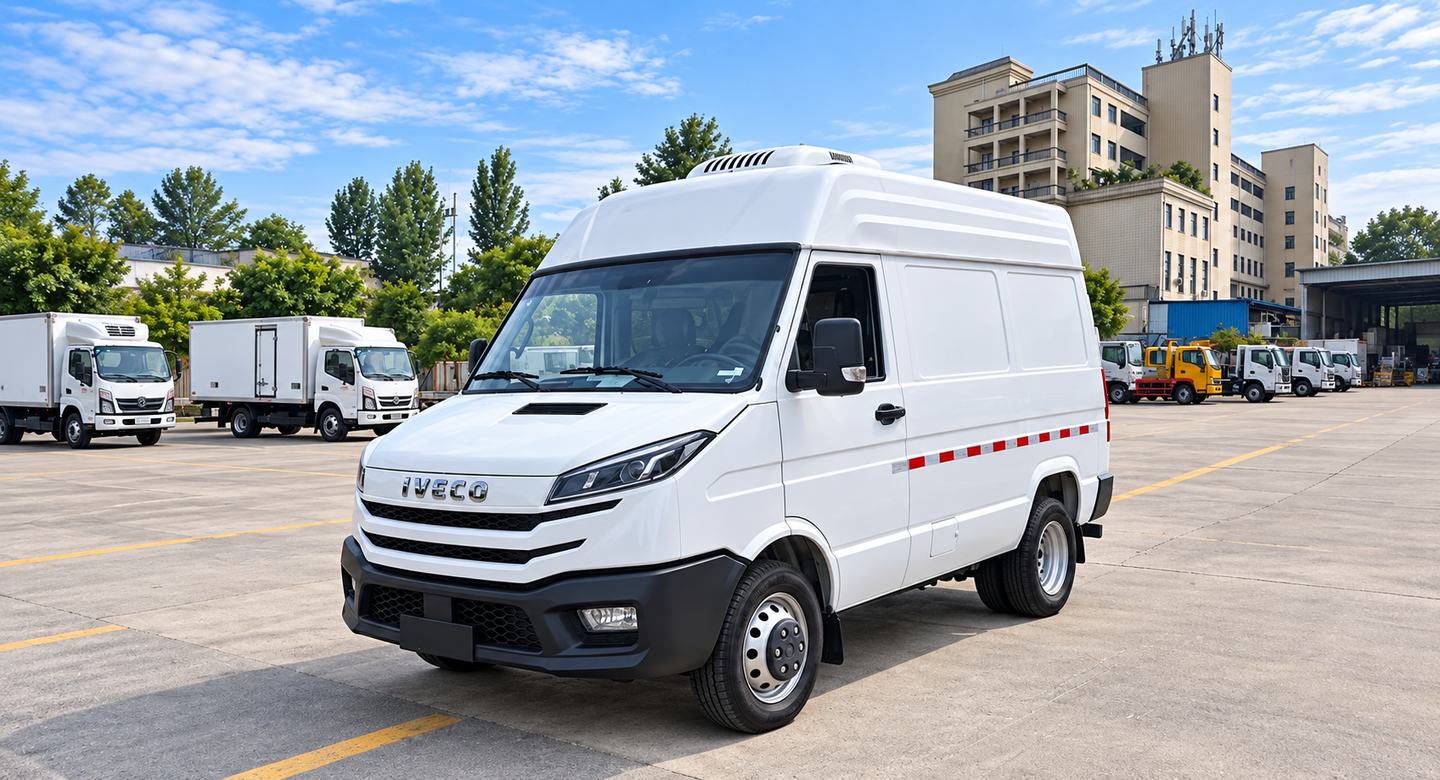

IVECO V35 REFRIGERATED VAN

Reliable Cold Chain Delivery for Urban Routes

A compact refrigerated van with a 2.15 m insulated cargo body, twin rear wheels and 2.5 L diesel power for fresh, chilled and frozen goods delivery.

2.5 L Diesel Power

NV25E6 Euro VI diesel engine with 110 kW / 150 hp and 5-speed manual transmission.

Compact Cold Body

2150 × 1640 × 1550 mm insulated cargo compartment for urban distribution.

-18°C Refrigeration

Chinese-made refrigeration unit for frozen-goods transport, with final configuration confirmed by order.

Daily Driving Features

ABS, four-wheel disc brakes, reverse parking sensors, central locking and remote key.

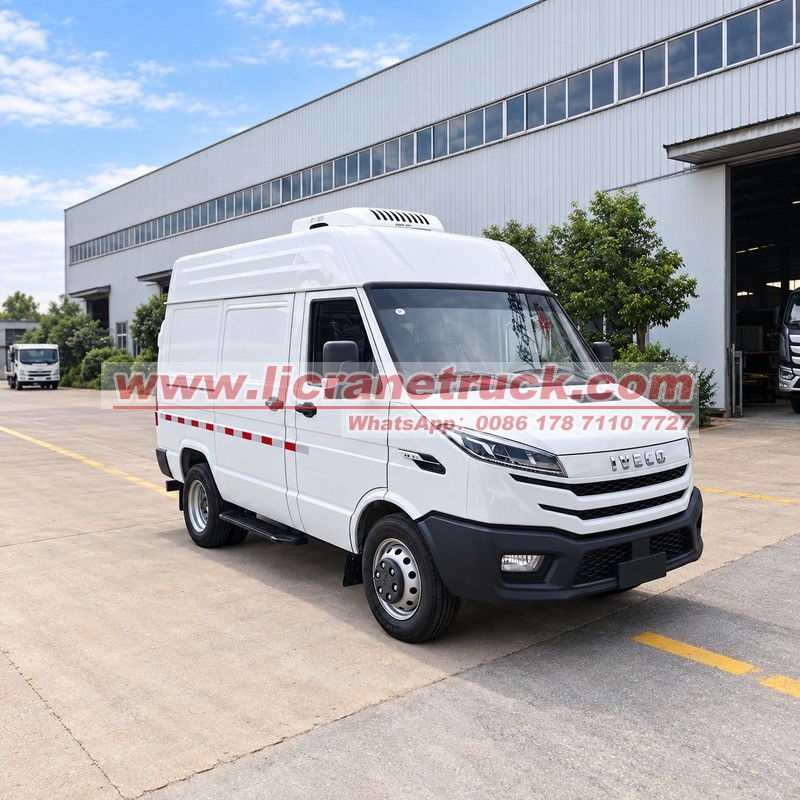

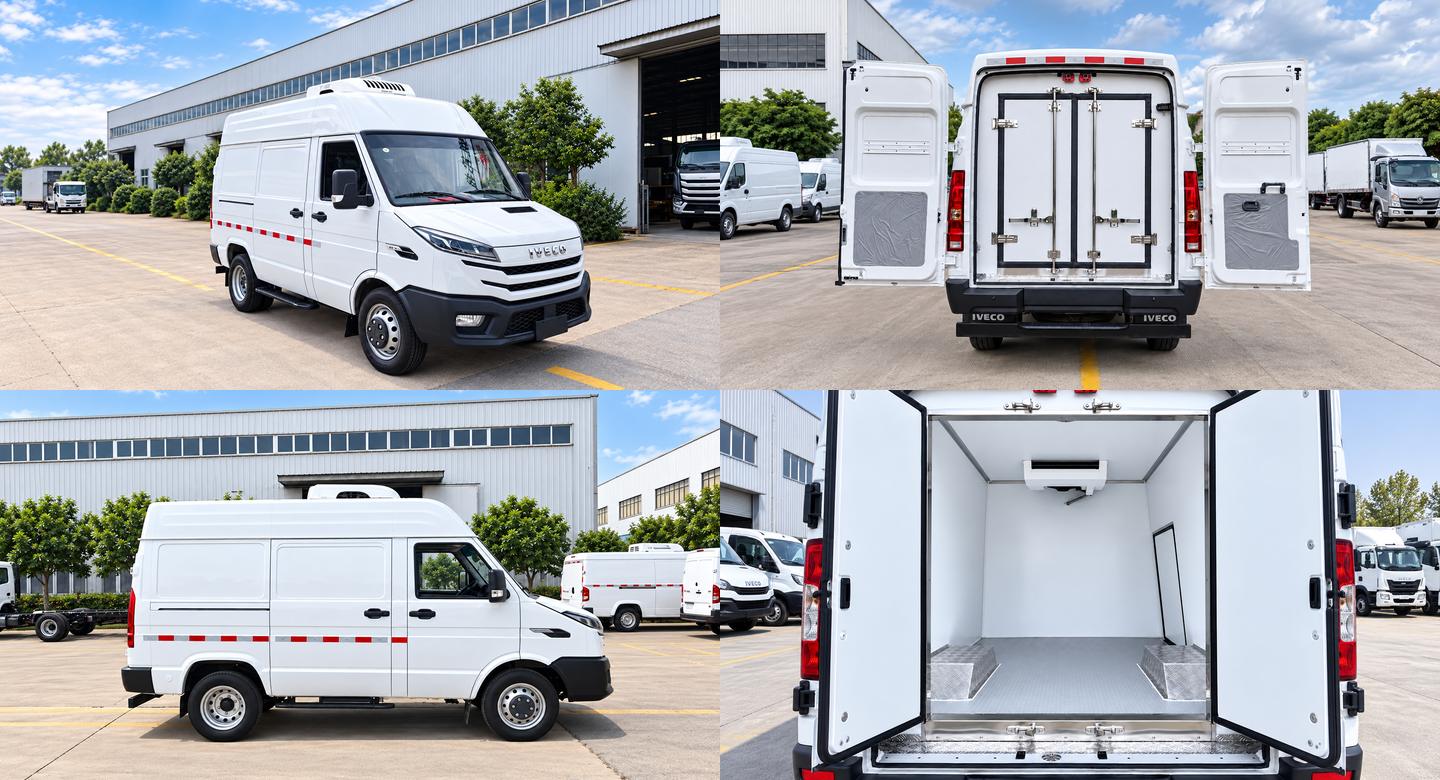

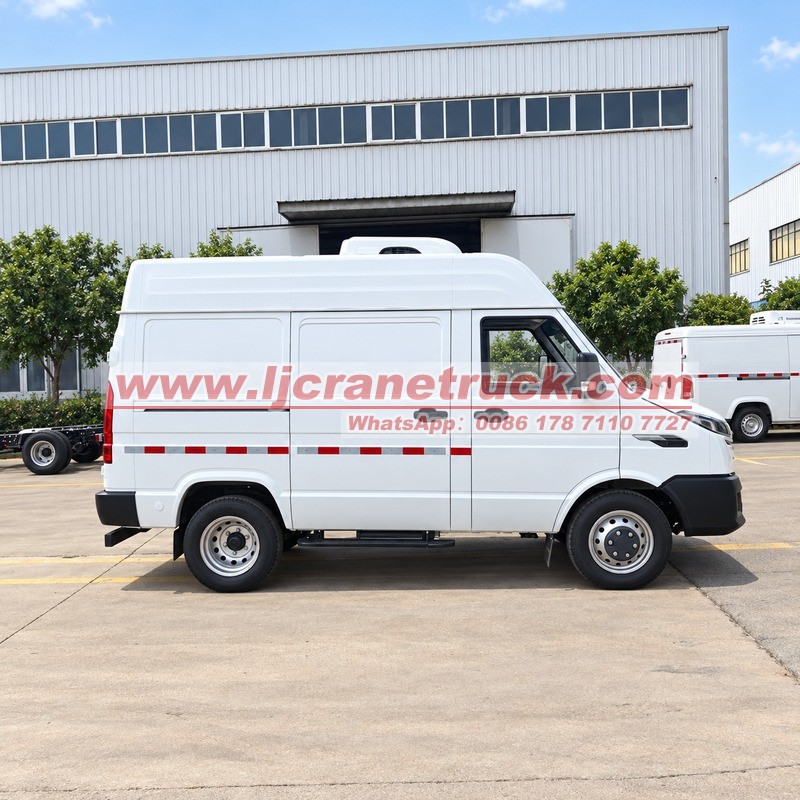

COMPLETE VEHICLE VIEW

Clear Views from Every Main Angle

Full vehicle presentation for fast product evaluation and overseas customer communication.

Cold Chain Van

APPLICATIONS

Designed for Fresh and Frozen Goods Distribution

Fresh Food Delivery

Fruit, vegetables, dairy products and ready-to-eat food distribution.

Frozen Products

Suitable for frozen food transport with a matched refrigeration solution.

Retail and Catering

Daily distribution for supermarkets, restaurants and cold stores.

Urban Distribution

Compact van layout for city routes, retail delivery and local cold-chain operations.

ESSENTIAL VEHICLE SPECIFICATIONS

Key Dimensions and Capacity

ITEM	SPECIFICATION
Vehicle	IVECO V35 Refrigerated Van
Overall Dimensions	4875 × 2040 × 2680 mm
Cargo Body Dimensions	2150 × 1640 × 1550 mm
Body Structure	Non-load-bearing body with twin rear wheels
Tyres	195/75R16LT
Fuel Tank	70 L
Door Layout	Rear double doors; optional sliding side door and side step
Cargo Side Door	Single side door

POWERTRAIN AND BRAKING

Reliable Configuration for Commercial Transport

ITEM	CONFIGURATION
Engine	NV25E6 Euro VI, 2.5 L diesel
Engine Power	110 kW / 150 hp
Transmission	5MT manual transmission
Service Braking	Front disc + rear disc brakes
Safety System	ABS
Generator	140 A
Cab Air Conditioning	5 kW cooling and heating air conditioner
AdBlue System	Equipped

CHASSIS AND CAB CONFIGURATION

Built for Driver Control and Everyday Reliability

ITEM	CONFIGURATION
Platform	All-new Daily V35 series chassis
Cab Convenience	Electric front windows, central locking and remote key
Parking Aid	Reverse parking sensors
Power Supply	Dual-voltage bracket for refrigeration-system installation
Refrigeration Unit	Chinese-made -18°C refrigeration unit
Insulation	Fiberglass inner and outer skins with 50 mm insulated core
Cargo Floor	Patterned fiberglass cargo floor
Door Hardware	Stainless-steel door locks and fittings

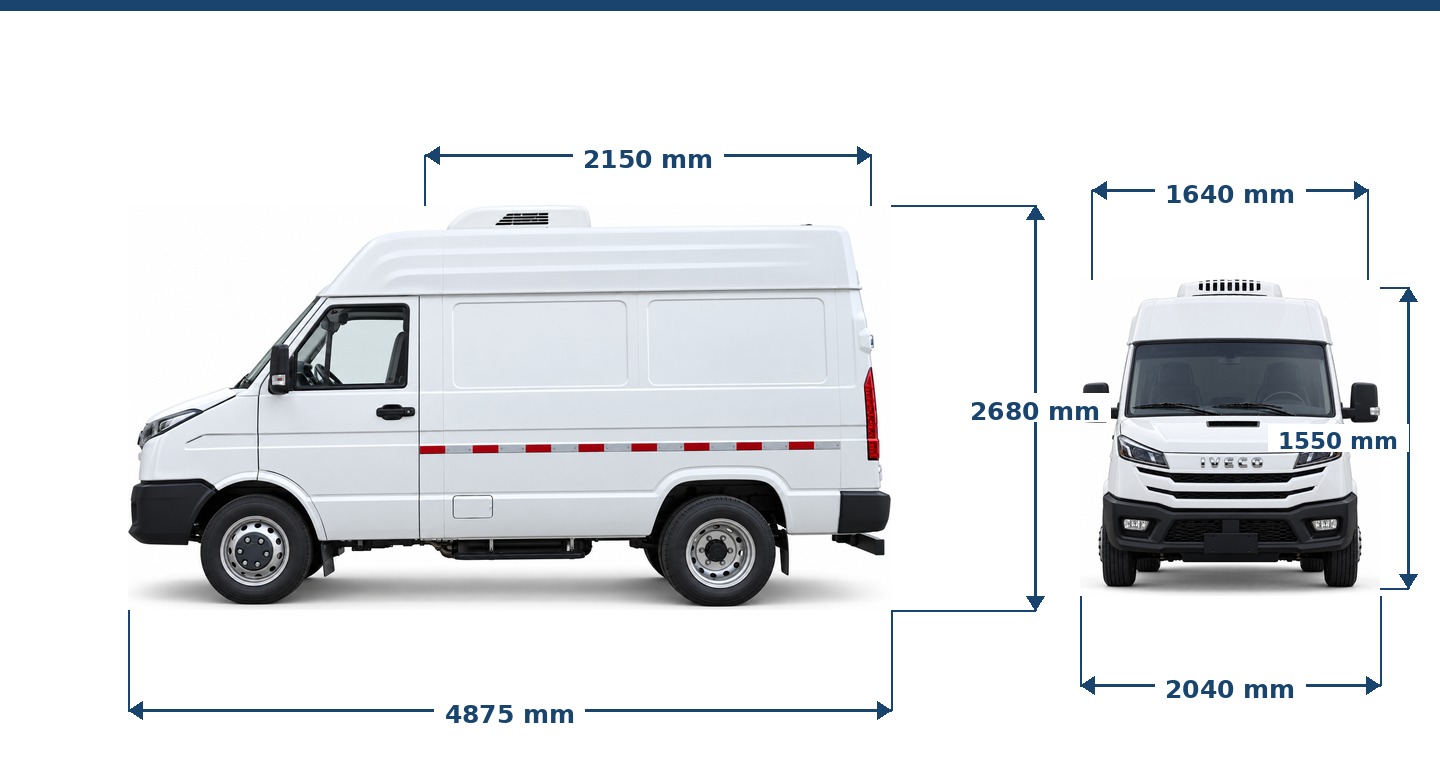

DIMENSION DRAWING

External Vehicle Dimensions

IVECO Refrigerated Van

REFRIGERATED BODY CONFIGURATION

Flexible Configuration for Different Cold Chain Requirements

The insulated cargo body and refrigeration system are configured for fresh, chilled or frozen goods and can be adjusted to local operating conditions.

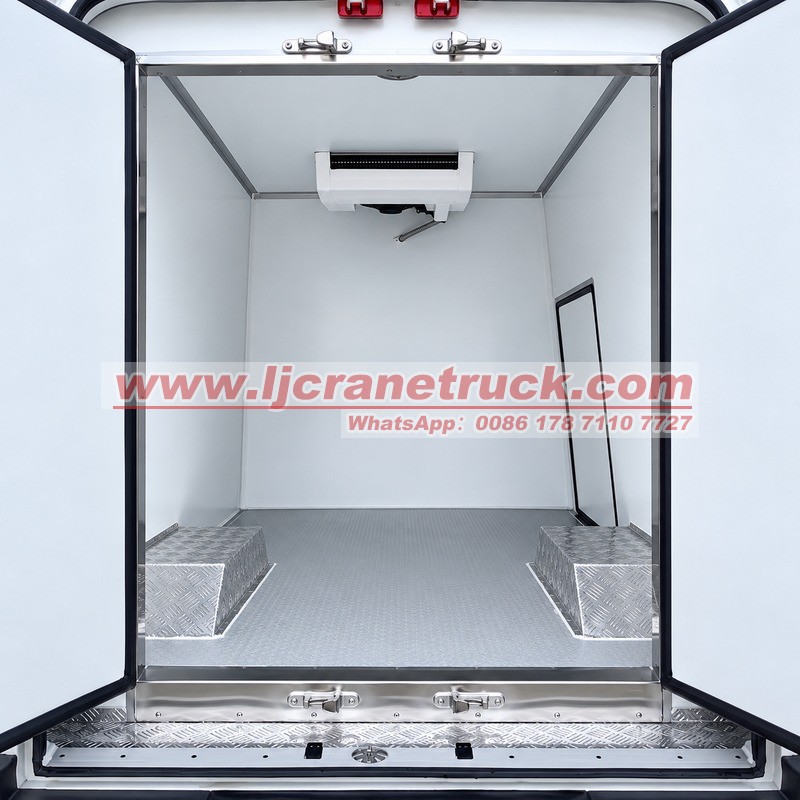

Insulated Cargo Body

50 mm insulation core with fiberglass inner and outer panels to reduce cold-air loss.

Refrigeration Unit

Chinese-made -18°C refrigeration unit for frozen cargo applications.

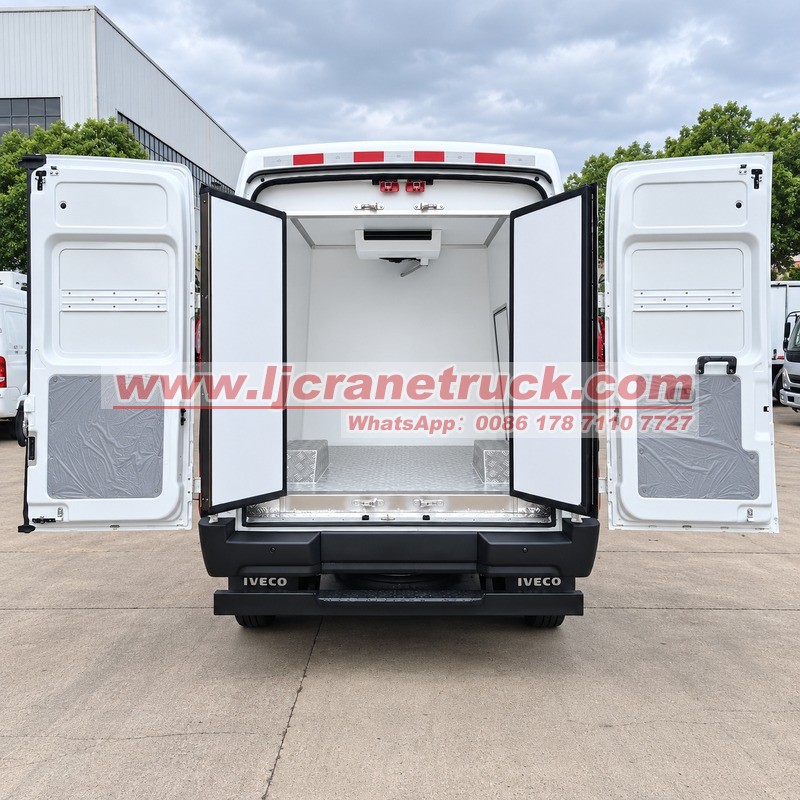

Cargo Access

Rear double doors, a standard single side door and optional sliding side door with step.

Cargo Protection

Patterned fiberglass floor and stainless-steel door hardware for practical everyday use.

EXPORT SUPPORT

Clear Process from Configuration to Delivery

SERVICE	DETAIL
Configuration Confirmation	Confirm cargo type, target temperature, refrigeration unit and required options.
Production	Vehicle and refrigerated body are assembled according to the confirmed configuration.
Inspection	Vehicle appearance, key functions and refrigeration-related items are checked before delivery.
Shipping	Export packing and shipment arrangements are prepared according to the agreed destination port.
