WEICHAI BLUE ENGINE 100.22kWh Electric Refrigerated Truck

WEICHAI BLUE ENGINE 100.22kWh Electric Refrigerated Truck

Name: WEICHAI BLUE ENGINE 100.22kWh Electric Refrigerated Truck
Availability: InStock

WEICHAI Electric Refrigerated Truck

This electric refrigerated truck is suitable for fresh, chilled and frozen goods delivery.

Highlights:

✅ Battery: 100.22 kWh

✅ Motor: 120 kW

✅ Overall Dimensions: 5995 × 2260 × 3210 mm

✅ Cargo Box: 4060 × 2100 × 2100 mm

✅ Payload: 5,000 kg

✅ Air Brake + ABS + ASR

✅ DC Fast Charging

Inquire Now

WEICHAI 100kWh Electric Refrigerated Truck

Electric Refrigerated Truck

100.22 kWh

BYD FINDBATTERY

120 kW

WEICHAI E-MOTOR

5,000 kg

PAYLOAD CAPACITY

4×2

REAR WHEEL DRIVE

WEICHAI BLUE ENGINE ELECTRIC REFRIGERATED TRUCK

Zero Emission Cold Chain Transport for Daily Delivery

A 4×2 electric refrigerated truck with a wide flat-roof single-row cab, 4.06 m insulated cargo body and 100.22 kWh battery system for city and regional cold-chain logistics.

BYD Battery System

100.22 kWh battery supports dependable electric cold-chain transport.

4.06 m Cargo Body

4060 × 2100 × 2100 mm body offers practical volume for refrigerated distribution.

Safety Systems

Air brake, ABS + ASR, external aluminium air reservoir and manual parking brake.

Driver Comfort

Electric A/C with heating, multifunction steering wheel, cruise control and Bluetooth audio.

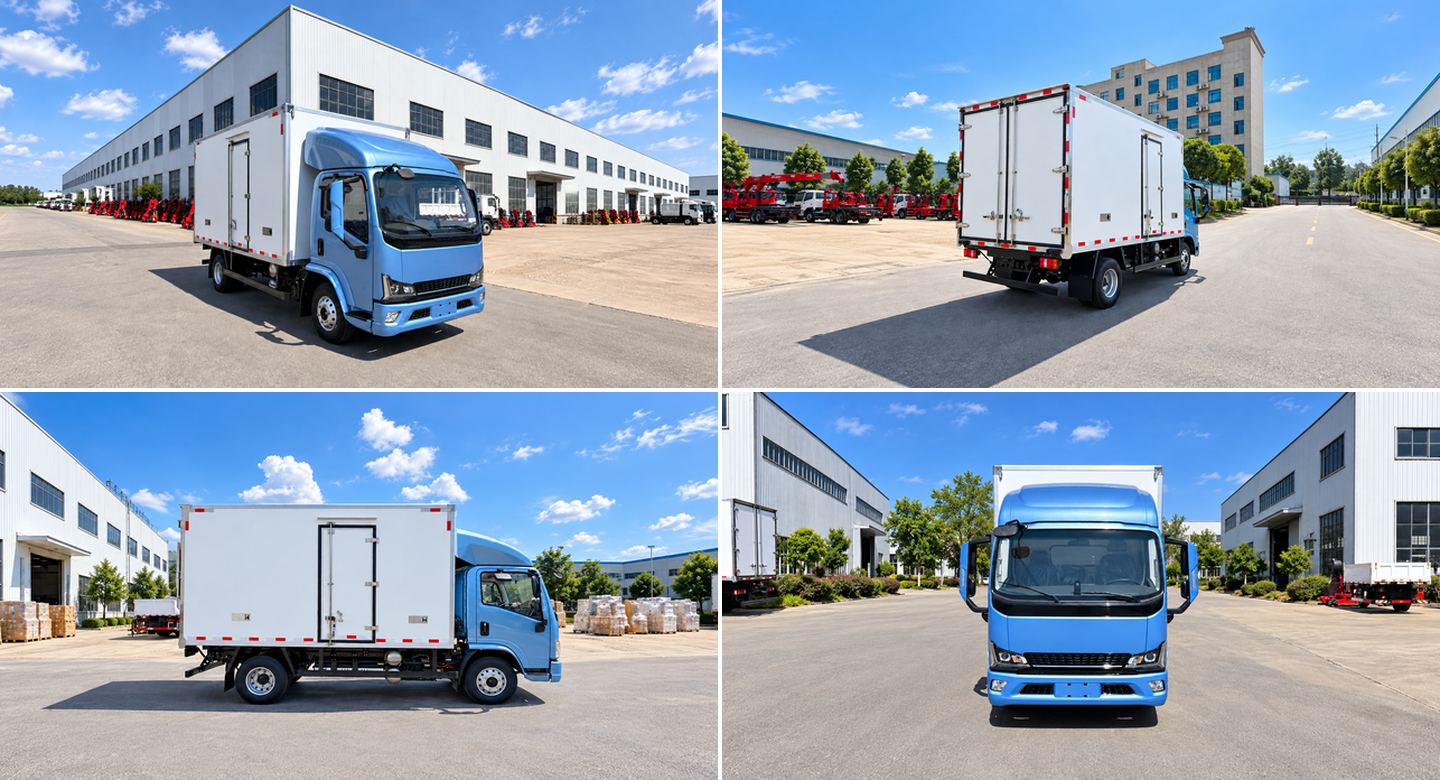

COMPLETE VEHICLE VIEW

Clear Views from Every Main Angle

Full vehicle presentation for fast product evaluation and overseas customer communication.

Cold Chain Truck

APPLICATIONS

Designed for Fresh and Frozen Goods Distribution

Fresh Food Delivery

Fruit, vegetables, dairy products and ready-to-eat food distribution.

Frozen Products

Suitable for frozen food transport with a matched refrigeration solution.

Retail and Catering

Daily distribution for supermarkets, restaurants and cold stores.

Regional Logistics

Compact 4×2 size for flexible access in urban and regional routes.

ESSENTIAL VEHICLE SPECIFICATIONS

Key Dimensions and Capacity

ITEM	SPECIFICATION
Vehicle	Weichai Blue Engine Electric Refrigerated Truck
Drive Type	4×2 rear-wheel drive
Overall Dimensions	5995 × 2260 × 3210 mm
Cargo Body Dimensions	4060 × 2100 × 2100 mm
Curb Weight	3200 kg
Payload Capacity	5000 kg
Wheelbase	3360 mm
Tyres	7.00R16LT 8PR tubeless tyres

ELECTRIC POWERTRAIN AND BRAKING

Reliable Configuration for Commercial Transport

ITEM	CONFIGURATION
Battery	BYD FinDreams 100.22 kWh battery
Electric Motor	Weichai electric motor, 120 kW / 360 N·m
Charging	Single-gun DC fast charging
Front Axle	3-ton rated front axle
Rear Axle	5-ton / 16.193 HandE maintenance-free wide-track rear axle (1660 mm)
Frame	800 × 180 mm straight-through frame
Service Braking	Air brake
Safety Braking	ABS + ASR
Chassis Protection	Carbon-steel rear underrun protection

CHASSIS AND CAB CONFIGURATION

Built for Driver Control and Everyday Reliability

ITEM	CONFIGURATION
Cab	Wide flat-roof single-row cab, 3 seats, metallic paint and driver/passenger sun visors
Steering	Multifunction steering wheel with multimedia control and cruise control
Cab Comfort	Electric A/C with electric heating and 3.5-inch color central LCD instrument display
Infotainment	AM/FM MP3 radio with Bluetooth and central locking
Lighting	Automatic halogen headlights and daytime running lights
Visibility	Integrated conventional exterior mirrors, no front lower-view mirror
New Energy System	T-Box new energy terminal and body-upfit power take-off interface
Chassis	Steel wheels, external aluminium air reservoir, 60 Ah maintenance-free battery and no spare tyre

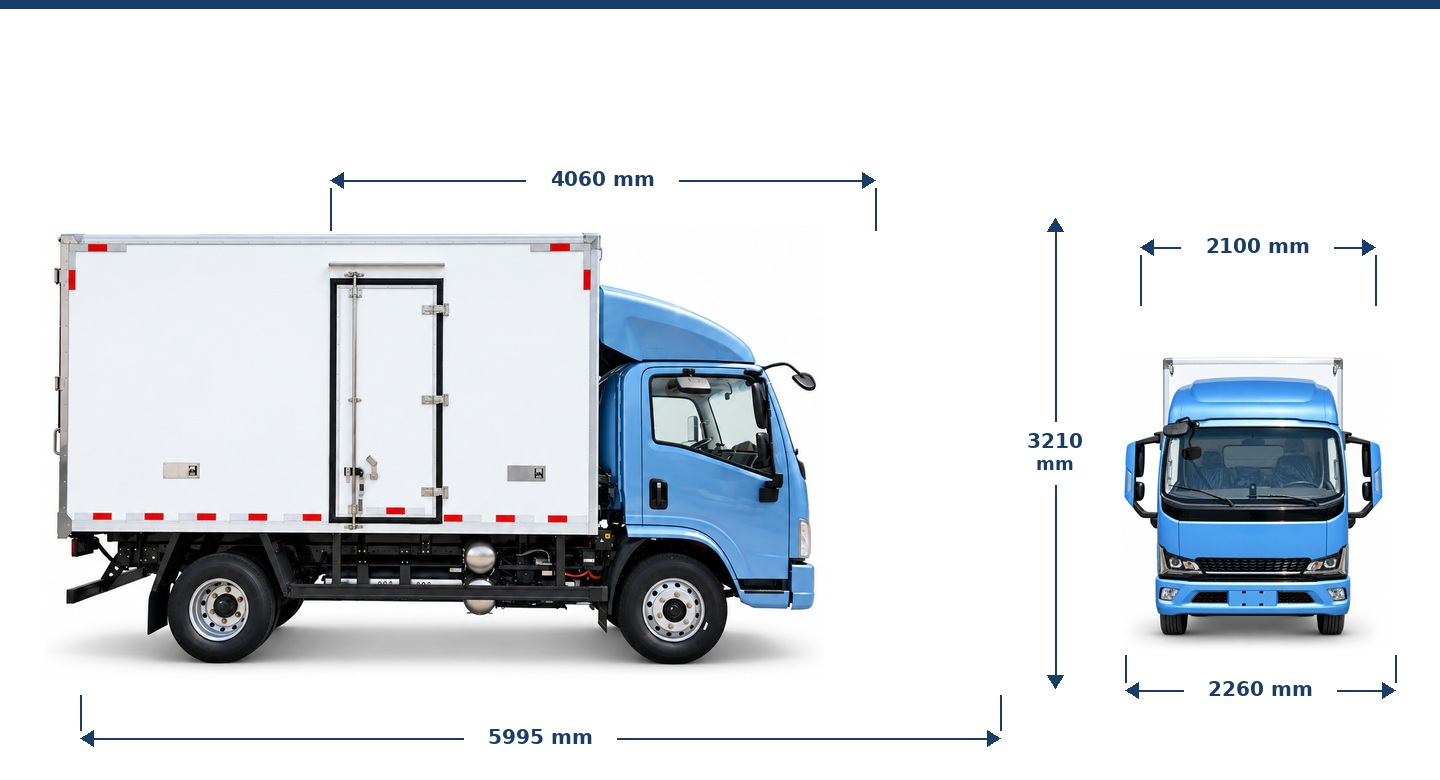

DIMENSION DRAWING

External Vehicle Dimensions

Frozen Food Truck

REFRIGERATED BODY CONFIGURATION

Flexible Configuration for Different Cold Chain Requirements

The insulated cargo body and refrigeration system can be matched to the cargo type, target temperature and local operating conditions.

Insulated Cargo Body

4.06 m box body designed to help maintain stable cargo temperature during delivery.

Refrigeration Unit

Cooling solution selected according to fresh, chilled or frozen goods requirements.

Cargo Access

Rear doors and side door arrangement can be customized for loading workflow.

Cargo Protection

Optional anti-slip floor, air chutes, interior lighting and temperature monitoring.

EXPORT SUPPORT

Clear Process from Configuration to Delivery

SERVICE	DETAIL
Configuration Confirmation	Confirm cargo type, target temperature, refrigeration unit and required options.
Production	Vehicle and refrigerated body are assembled according to the confirmed configuration.
Inspection	Vehicle appearance, key functions and refrigeration-related items are checked before delivery.
Shipping	Export packing and shipment arrangements are prepared according to the agreed destination port.
