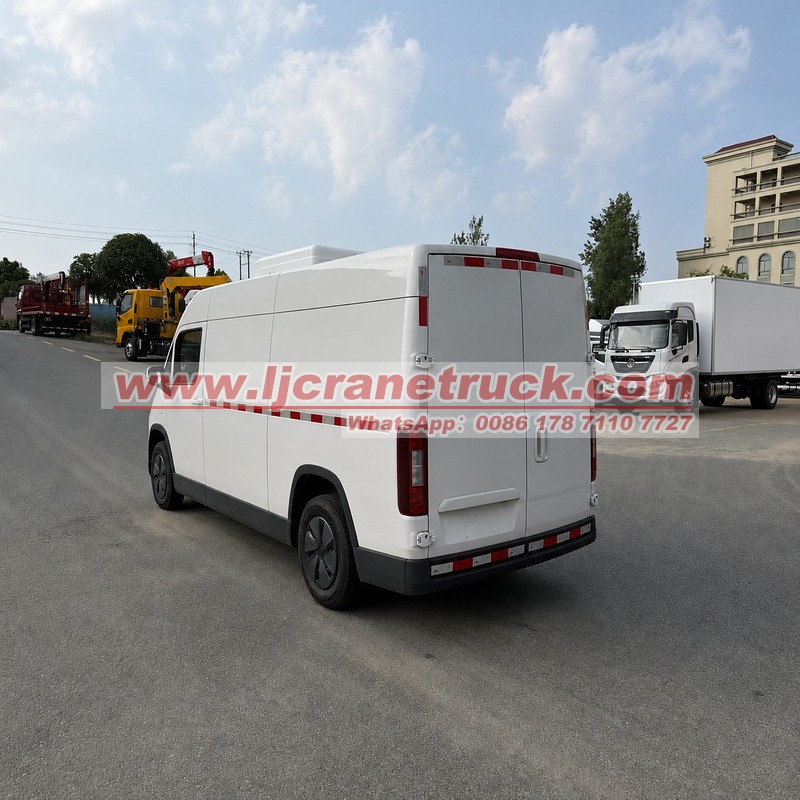

Foton high-roof electric refrigerated van is designed for urban cold-chain delivery. It offers zero-emission operation, flexible charging and reliable temperature control for fresh and frozen goods.
The insulated cargo compartment helps reduce cold-air loss and maintain a stable temperature, making it ideal for daily city distribution.
Highlights:
✅ Battery: 50.23 / 60.67 kWh or CATL 66.67 kWh
✅ Motor: 55 kW Rated, 125 kW Peak
✅ Cargo Compartment: 2560/2530 × 1510/1470 × 1430 mm
✅ Wheelbase: 3400 mm
✅ Charging: Fast & Slow Charging
✅ Safety: ABS + EBD + AEBS
✅ Configuration: A/C, Reverse Camera & Remote Key
|
FOTON VIEW i9 HIGH ROOF ELECTRIC REFRIGERATED VAN Zero-emission urban cold-chain vehicle with customizable cooling and loading systems |
||
|
3 Battery Options 50.23 / 60.67 / 66.67 kWh |
55 / 125 kW Rated / peak motor power |
Down to -18°C Frozen transport option |
PRODUCT OVERVIEW
Efficient Electric Cold Chain for Urban Delivery
A high-roof refrigerated van designed for fresh food, frozen products, dairy, seafood and pharmaceutical distribution.
|
Quiet Electric Drive Low-noise operation and zero tailpipe emissions. |
Temperature Control Chilled or frozen configurations selected by cargo type. |
|
Insulated Cargo Space Food-grade interior with easy-clean surfaces and drainage options. |
Flexible Customization Side door, standby power and temperature monitoring are configurable. |

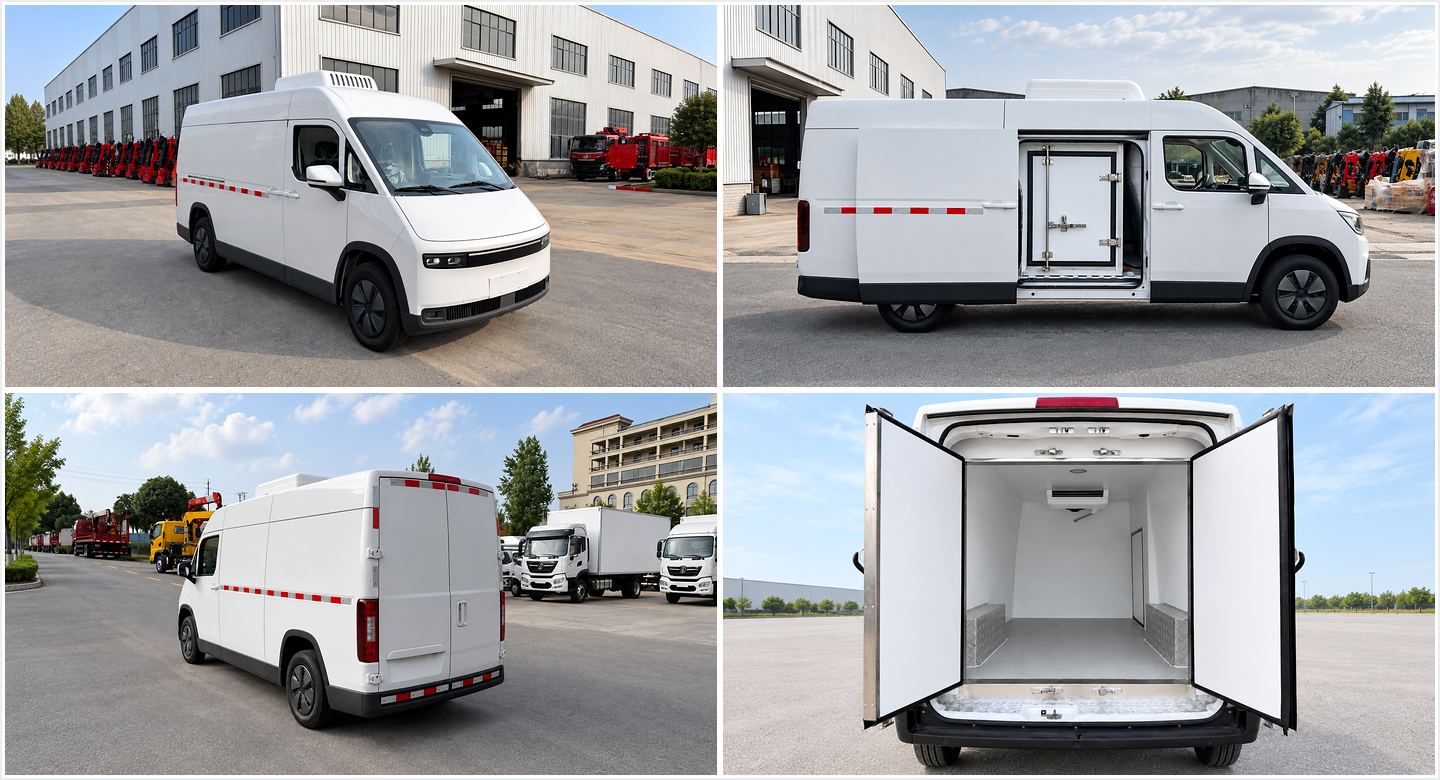

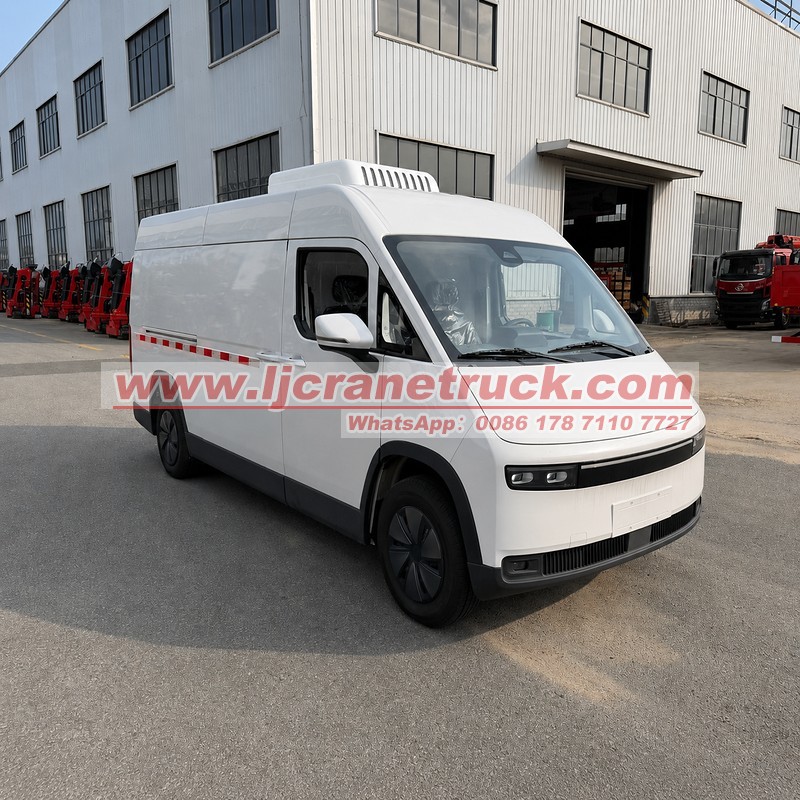

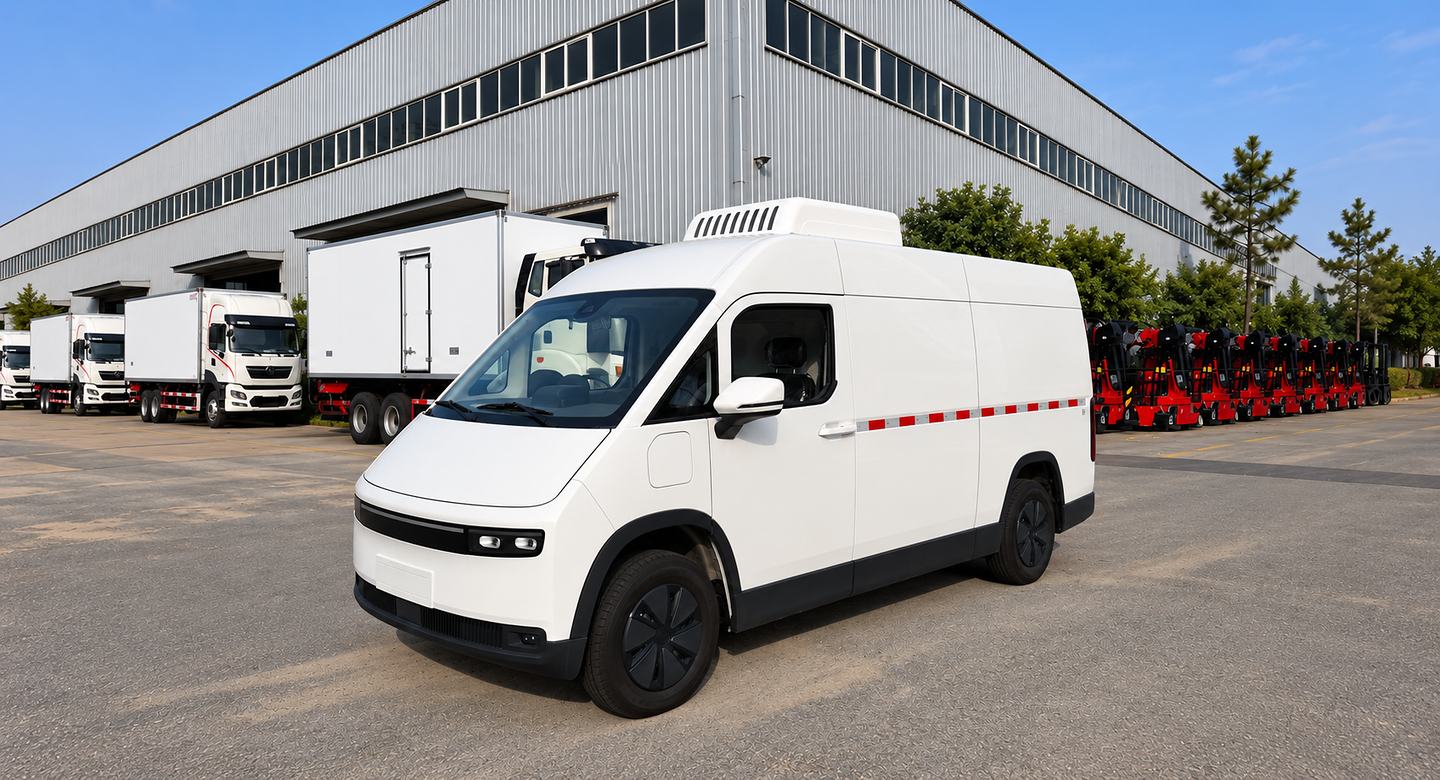

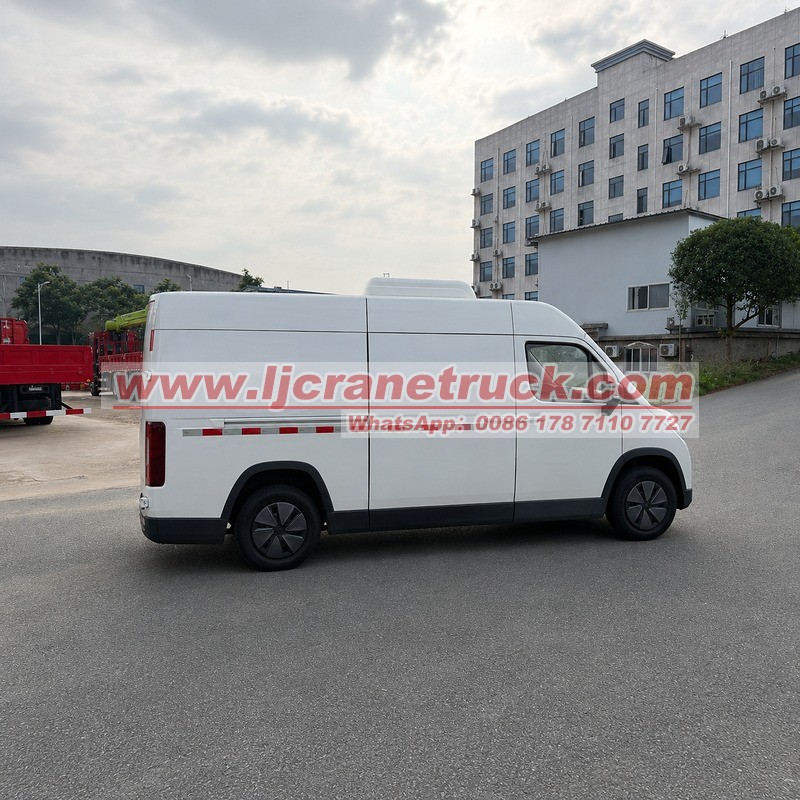

COMPLETE VEHICLE VIEWS
Clear Views from Every Main Angle
APPLICATIONS
Designed for Everyday Cold Chain Operations
Suitable for scheduled urban routes and frequent loading stops.
|
Fresh Food Fruit, vegetables and beverages |
Frozen Goods Meat, seafood and frozen food |
Pharmaceuticals Temperature-sensitive medical cargo |
Retail Delivery Stores, restaurants and warehouses |
KEY SPECIFICATIONS
Essential Vehicle Configuration Items
Reference data for the selected 66.67 kWh platform. Final export configuration is contract-specific.
|
ITEM |
REFERENCE CONFIGURATION |
|
Product |
FOTON high-roof pure electric refrigerated van |
|
Overall Dimensions |
5,195 × 1,810 × 2,160 / 2,360 / 2,400 mm |
|
Internal Cargo Dimensions |
2,560 / 2,530 × 1,510 / 1,470 × 1,430 mm |
|
Wheelbase |
3,400 mm |
|
Tyre Size |
195/75R16LT |
|
Drive Motor Model |
FTTBP125A |
|
Rated Motor Power |
55 kW |
|
Peak Motor Power |
125 kW |
VEHICLE TECHNICAL DATA
Power Battery Refrigeration and Export Configuration
|
Battery Options |
AESC 50.23 kWh or 60.67 kWh; CATL 66.67 kWh |
|
Vehicle Standard |
New-regulation model |
|
Front Doors |
Electric windows |
|
Cabin Comfort |
Front-cabin air conditioning and power steering |
|
Door Security |
Central locking and remote-control key |
|
Safety Systems |
ABS + EBD and AEBS |
|
Gear Selector |
Mercedes-style column-mounted shifter |
|
Charging Interfaces |
Fast-charging and slow-charging ports |
|
External Power Output |
220 V, 2,400 W discharge outlet |
|

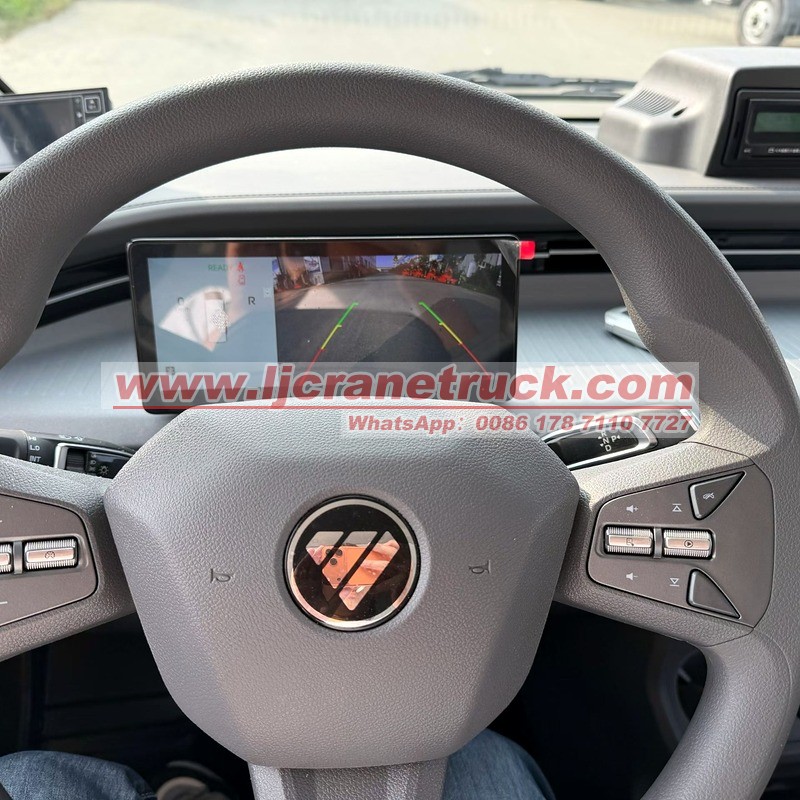

Driver Assistance |
Reversing camera |
|
Refrigeration Unit |
Independent electric cooling; chilled or frozen unit selected by application |
|
Loading Access |
Insulated side door plus wide rear double doors |

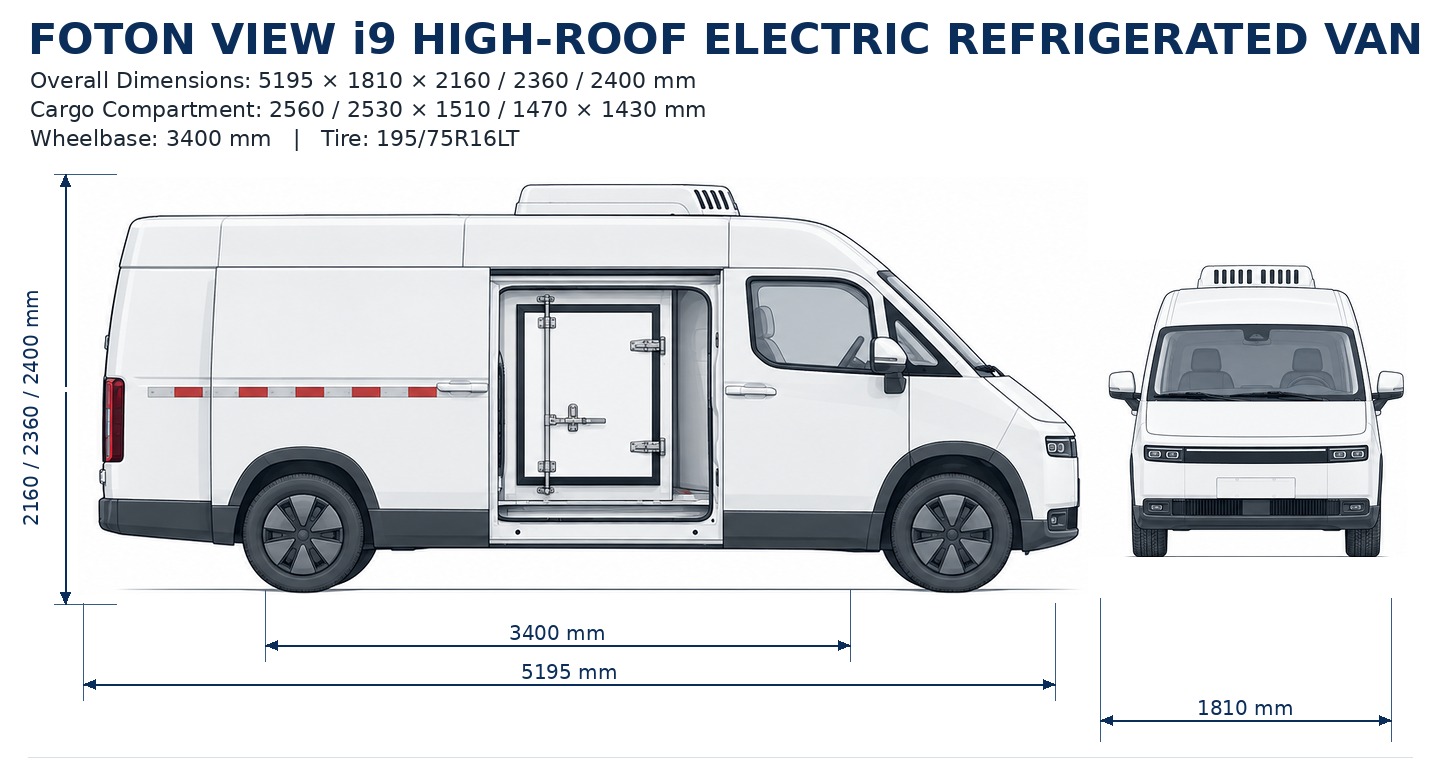

TECHNICAL DIMENSIONS
FOTON View i9 High Roof Electric Refrigerated Van
Reference dimensions. The approved production drawing prevails.

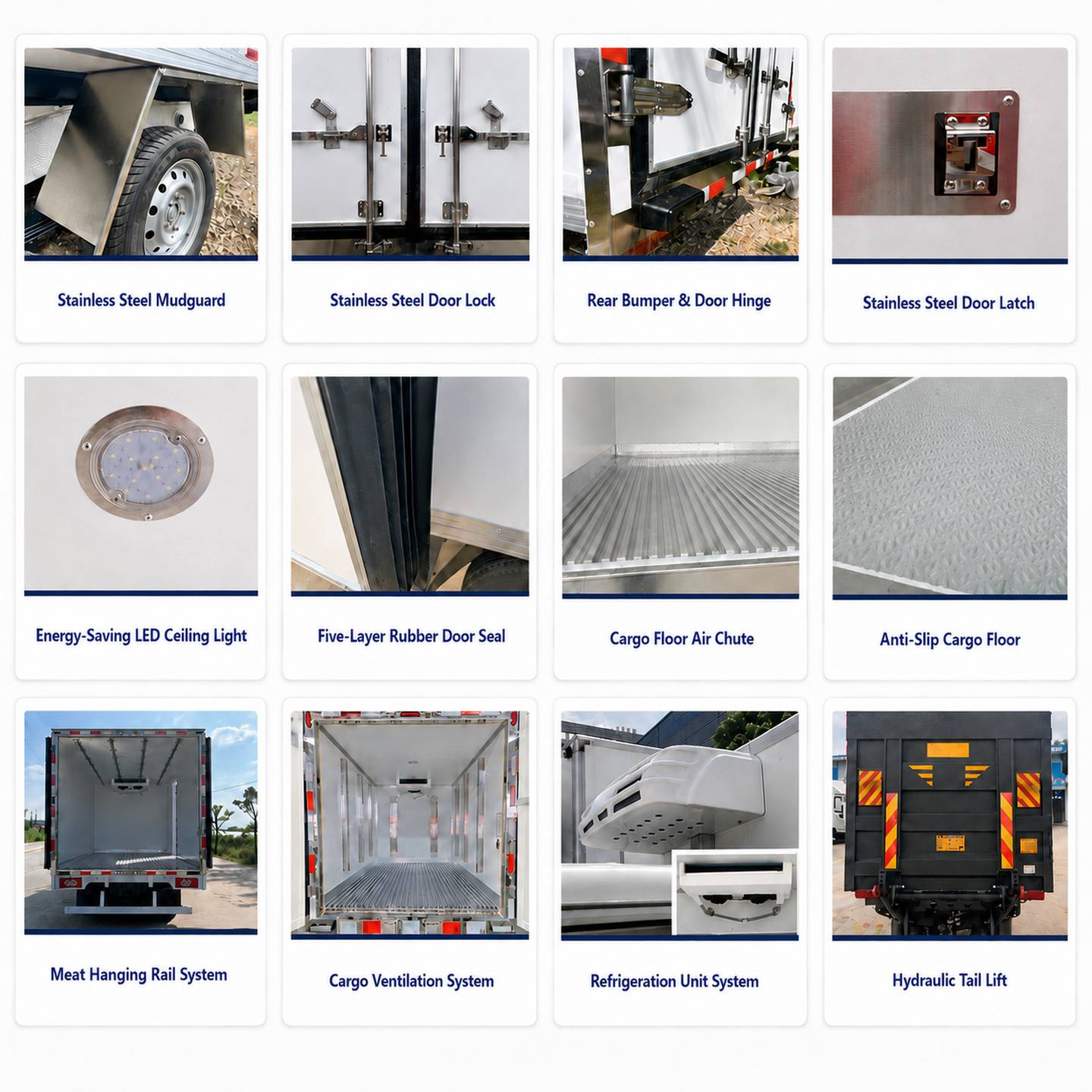

BODY DETAILS
Insulated Cargo Body and Optional Equipment
Durable sealing, easy-clean surfaces and practical loading options support daily cold-chain operation.
REFRIGERATION SYSTEM
Cooling Performance Selected for Your Cargo
|
Electric Unit Vehicle-powered independent refrigeration |
Temperature Range Chilled or frozen down to -18°C |
Insulation High-density polyurethane body |
|
Interior Finish Food-grade FRP panels and LED lighting |
Air Distribution Optional air chute and ventilation system |
Monitoring Optional recorder and remote temperature monitoring |

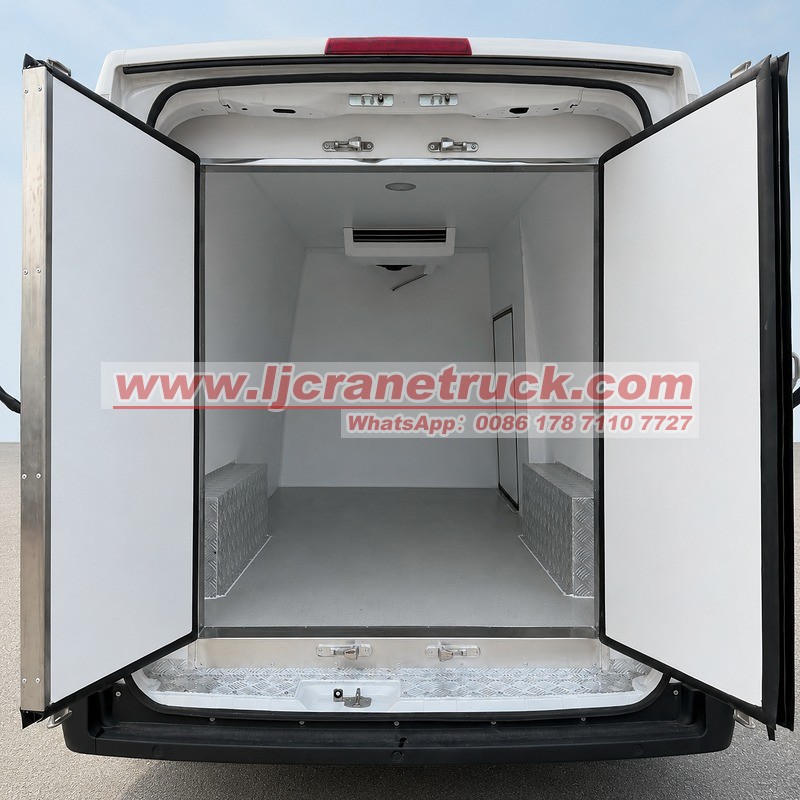

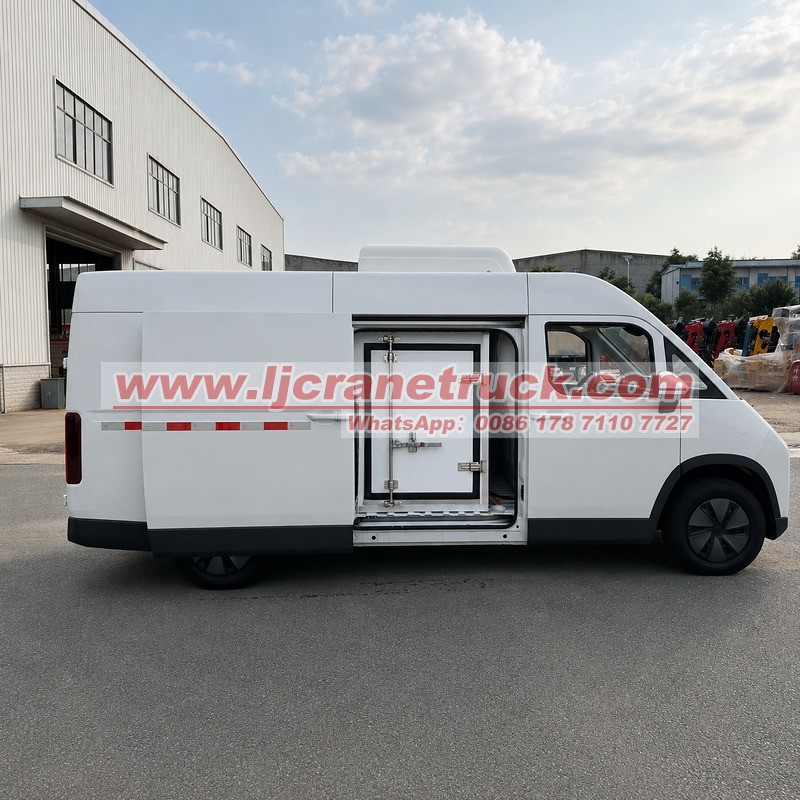

DOOR CONFIGURATION
Practical Side and Rear Loading Access
The insulated side access door supports frequent delivery stops, while the wide rear double doors provide clear access to the refrigerated cargo compartment and simplify daily loading.
QUOTATION TERMS
Clear Export Offer and Order Confirmation
Commercial terms are finalized after temperature, payload, refrigeration unit, charging standard and destination port are confirmed.
|
TERM |
DETAIL |
|
Price |
Latest FOB China port or CIF destination port quotation on request |
|
Payment |
T/T 30% deposit and 70% balance before shipment or factory release |
|
Lead Time |
Normally 20–30 working days after deposit and final specification approval |
|
Warranty |
12 months from shipment, subject to the signed contract and component terms |
|
Shipping |
FOB or CIF; destination port and freight must be confirmed |
|
Documents |
Commercial invoice, packing list and standard export documents |
|
Validity |
As stated on the formal Proforma Invoice |
GLOBAL AFTER SALES SUPPORT
Support That Continues After Delivery
Clear warranty guidance, technical communication and spare-parts support help customers keep vehicles operating.
|
12 Month Warranty Coverage follows the signed contract. |
24 Hour Technical Support Remote diagnosis and operating guidance. |
Free Operation Training Online training and manuals. |
Global Spare Parts Supply Wear parts and component support. |
Multi Brand Support Chassis and refrigeration coordination. |
SERVICE PROCESS
Fast Clear and Practical Support
|
01 Send Details Provide VIN, photos and fault information. |
02 Remote Diagnosis Engineers check the system and advise. |
03 Parts Confirmation Required parts are identified clearly. |
04 Follow Up Support continues until operation returns. |
