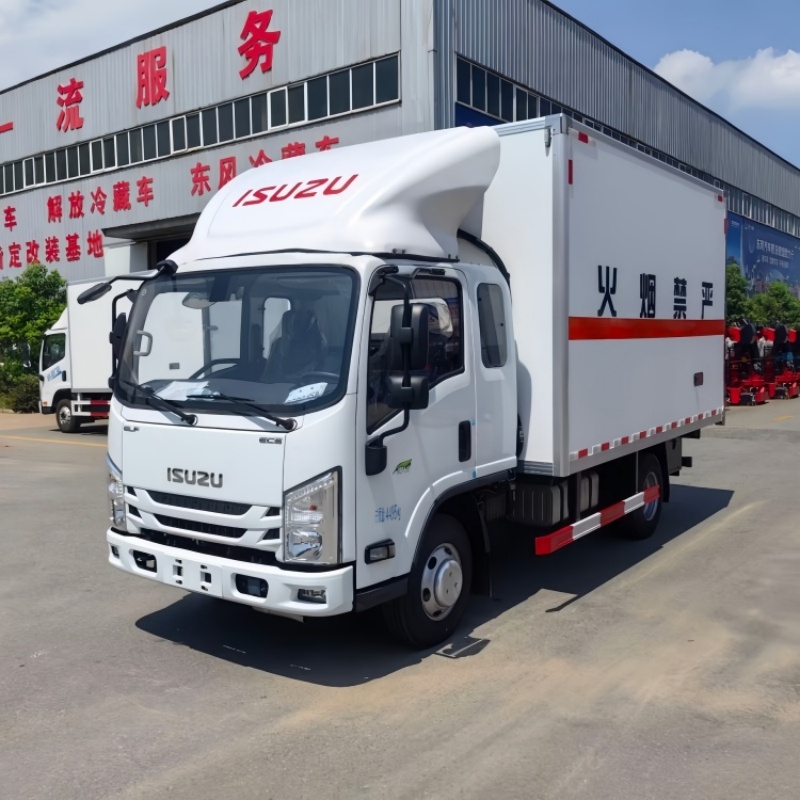

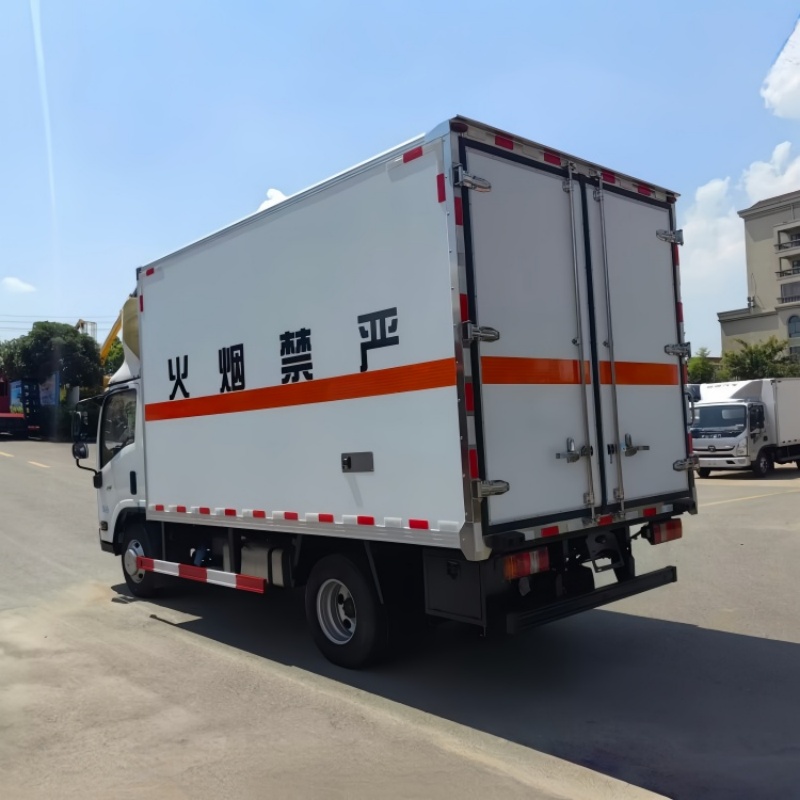

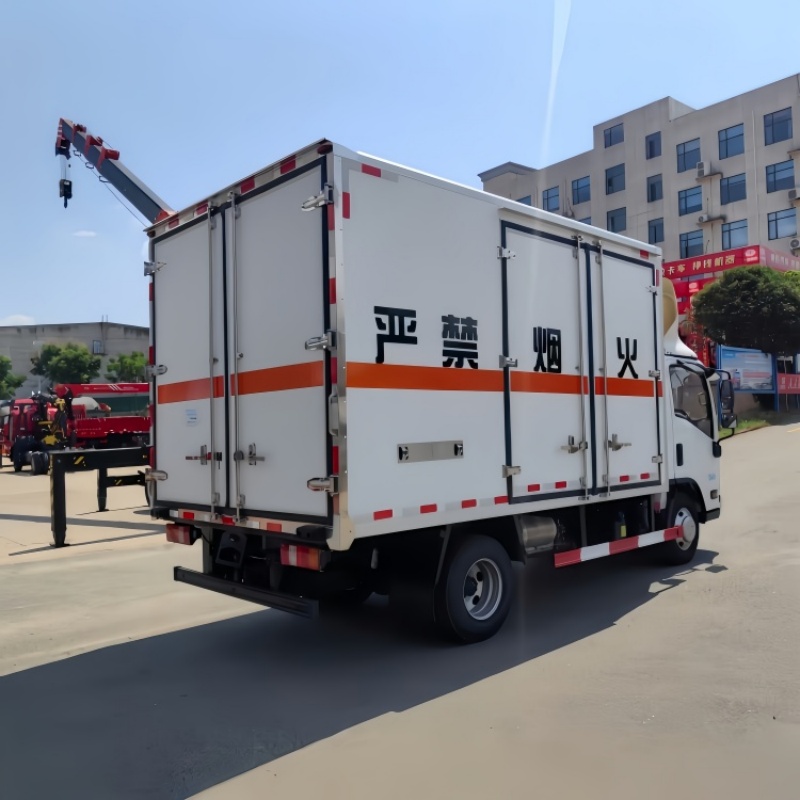

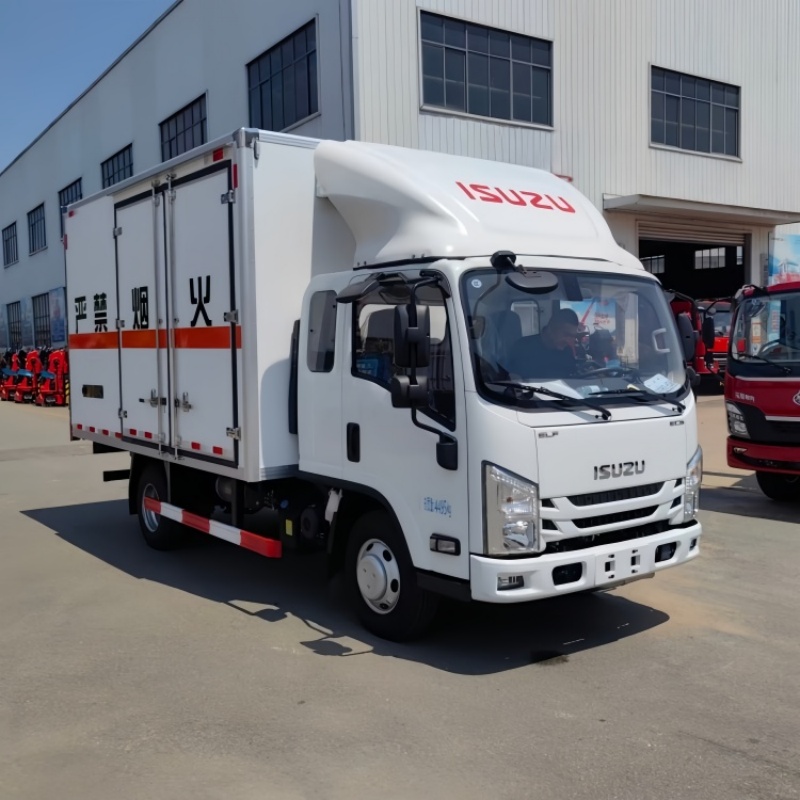

4x2 Jiangxi Isuzu food refrigerated transport truck
Your trusted food cold chain logistics solution
Applications
Jiangxi Isuzu food refrigerated transport trucks for the distribution of fresh fruits and vegetables, frozen meat, cut meat products, seafood, aquatic products, frozen fish and shrimp cold chain, as well as cold chain distribution and transportation of dairy products, milk, yogurt and cheese
- Food cold chain transportation: frozen goods, fresh-keeping products
- Pharmaceutical cold chain transportation: vaccines, reagents, blood plasma, biological preparations, medicines requiring low-temperature storage (special for constant temperature / low temperature)
- Catering and chain distribution: semi-finished products from central kitchens, ingredient delivery to stores, raw materials for cold chain takeaway
- E-commerce and supermarket distribution: supermarket cold fresh cabinet restocking, fresh food e-commerce home delivery, cold chain express delivery
- Special item transportation: flowers, precision chemical raw materials, electronic products requiring low-temperature preservation, etc.
Why Choose Our Jiangxi Isuzu Frozen Food Transport Trucks?
- Cabinet dimensions: 4050x2100x2100 mm
- Cabinet material: Internal and external fiberglass + polyurethane insulation layer
- Gearbox: 5-speed gearbox
- Power system: Jiangxi Isuzu JX4D30 series 115 horsepower
- Refrigeration unit: Front-mounted / independent unit (optional)
- Temperature range: Adjustable from -18℃ to +15℃
- Optional configurations: Stainless steel lining, ventilation channels, temperature and humidity recorder
- Efficient operation: Equipped with 220V external power supply (can be used as a temporary cold storage)
- Comfortable control: Adopts wide-body single-row cab, providing safer and more comfortable operation during long-time work
Comprehensive Safety Protection
- External power supply: Even when the chassis engine is turned off, the external power supply can be used as a temporary cold storage.
- Single side door: Makes loading and unloading goods more convenient and efficient.
- Automatic leveling: The temperature of the refrigeration unit can be adjusted as needed.
Technical Specifications
|
Truck specifications
|
|
Vehicle Name
|
refrigerated truck
|
|
outline dimension （mm）
|
5998X2260X3380
|
|
Internal dimensions of the chamber (mm)
|
4050X2100X2200
|
|
temperature range （ºC）
|
-18°~5° (adjustable)
|
|
Vehicle type
|
Left/Right steering wheel (optional)
|
|
total weight （Kg）
|
4495
|
|
pay load （Kg）
|
1-5Ton
|
|
Vehicle weight (Kg)
|
3200
|
|
Cabin seat
|
3
|
|
wheel base （mm）
|
3360
|
|
Maximum speed (Km/h)
|
89
|
|
Chassis parameters
|
|
Chassis name
|
Jiangxi Isuzu
|
|
effluent standard
|
Euro 2/3/4/5
|
|
Fuel type
|
diesel power
|
|
tyre size
|
7.00R16LT 8PR
|
|
Engine name
|
Jiangxi Isuzu
|
|
power （hp）
|
115horsepower
|
|
displacement （ml）
|
2.5
|
|
Video
Drawing
Main Components
-
Meat hook box
Optional installation of different meat hook frames to meet the transportation needs of various types of meat.
-
Non-slip base plate
Prevent goods from sliding and tipping over, suitable for forklift and pallet operations.
-
Polyester fiber insulation board
Isolate heat transfer between the inside and outside of the carriage, maintain low temperature, reduce the load on the refrigeration unit, ensure the cargo does not thaw, and save fuel and electricity.
-
Refrigeration unit
Refrigeration, temperature control and constant temperature inside the carriage, freezing or preserving the cargo, maintaining the set low temperature throughout the whole process
-
Ventilation slot
Allow the cold air to circulate at the bottom and around the goods to ensure uniform temperature throughout the box, preventing thawing or freezing damage.
-
Stainless steel lock parts
It is responsible for door locking, sealing, rust prevention and durability, serving as a key component for ensuring safety and cold retention of refrigerated trucks.
Reliable Warranty & Global Support
- 12-month warranty: vehicle warranty (except for vulnerable parts), giving you complete peace of mind.
- Instant technical support: 7×24-hour technical response to resolve faults immediately.
- Free operation training: on-site or remote training provided for refrigeration units, safety regulations and equipment operation.
- Global parts supply: fast delivery of original parts to minimize downtime.
- Multi-brand equipment support: professional diagnostic guidance is also available for your existing equipment of other brands.
Frequently Asked Questions
Q: What is the lead time for a customized 9-cubic-meter refrigerated truck?
A: Standard configurations are usually ready in 15–25 days. Custom painting or specific emission requirements may take up to 35 days.
Q: Does the truck come with a certification for international standards?
A: Yes, our aerial work platforms comply with ISO and CE standards, and the ISUZU chassis meets global quality benchmarks.
Q: Can this truck operate in narrow city streets?
A: Absolutely. The ISUZU 4x2 chassis is designed with a compact turning radius, making it highly maneuverable for urban maintenance.
Q: What are your shipping conditions?
A:Normally,we transport trucks via roll-on/roll-off ships, bulk carriers, and containers. Spare parts are packed in wooden cases and transported by container.
Q: Can you fully customize according to my requirements?
A: Yes. We have a professional R&D team and can accurately produce products according to your requirements.
