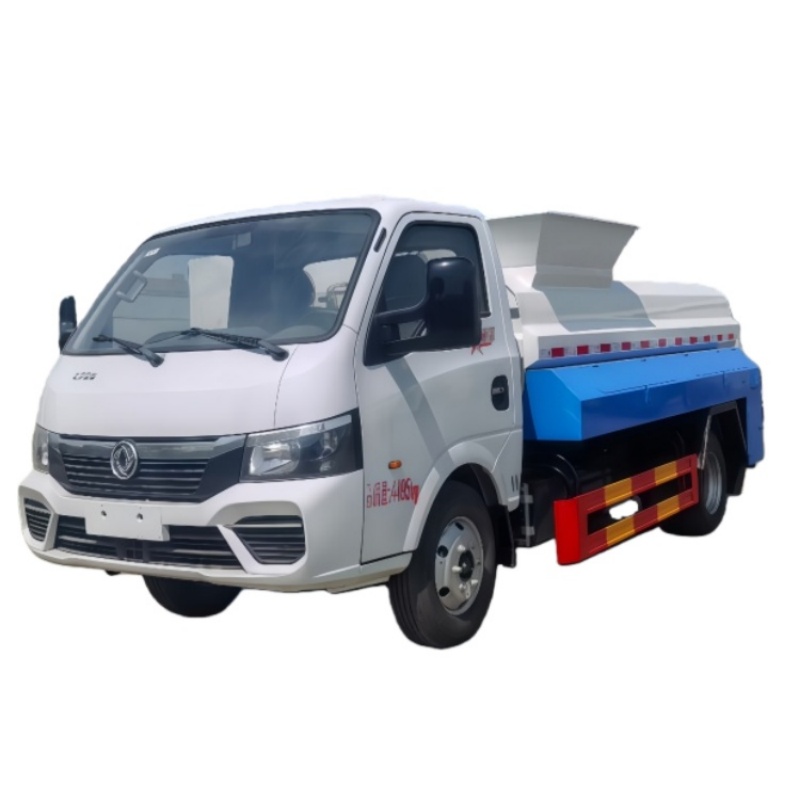

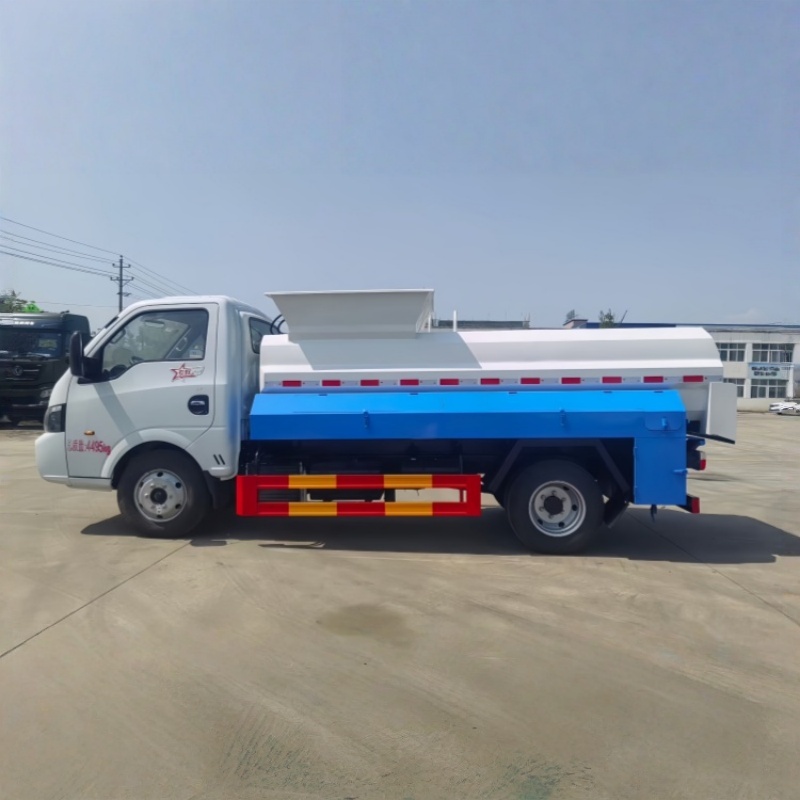

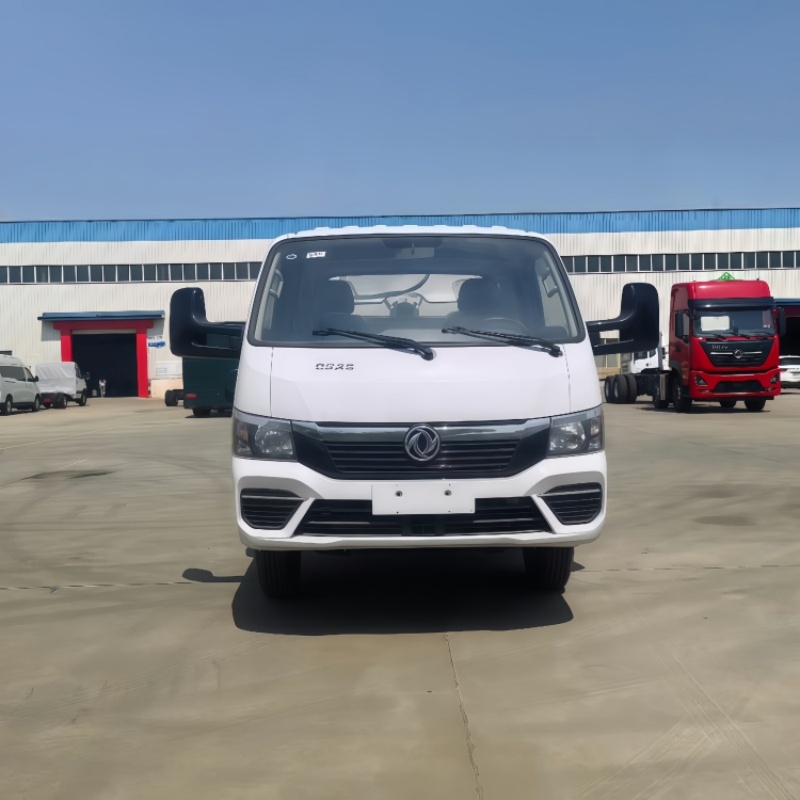

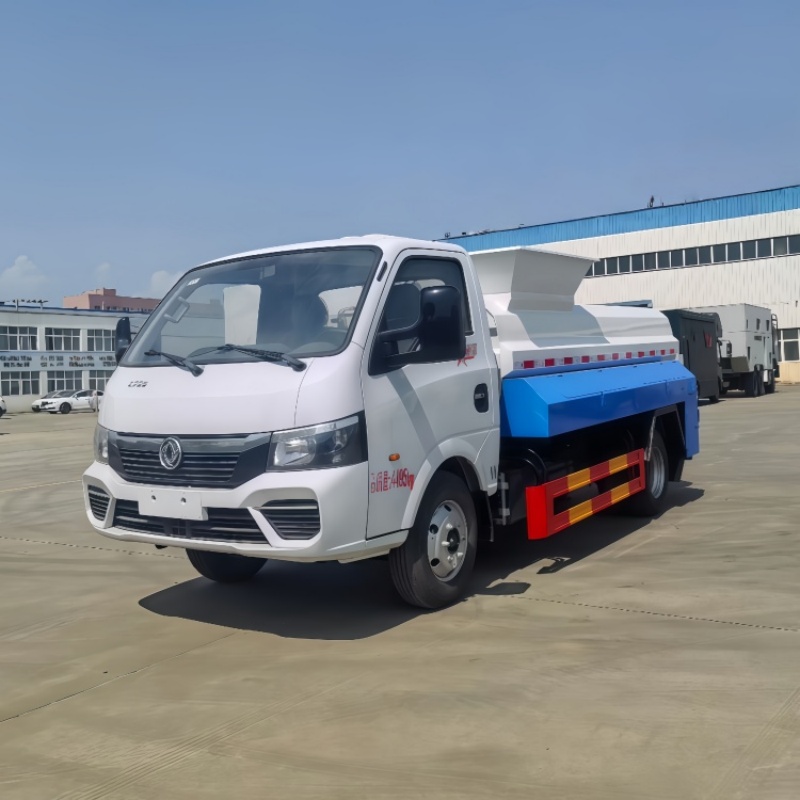

DFL 4200L grease transfer truck

Name: DFL 4200L grease transfer truck
Availability: InStock

DFL oil tanker is an 4×2 oil tanker built on the special chassis of DFL for hazardous chemicals. It features large volume, strong power, high safety and compliant hazardous chemicals transportation, and is suitable for the transportation of Class III dangerous goods such as gasoline, diesel and kerosene.

Highlights:

✅ Tank material: Q710 high-strength steel/304 stainless steel (food grade / corrosion resistant)

✅ Chassis: Original DFL chassis, 4×2 (left-hand drive / right-hand drive versions available)

✅ Versatility: Capable of transporting Animal fats, edible oils, oils for food processing and other oil products; dual compartments optional, multi-purpose in one unit

✅ Safety Configurations: Dual-circuit braking system, emergency shut-off device, and anti-overflow system to reduce transportation risks

Inquire Now

DFL 4200L edibe oil transport vehicle, suitable for Oil refinery distribution

Your Realiable edibe oil transport vehicleSolutions

Applications

This DFL4.2-cubic-meter Edible Oil Transport Vehicle is a specialized liquid transportation unit designed for the safe and hygienic delivery of edible oils and food-grade liquids. It features a food-grade stainless steel tank body, ensuring no pollution to the transported goods during long-distance transportation or distribution. Compliant with national food safety standards, it is the ideal choice for enterprises in the grease and food processing industries.

Food Processing Enterprises: Delivers edible oil to beverage factories, pastry shops, and catering chains.
Grain & Oil Industry: Transports raw and refined vegetable/animal oils between oil refineries, warehouses, and wholesale markets.
Logistics & Distribution: Handles bulk transportation and secondary distribution of non-hazardous industrial oils.
International Trade: Suitable for export to regions with demand for food-grade liquid transport equipment.

3. Key Product Features

Why choose our DFL 4200L fuel tanker truck?

Strong & Reliable Brand: DFL is one of the most famous and trusted heavy-duty truck brands in the global market
Lightweight Aluminum Alloy Tank: The tank body is made of high-strength aluminum alloy, which is lighter, corrosion-resistant, and durable
Full Safety System for Dangerous Goods: Equipped with complete safety devices to meet international transportation standards
Powerful Engine for Tough Roads: DFL spare parts are widely available worldwide, with low maintenance cost and convenient repair
Compliant & Customizable: We can configure the truck according to your local road regulations, emission standards (Euro 2/Euro 3/Euro 5), and voltage requirements. Stable quality, easy registration in your country.

Comprehensive Safety Protection

Fire & Explosion Protection: Front exhaust pipe with spark arrestor，fire extinguishers, fire hoods, and anti-explosion electric systems
Standard Warning Signs: Reflective tapes, dangerous goods signs，warning lights. warning lights.Fully meets international transportation safety standards.
Anti-static System: Effectively eliminates static electricity generated during transportation and loading/unloading to avoid fire or explosion.

Technical Specifications

Category	Item	Unit	Data
Overall Dimensions	Length	mm	5995
	Width	mm	2190
	Height	mm	2650
	Rated Passengers	Persons	2
	Wheelbase	mm	3200
	Tires	/	6.50R16
Main Performance	Gross Mass	kg	4495
	Rated Load	kg	1700
	Tank Volume	m³	4.2
	Tank Thickness	mm	6
	Tank material	/	304/316L food-grade stainless steel
	Medium	/	Waste oil, waste grease, flowable oil
	Compartment Design	/	1
	Head Shape	/	elliptical head
	Oil pump model	/	60-30
	Flow Rate	m³/h	30
	Oil suction height	m	≤4

Video

Drawing

Main Components

Oil tank truck oil pump

It is the core oil delivery component for special vehicles such as tank trucks, refueling trucks and liquid tank trucks.
Fire extinguisher
Mandatory safety devices for tank trucks to ensure the safety of personnel and vehicles
Manhole cover assembly on the top of the tank body

It provides a passage for personnel to enter the tank for maintenance and cleaning, and is sealed and locked under normal conditions to prevent oil leakage and oil gas volatilization.

Static Grounding Alarm
Eliminate static electricity, prevent explosions and fires
Bottom operation box of the refueling truck
Oil loading and unloading metering system and oil hose reel
Oil loading and unloading valve manifold

Multi-warehouse management, secure isolation and anti-leakage, fast loading and unloading interfaces

Reliable Warranty & Global Support

12-Month Warranty: Full vehicle coverage (excluding wear parts) for your peace of mind.
Instant Technical Support: 24/7 technical feedback with immediate solutions for any fault.
Free Operator Training: On-site or remote training on hydraulics, safety, and operation.
Global Parts Supply: Fast delivery of DFL and genuine parts to minimize downtime.
Multi-Brand Support: Professional diagnostic guidance even for your existing fleet of other brands.

Frequently Asked Questions

Q: What is the delivery time for a customized 4.2-cubic-meter fuel tanker truck?

A: Standard configurations are usually ready in 15–25 days. Custom painting or specific emission requirements may take up to 35 days.

Q: Does the truck come with a certification for international standards?

A: Yes, our The oil tanker truck complies with ISO and CE standards, and the DFL chassis meets global quality benchmarks.

Q: Can this truck operate in narrow city streets?

A: Yes, it depends on the specific model, dimensions, and turning radius of the truck

Q: What are your shipping conditions?

A:Normally,we transport trucks via roll-on/roll-off ships, bulk carriers, and containers. Spare parts are packed in wooden cases and transported by container.

Q: Can you fully customize according to my requirements?

A: Yes. We have a professional R&D team and can accurately produce products according to your requirements.
