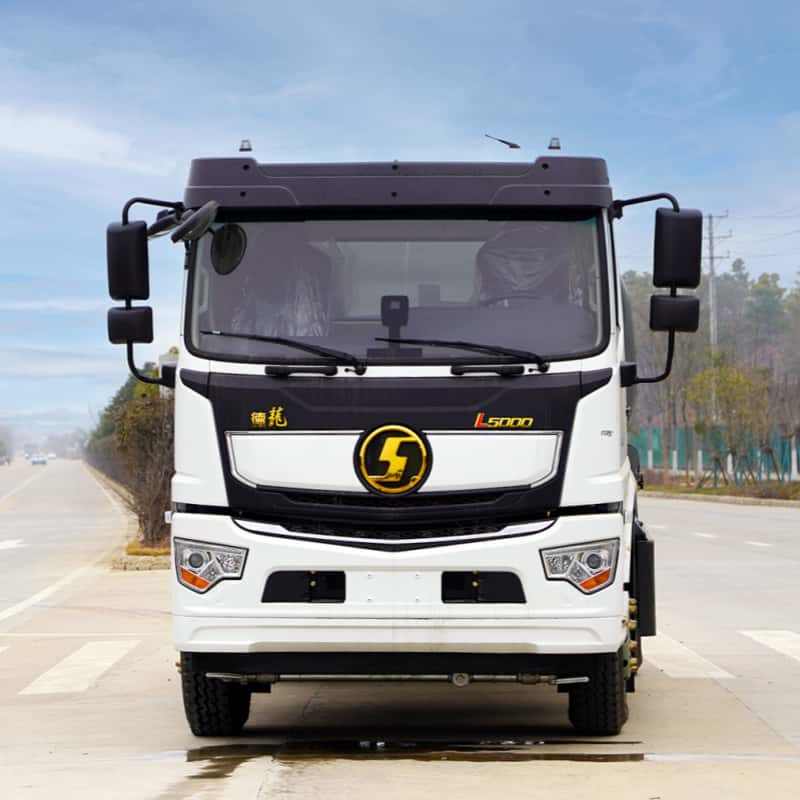

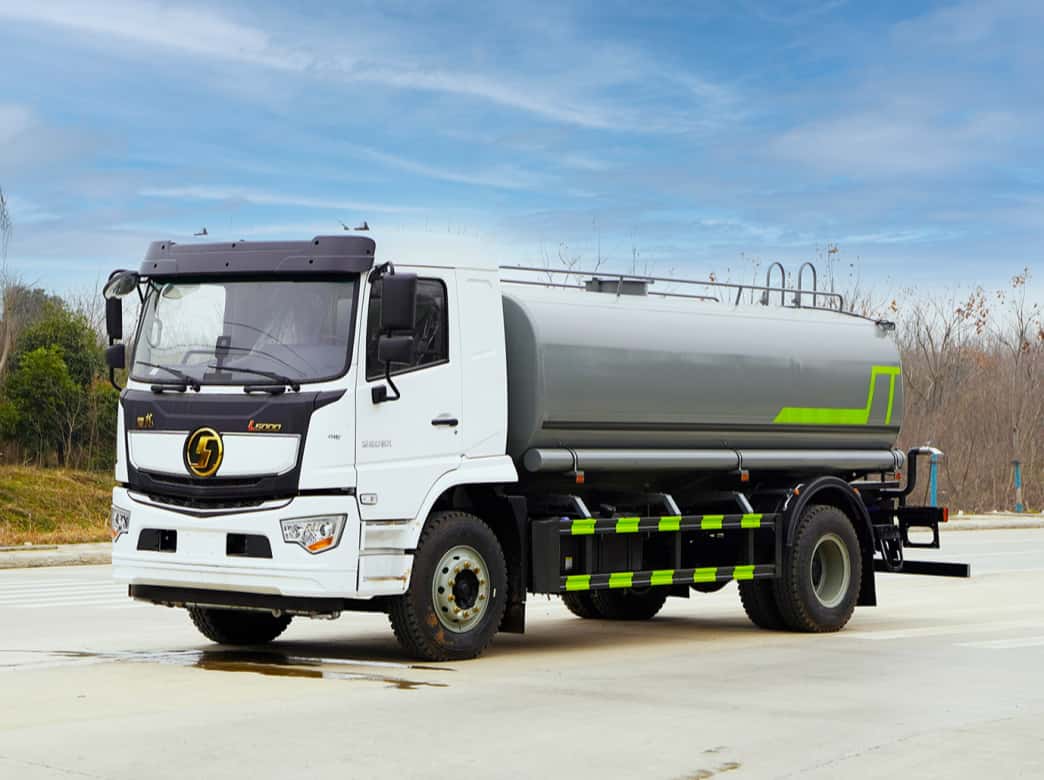

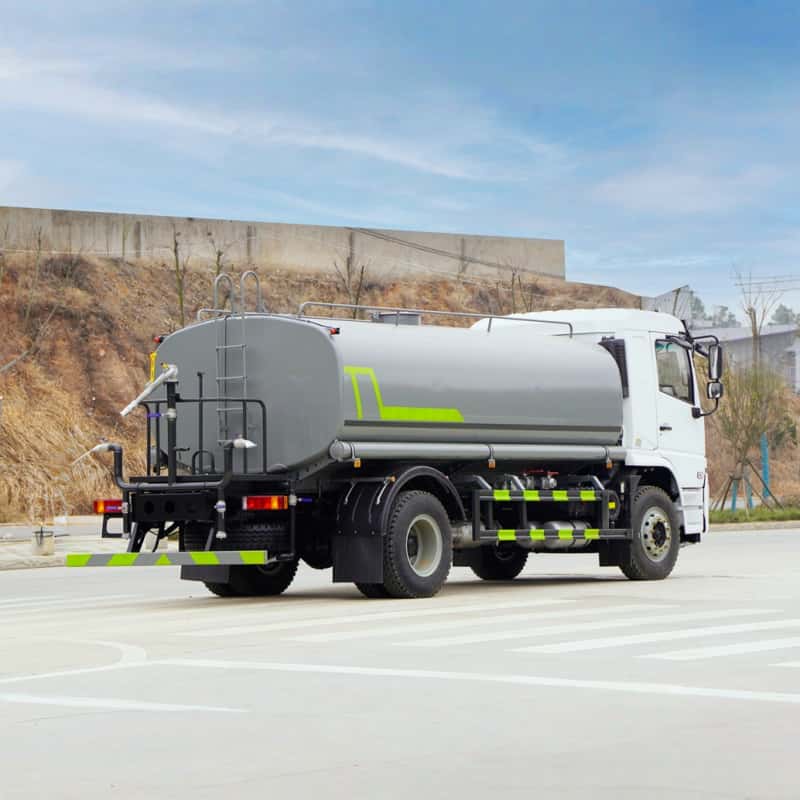

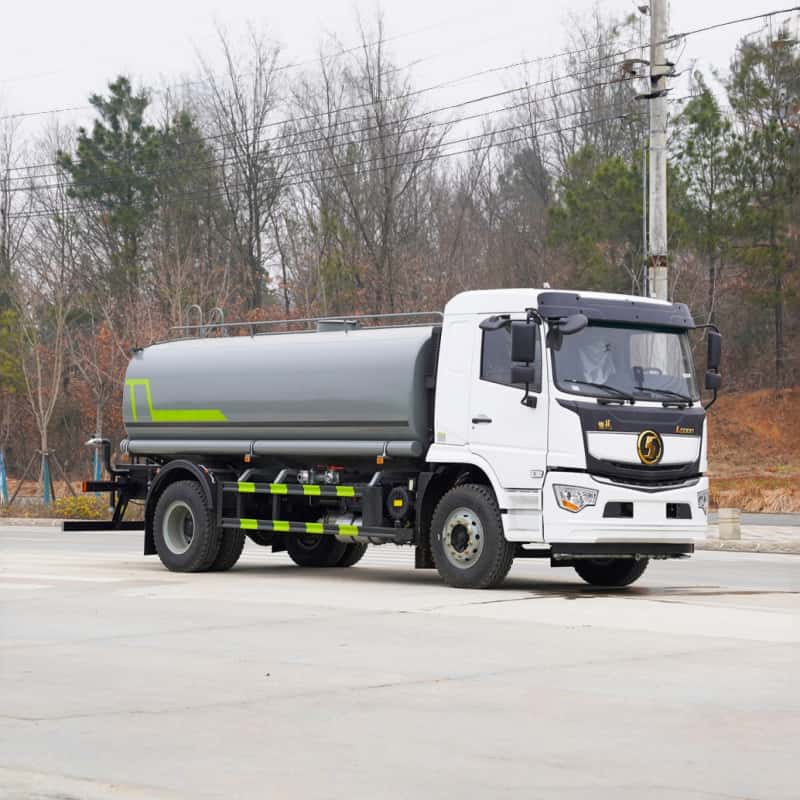

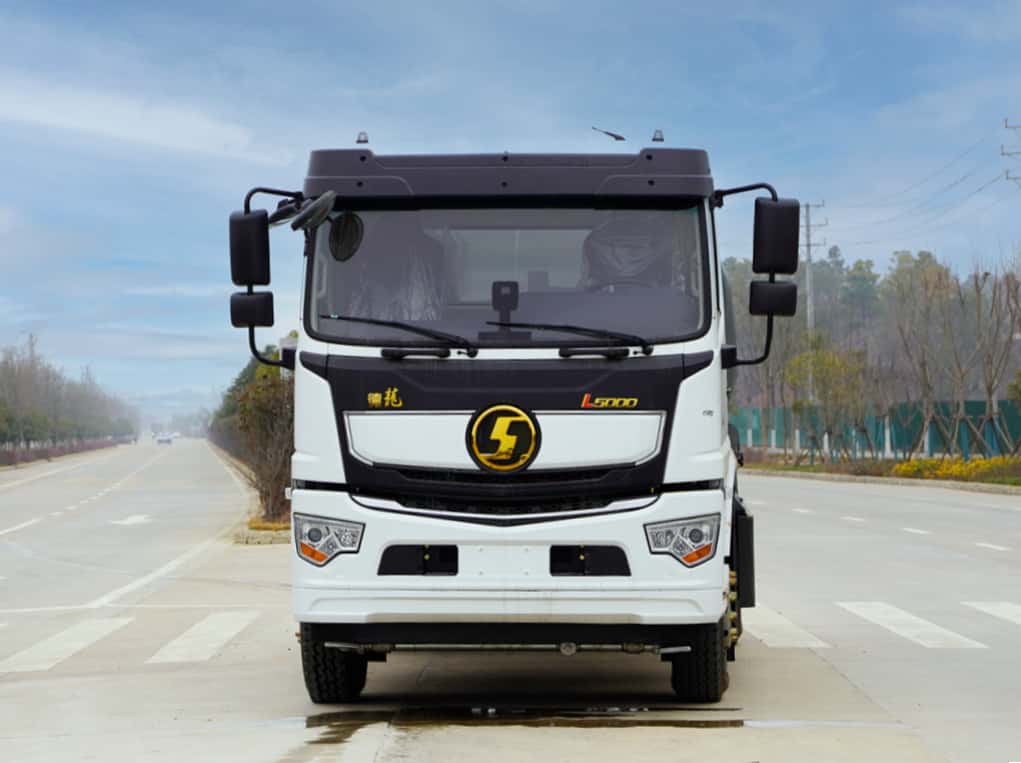

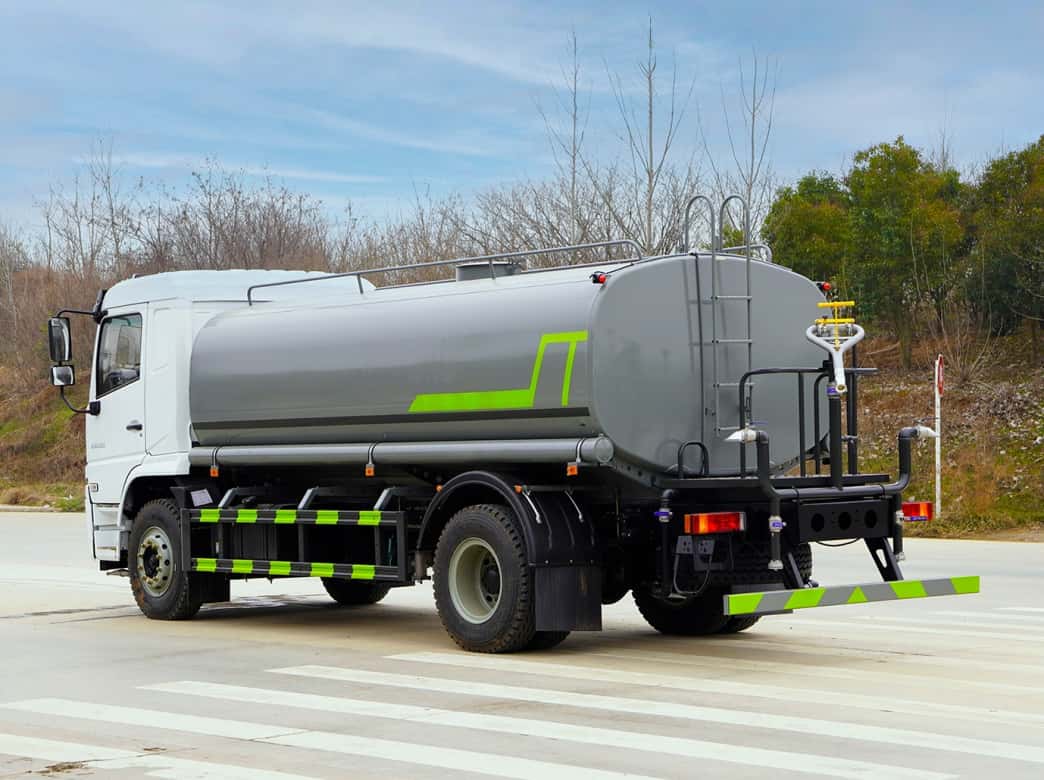

Shacman 12000L sprinkler truck

Name: Shacman 12000L sprinkler truck
Availability: InStock

A sprinkler truck, also known as a greening sprinkler truck or multi-purpose sprinkler truck, is a special sanitation vehicle equipped with devices such as water pumps, water tanks, pipelines and nozzles on the basis of a Class II chassis. It is mainly used for road sprinkling, dust reduction, landscaping irrigation, emergency fire water supply, construction site dust suppression and other purposes

Highlights:

✅ Water tank volume: 12000L

✅ Chassis: Original Shacman 4x2(left/right hand drive available)

✅ Spray width: Standard operation: ≥15 m

✅ Safety: Valve self-locking & anti-misoperation

Inquire Now

Shacman 12000L sprinkler truck is mainly used for road sprinkling and greening irrigation

Your trusted sanitation operation solutions

Applications

This Shacman sprinkler truck is mainly used in scenarios such as municipal sanitation, landscaping, construction sites, ports, airports, heavy dust suppression in mines, temporary fire fighting, drought relief water transportation, and drinking water transportation.

Municipal maintenance: road sprinkling for dust reduction and cooling
Construction sites: demolition / dust reduction during construction, muck truck washing
Landscaping: irrigation of parks and green belts
Emergency services: temporary fire fighting, drought relief water transportation, drinking water transportation

Why Choose Our Shacman 12000L Water Sprinkler Truck?

Original chassis with reliable quality: Equipped with an original Shacman chassis, the engine, gearbox and rear axle are all of original quality, featuring low failure rate, durability, fuel efficiency and high attendance rate, bringing more peace of mind for long-term use.
Special sprinkler water pump: Equipped with a large-flow self-priming pump, it delivers sufficient front flushing width, uniform rear sprinkling and long water cannon range. It can be used for road washing, dust suppression, greening irrigation and emergency fire fighting, with higher efficiency.
Durable and solid tank body: The tank is made of thickened high-quality carbon steel with built-in wave-proof plates, smooth and anti-corrosion welding seams, ensuring stable driving without rollover, longer service life and lower after-sales maintenance costs.
Multi-purpose in one vehicle: Integrates road sprinkling, pavement washing, greening spraying, dust suppression and cooling, and emergency fire fighting. It is suitable for municipal sanitation, construction sites, properties and gardens, with high cost performance.
Safety: Standardly equipped with ABS, air brakes, anti-slip operating platforms, safety guardrails and reflective signs, ensuring stable driving, safe access to the tank body and more guaranteed operation.

Comprehensive Safety Protection

Water pump operation: The chassis engine runs normally, and the emergency cut-off valve of the water pump is manually controlled to achieve emergency shutdown
Risk of rollover: anti-rolling fins + speed limit + smooth steering + avoiding unilateral water accumulation
Rotation: The high-pressure water cannon is equipped with locking and 360° rotation limit functions.

Technical Specifications

vehicle parameters	Tank volume	L	12000
	External dimensions (length × width × height)	mm	9000×2550×3450
	wheel base	mm	5300
	gross mass	kg	18000
	rated load mass	kg	7305
	curb weight	kg	10500
	tyre size	/	11.00R20
	Maximum number of passengers	person	3
	Front and rear axle specifications	ton	7T/10T
Upper tank body parameters	Tank material	/	carbon steel
	Tank wall thickness	mm	4
	Head type	/	elliptical
	inner structure	/	baffle plate
	antiseptic treatment	/	anti-rust paint / inner lining anti-corrosion
	Additional Configuration	/	shower nozzle, spray gun, gravity flow valve
Special function parameters	Suction pump model	/	60QZ-60/90
	pump capacity	m³/h	60
	vertical lift head	m	6
	Spraying width	m	≥15
	anti-aircraft gun range	m	≥35
	Standard features	/	Forward spray, rear sprinkling, side spray, high-pressure cannon, self-priming and self-discharging
	Interface configuration	/	fire interface, gravity flow valve

Video

Drawing

Main Components

Waterway piping and valve system
Pipelines and switches installed at the bottom of the tank body to realize water absorption, water delivery and sprinkling operations
Front sprinkler device of sprinkler truck
The front nozzles spray high-pressure water in a fan shape to both sides in front of the vehicle, performing opposing washing on the road surface.

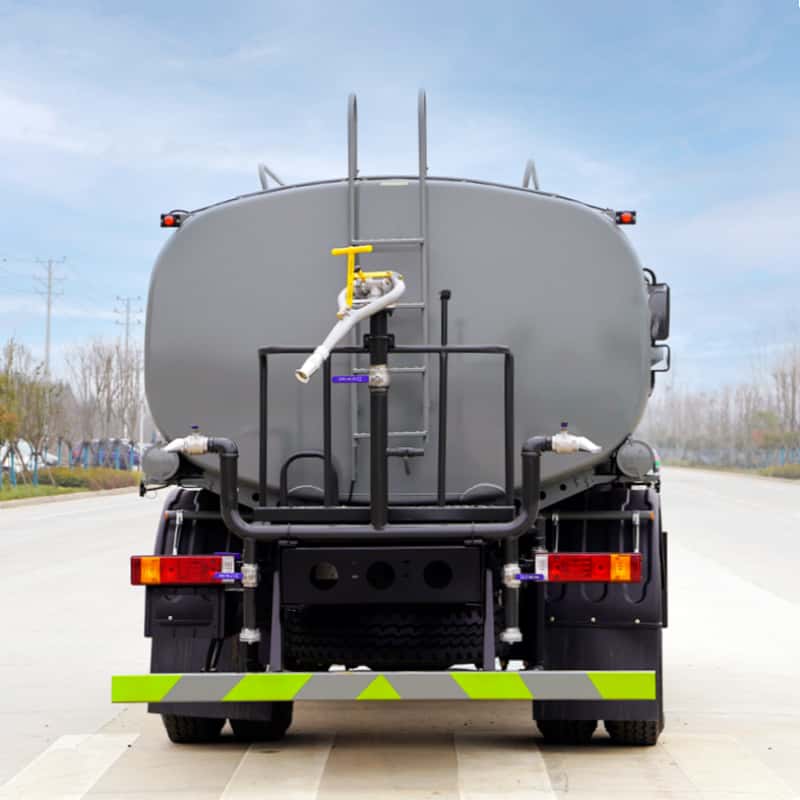

Rear sprinkling operation platform

The universal joint sprinkler sprays a water curtain in the shape of a large umbrella or fan towards the rear and downward.

Manual ball valve for sprinkler truck
Turn the red handle (90° rotation) to open or close the valve, which controls the discharge of water from the water tank and the on/off of the water circuit.
Water tank body
The integrally formed tank body provides better sealing performance.
Inside the tank body The entire interior of the tank body has undergone anti-corrosion treatment to extend the service life of the vehicle and ensure safe and hygienic water quality

Reliable Warranty & Global Support

12-Month Warranty: Full vehicle coverage (excluding wear parts) for your peace of mind.
Instant Technical Support: 24/7 technical feedback with immediate solutions for any fault.
Free Operator Training: On-site or remote training on hydraulics, safety, and operation.
Global Parts Supply: Fast shipping of Shacman and hydraulic components to minimize downtime.
Multi-Brand Support: Professional diagnostic guidance even for your existing fleet of other brands.

Frequently Asked Questions

Q: What is the lead time for a customized 12000L sprinkler truck?

A: Standard configurations are usually ready in 15–25 days. Custom painting or specific emission requirements may take up to 35 days.

Q: Does the truck come with a certification for international standards?

A: Yes, our comply with ISO and CE standards, and the Shacman chassis meets global quality benchmarks.

Q: Can this truck sprinkler truck operate in narrow city streets?

A: Absolutely. The Shacman 4x2 chassis is designed with a compact turning radius, making it highly maneuverable for urban maintenance.

Q: What are your shipping conditions?

A:Normally,we transport trucks via roll-on/roll-off ships, bulk carriers, and containers. Spare parts are packed in wooden cases and transported by container.

Q: Can you fully customize according to my requirements?

A: Yes. We have a professional R&D team and can accurately produce products according to your requirements.
