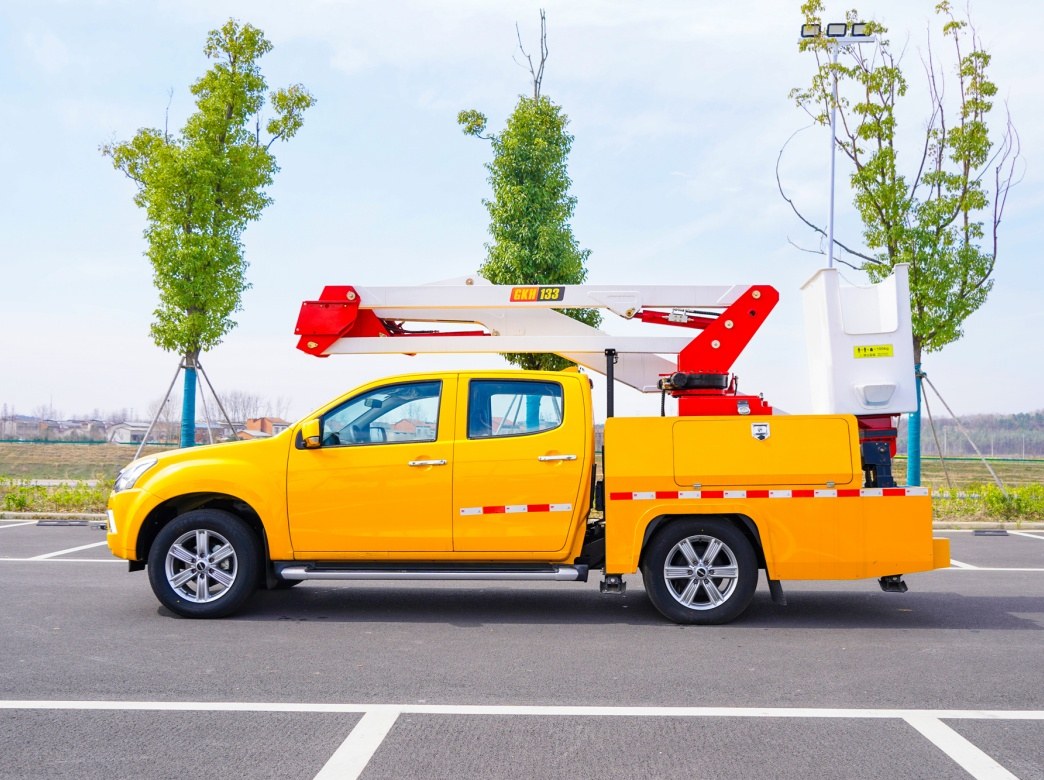

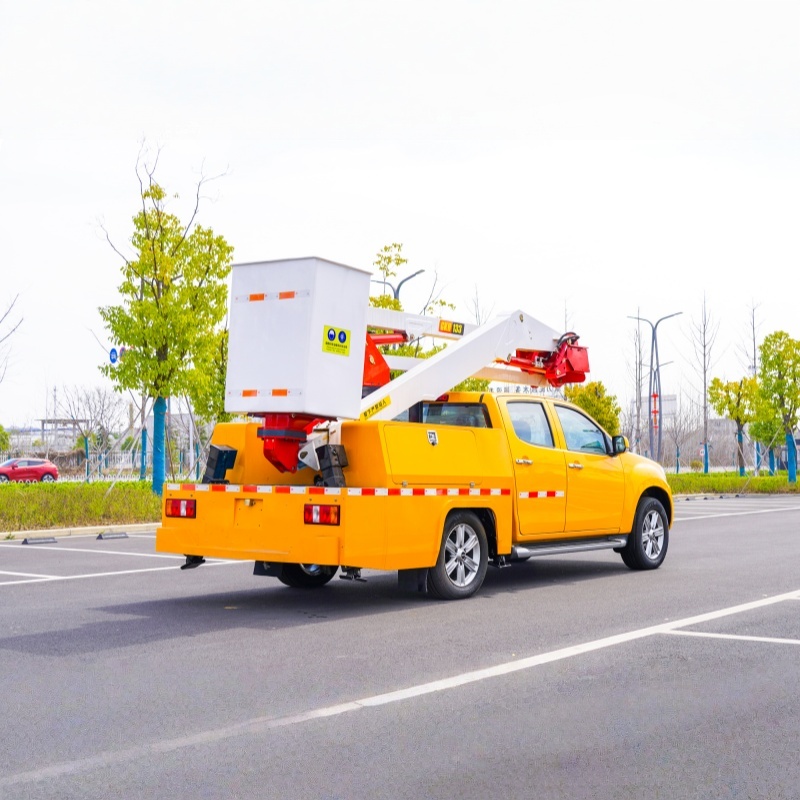

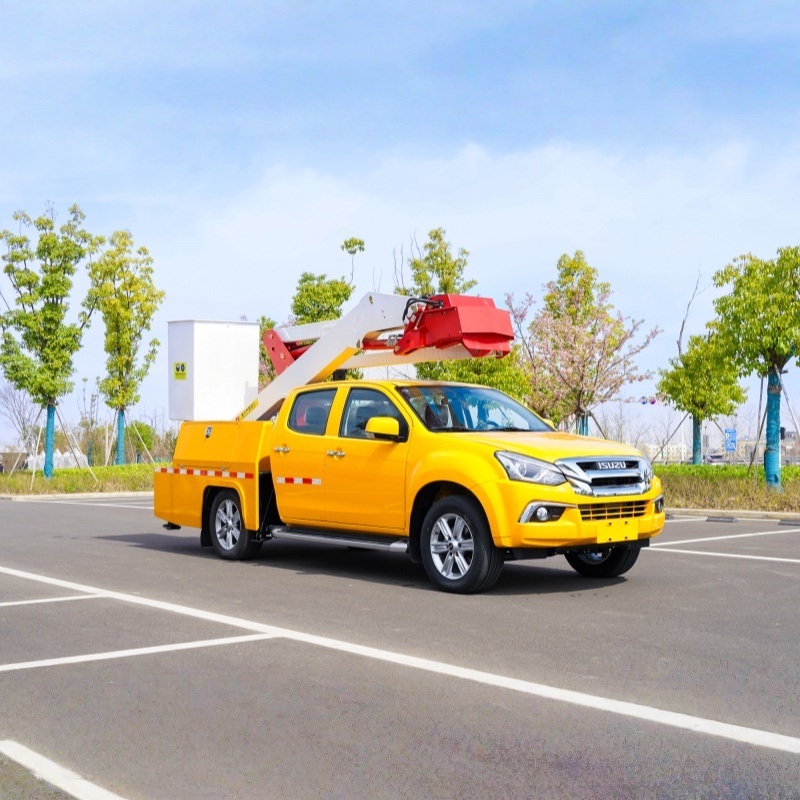

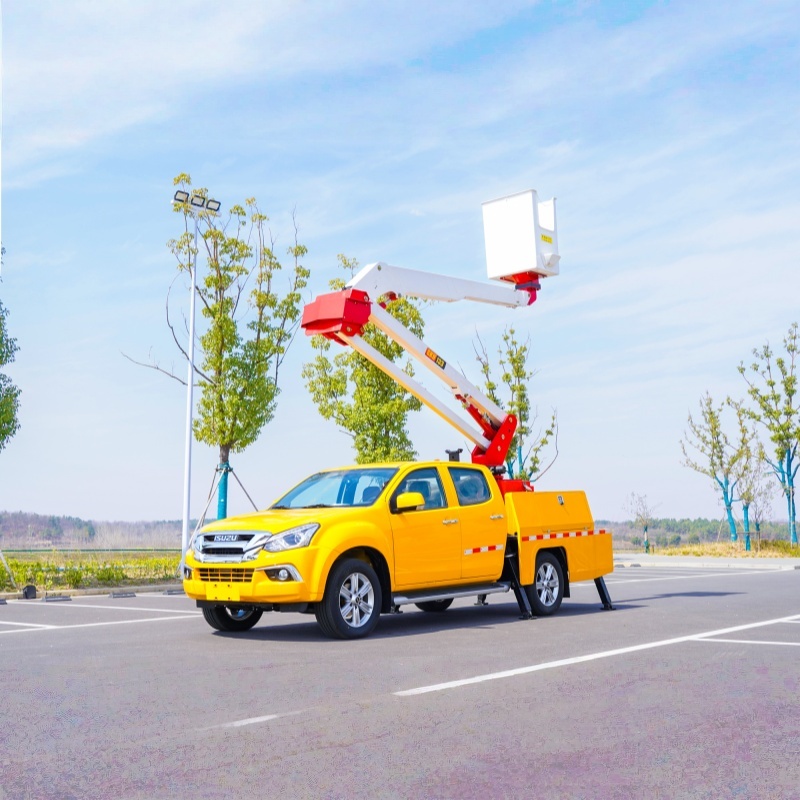

Isuzu 4x2 Pickup 13m Telescopic Boom

Name: Isuzu 4x2 Pickup 13m Telescopic Boom
Availability: InStock

Rugged Isuzu pickup chassis features reliable performance, low fuel consumption and easy maintenance, perfectly suited for street light maintenance, power engineering, municipal repairs and highway high-altitude operations across Philippines, the Middle East, Central Asia and Africa under rough road conditions.

Highlights:

✅ Max Working Height:Durable lsuzu 4x2 pickup mounted 13m

telescopic boom aerial work platform truck.

✅ Chassis: Original Isuzu 4x2(left/right hand drive available)

✅ Rotation: 360° continuous slewing

✅ Safety: Emergency stop & outrigger interlock system

Inquire Now

Isuzu 13m Telescopic Boom Aerial Work Platform for Maintenance & Construction

Your Realiable High-Altitude Access Solutions

ISUZU 28m Telescopic Boom Aerial Work Platform

Applications

This Isuzu13-meter platform aerial work truck has a spacious operation space and can be built by many people at the same time. It is widely used in high-altitude comprehensive operations such as municipal street lamp power maintenance, exterior wall curtain wall maintenance, garden high branch pruning, factory steel structure elevated maintenance and traffic sign installation.

Municipal Maintenance: Isuzu 13-meter platform aerial work truck has a spacious operation space, and multiple people can work at the same time
Utility & Power: High-voltage cable maintenance.
Building Facades: Window cleaning and external wall painting.
Telecommunications: 5G base station maintenance and antenna adjustment.

Why Choose Our 13m Isuzu Aerial Work Truck

Small in size & Flexible: This 13m Isuzu aerial work truck with cargo box integrates high-altitude operation and material transportation, ideal for municipal & maintenance projects.
Leading Reach: Massive 15m working height and 13m outreach, powered by a fast 2-section synchronous boom.
Smart Remote Control: Wireless operation up to 200m eliminates blind spots and keeps operators out of extreme weather.
High-Efficiency Movements: Supports simultaneous rotation, luffing, and extension to slash task completion time.
Smooth & Stable: Buffer control and imported proportional valves ensure jerk-free, precision movement.
Premium Durability: High-strength steel structure and global-brand components for long-term reliability.
Ergonomic Comfort: Intuitive icon-based controls and fatigue-reducing seating for safer, longer operations.

Comprehensive Safety Protection

Emergency Power Source: Even if the chassis engine stalls, the emergency pump can lower the bucket to the ground.
Outrigger Interlock: If the outriggers are not properly extended, the operator cannot work on the upper platform; if the upper platform is not retracted, the outriggers cannot be retracted.
Automatic Leveling: The bucket remains level regardless of boom angle changes.

Technical Specifications

Category	Item	Unit	Data
Overall Dimensions	Length	mm	5998
	Width	mm	1950
	Height	mm	2500
	Rated Passengers	Persons	2+3
	Wheelbase	mm	3095
	Tires	/	7.00R16
Main Performance	Platform Rated Load	kg	175
	Retracted Boom Length	m	6
	Fully Extended Boom Length	m	50
	Max. Working Height	m	20
	Working Radius at Max. Height	m	13
	Max. Working Radius	m	7.5/9
	Max. Height at Max. Radius	m	25
	Outrigger Span (Front & Rear)	mm	880
	Outrigger Span (Left & Right)	mm	1605
	Turntable Rotation	°	±360° continuous
	Basket Rotation	°	±360° continuous

Video

Drawing

Main Components

Cradle console
Control the extension, lifting and rotation of the boom
Electric control operating console
Integrate safety monitoring and emergency stop functions to ensure the safety of operators and equipment.
Ground remote control
It is mainly used for ground personnel to control vehicles in specific scenarios.

Hydraulic cylinder
Drives the lifting arm/boom to perform key actions such as lifting, luffing, telescoping and so on
Stable support system
Before operation, the outriggers extend downward and touch the ground
Horizontal & Vertical outriggers
Form a complete four-point support system to ensure the vehicle body remains level and guarantee operational accuracy and safety

Reliable Warranty & Global Support

12-Month Warranty: Full vehicle coverage (excluding wear parts) for your peace of mind.
Instant Technical Support: 24/7 technical feedback with immediate solutions for any fault.
Free Operator Training: On-site or remote training on hydraulics, safety, and operation.
Global Parts Supply: Fast shipping of genuine ISUZU and hydraulic components to minimize downtime.
Multi-Brand Support: Professional diagnostic guidance even for your existing fleet of other brands.

Frequently Asked Questions

Q: What is the delivery time for a customized 13m aerial truck?

A: Standard configurations are usually ready in 15–25 days. Custom painting or specific emission requirements may take up to 35 days.

Q: Does the truck come with a certification for international standards?

A: Yes, our aerial work platforms comply with ISO and CE standards, and the ISUZU chassis meets global quality benchmarks.

Q: Can this truck operate in narrow city streets?

A: Absolutely. The ISUZU 4x2 chassis is designed with a compact turning radius, making it highly maneuverable for urban maintenance.

Q: What are your shipping conditions?

A:Normally,we transport trucks via roll-on/roll-off ships, bulk carriers, and containers. Spare parts are packed in wooden cases and transported by container.

Q: Can you fully customize according to my requirements?

A: Yes. We have a professional R&D team and can accurately produce products according to your requirements.
