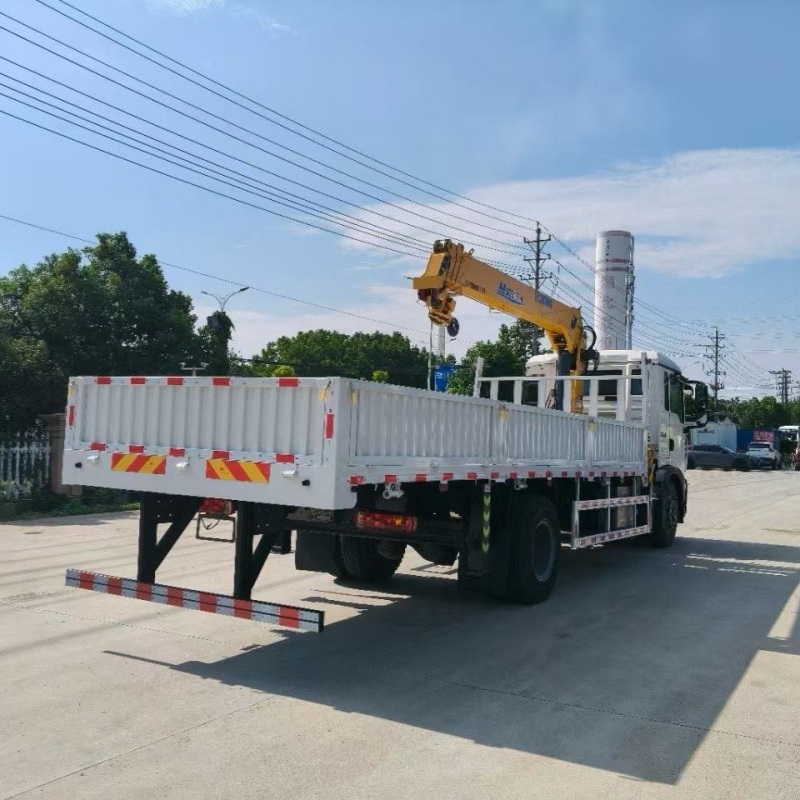

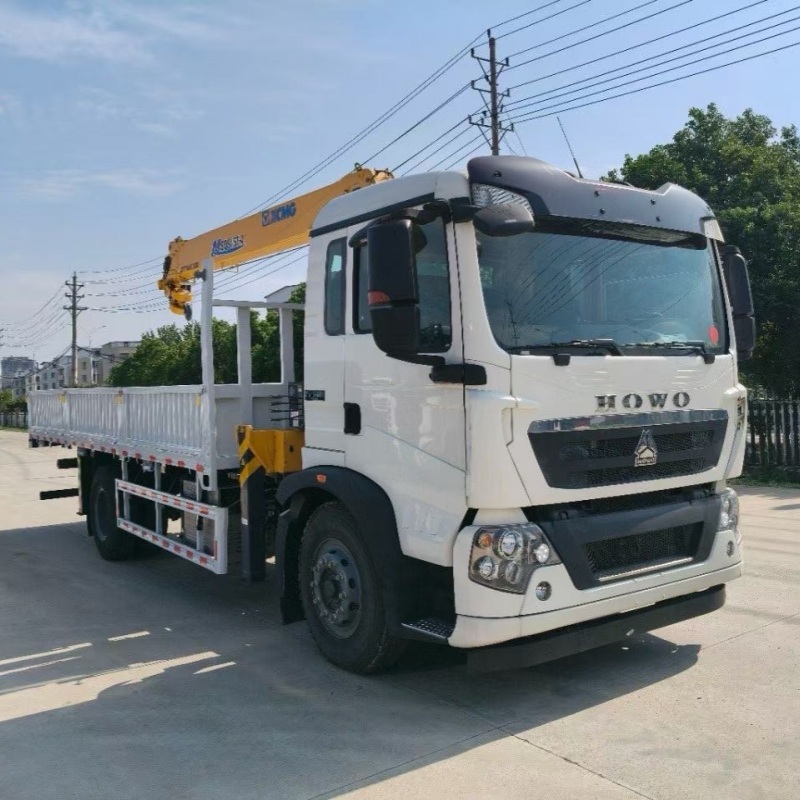

HOWO Truck Mounted Crane with XCMG Hydraulic Boom

HOWO Truck Mounted Crane with XCMG Hydraulic Boom

Name: HOWO Truck Mounted Crane with XCMG Hydraulic Boom
Availability: InStock

This HOWO truck mounted crane is built on a SINOTRUK HOWO 8x4 heavy-duty chassis equipped with a XCMG hydraulic crane system. It combines lifting and cargo transportation in one unit, offering strong performance, high efficiency, and excellent reliability for construction, logistics, and infrastructure projects in harsh working environments.

Highlights:

✅ Hardcore Upper Equipment: 8Ton XCMG Crane

✅ Chassis:HOWO chassis (left-hand drive / right-hand drive versions available)

✅ Rotation: 360° continuous slewing

✅ Safety: Emergency stop & outrigger interlock system

Inquire Now

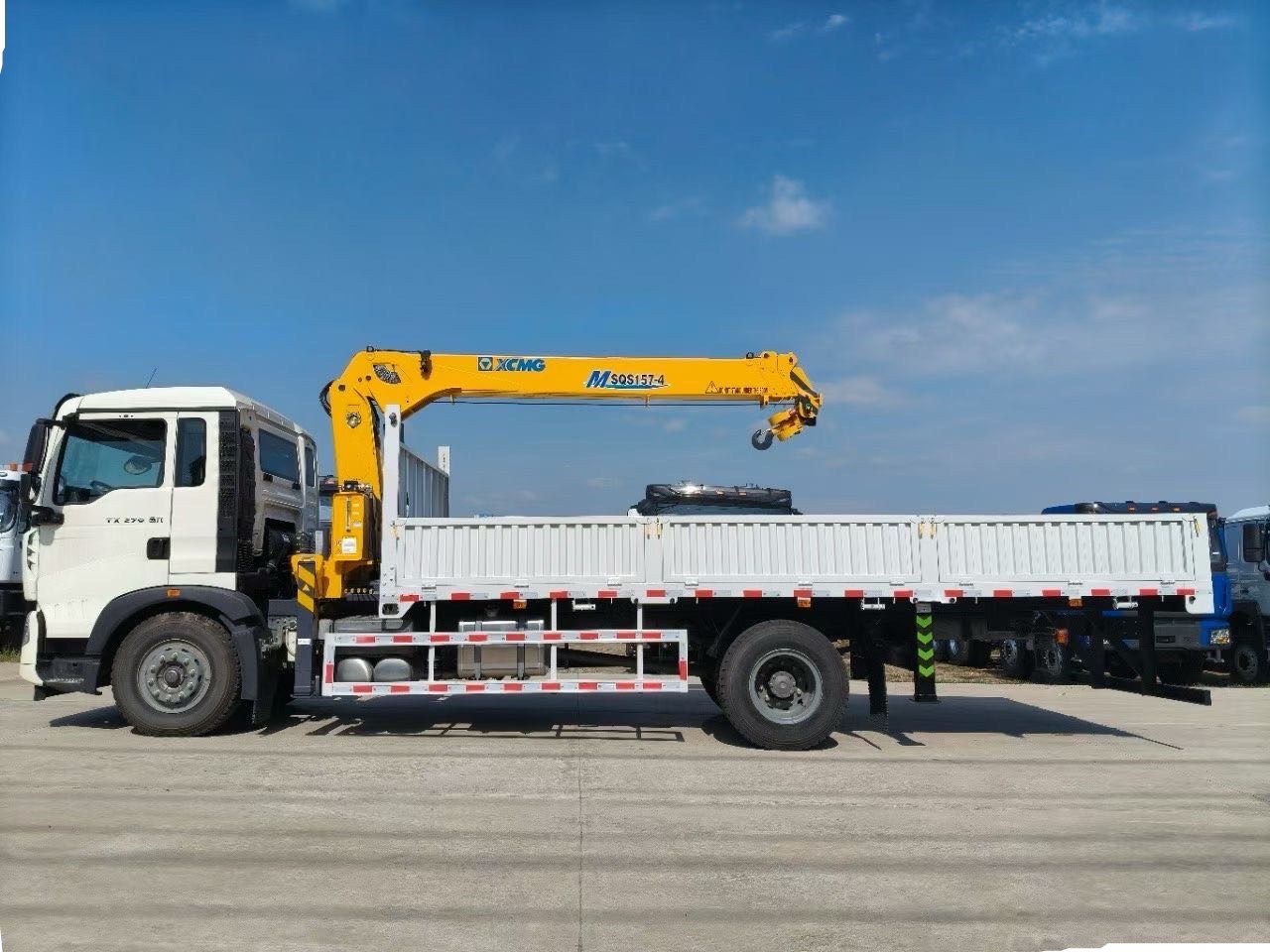

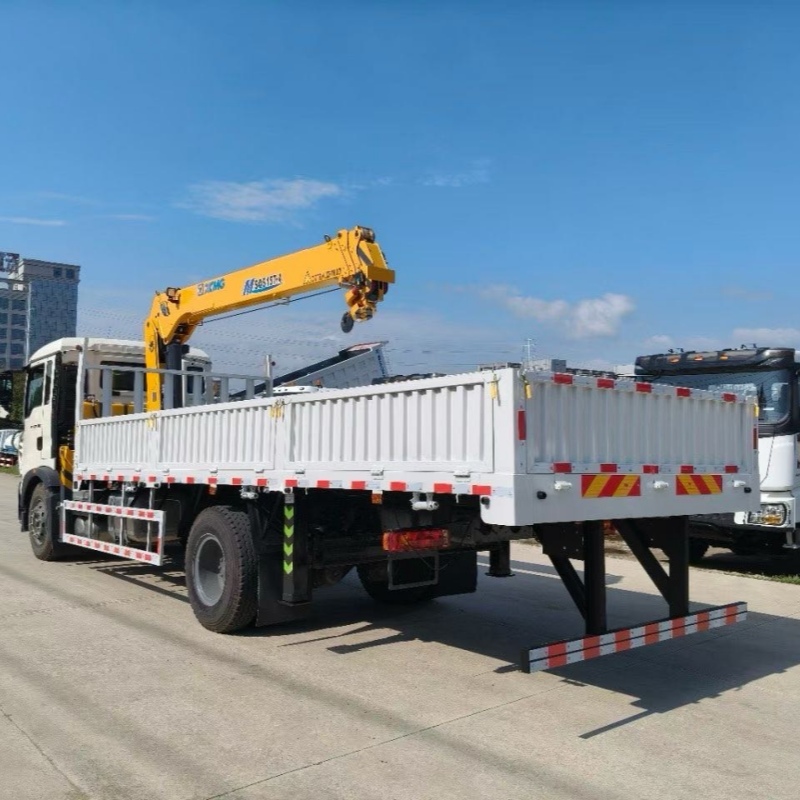

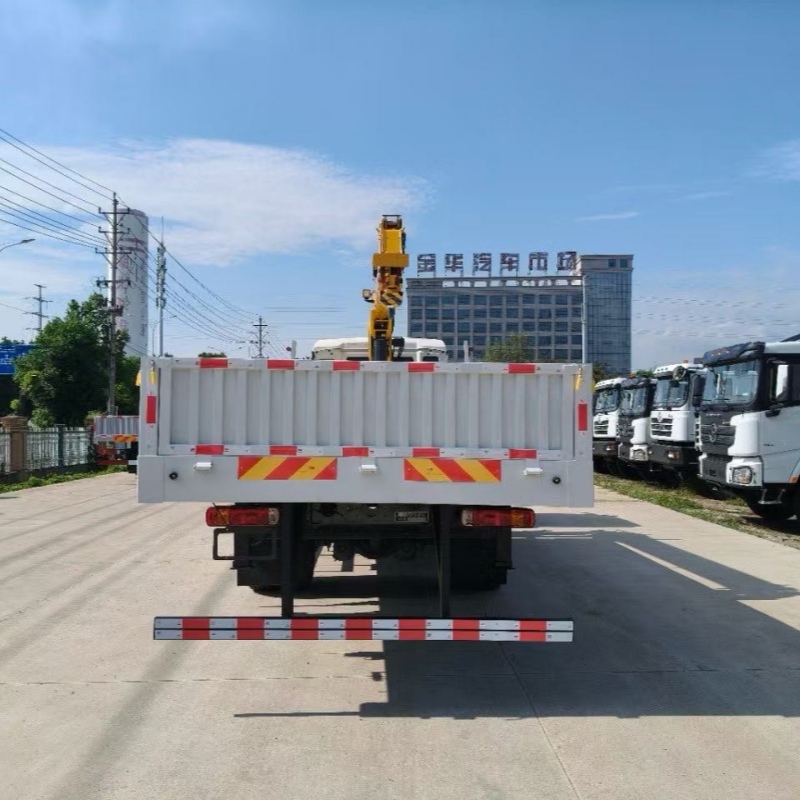

HOWO equipped with XCMG 8-ton straight-arm truck-mounted crane

Your Realiable High-Altitude Access Solutions

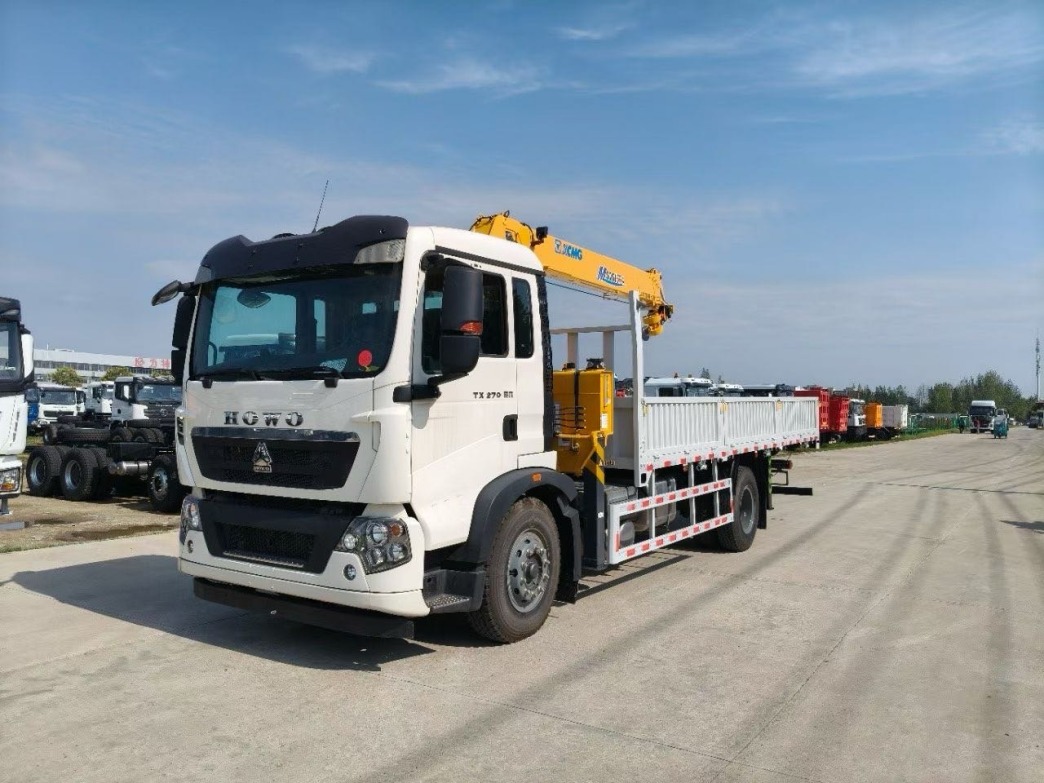

howo-lorry-crane-side-view

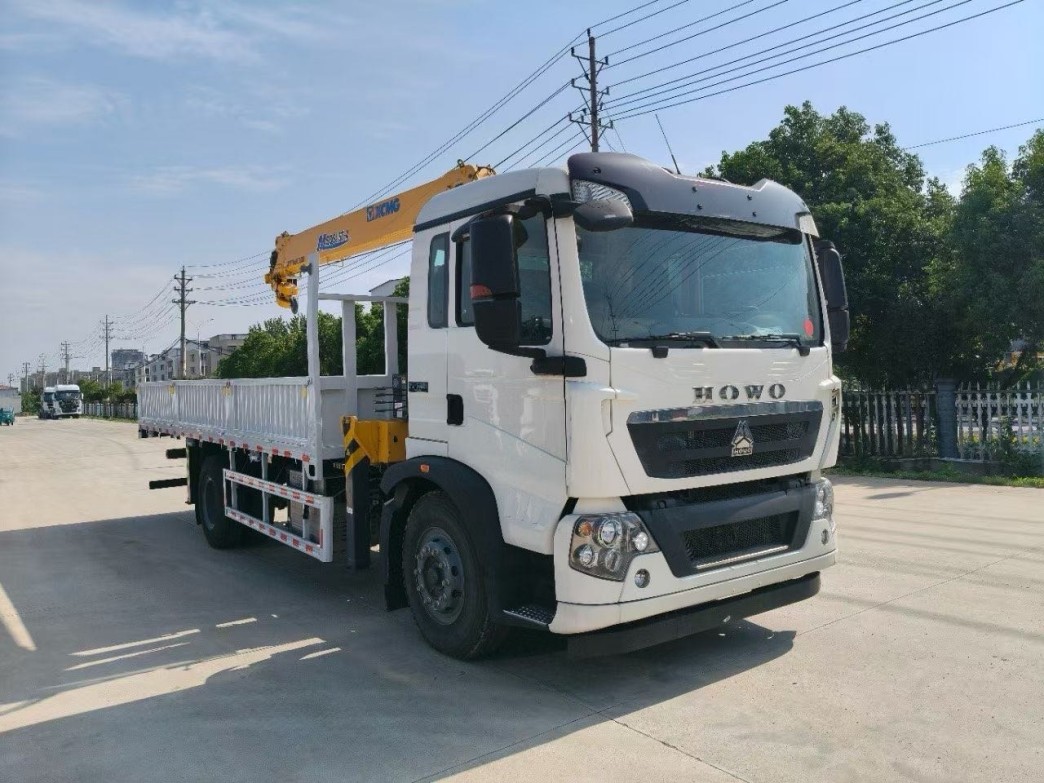

heavy-duty-cargo-crane-truck

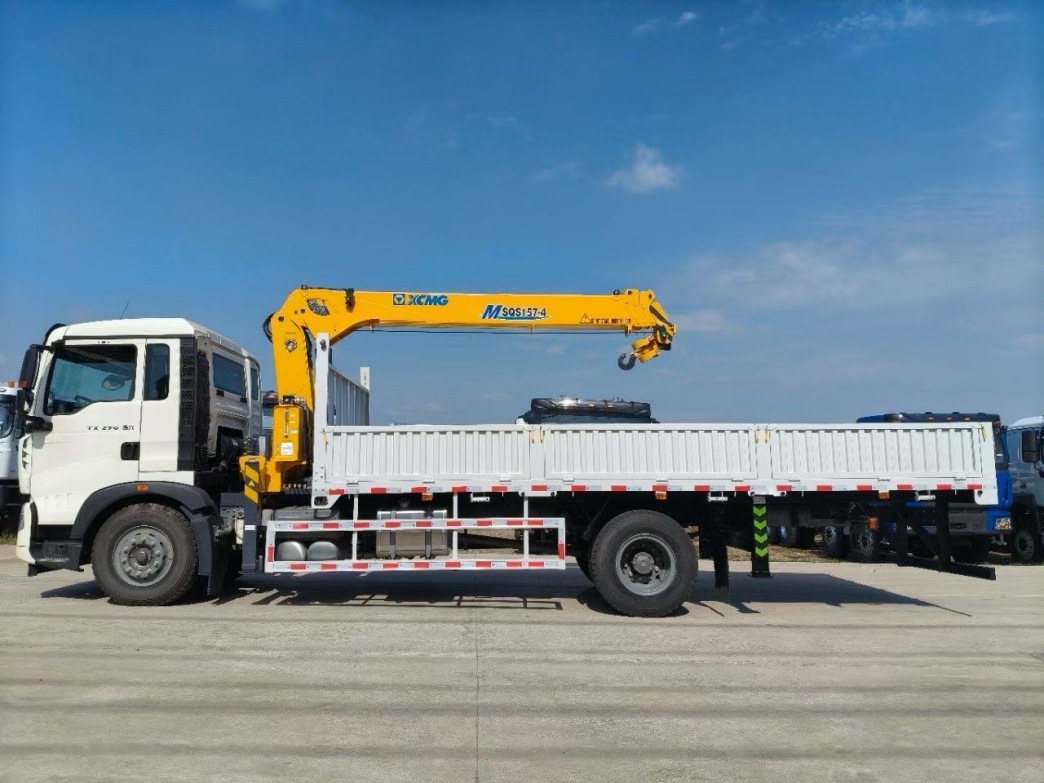

Cargo Crane Truck for Construction & Mining

Applications

This HOWO 8-ton truck-mounted crane is mainly used for hoisting construction site equipment, steel structure installation, pipe gallery laying, long-distance transportation of building materials and machinery plus on-site unloading, street lamp maintenance, tree transplanting, pipe network construction, road obstacle removal, post-disaster equipment resetting, mining area equipment maintenance, and installation of wind turbine tower accessories.

Engineering infrastructure: road construction, bridge construction
Rural and township construction: floor slab hoisting, agricultural machinery transportation, and small-scale engineering construction.
Emergency rescue: road obstacle removal, vehicle rescue, and fallen tree clearance.
Communications field: erection of utility poles and installation of communication base station equipment.

Why Choose Our HOWO XCMG 8-Ton Truck-Mounted Crane

Dual-purpose vehicle: Integrates cargo transportation and hoisting lifting functions, allowing one vehicle to do the work of two, cutting costs and enabling faster cost recovery.
Leading and flexible operating range: The 8-ton 5-section boom fully extends to 11.2 meters, with a maximum lifting height of 14.2 meters, capable of flexibly bypassing obstacles such as trees, buildings and cables.
High-efficiency operation: Supports simultaneous slewing, luffing and telescopic actions, greatly shortening task completion time.
Sturdy and durable: Constructed with high-strength steel structures and international brand components, ensuring long-term stable operation of the equipment.

Comprehensive Safety Protection

Emergency Power Source: Even if the chassis engine stalls, the emergency pump can lower the bucket to the ground.
Outrigger Interlock: If the outriggers are not properly extended, the operator cannot work on the upper platform; if the upper platform is not retracted, the outriggers cannot be retracted.
Automatic Leveling: The bucket remains level regardless of boom angle changes.

Technical Specifications

Category	Item	Unit	Data
Vehicle configuration	Vehicle dimensions	mm	9800 × 2500 × 3750
	Total mass	kg	18000
	Rated load capacity	kg	6000
	Rated Passengers	Persons	3
	Wheelbase	mm	5100
	Tires	/	10.00R20 18PR
Main Performance	Maximum rated lifting capacity	T	5
	Retracted Boom Length	m	3.94
	Fully Extended Boom Length	m	11.2
	Max. Working Height	m	14.2
	Max. Working Radius	m	11.0
	Maximum lifting moment	kn。m	125
	Max. Height at Max. Radius	m	12.0
	Outrigger Span (Front & Rear)	mm	3000/5100
	Outrigger Span (Left & Right)	mm	3800
	Turntable Rotation	°	±360° continuous
	Basket Rotation	°	±360° continuous

Video

Drawing

Main Components

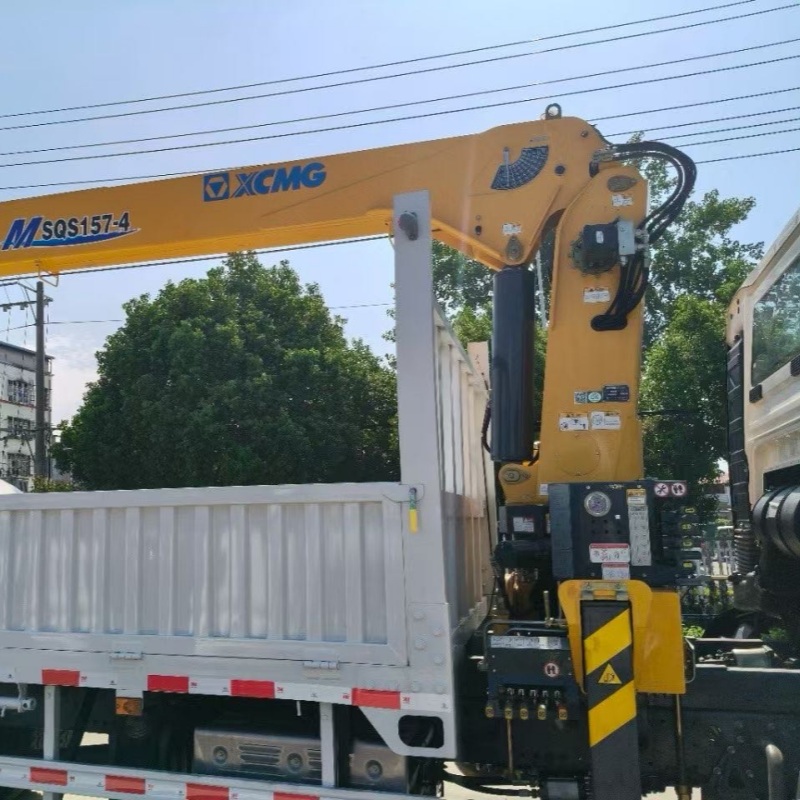

Straight arm crane
Lightweight design while ensuring stronger lifting performance
Operation console

Complete the hoisting operation safely and efficiently
Safety ladder
Convenient for crane operation and maintenance

Luffing cylinder & Slewing bearing
The key structures for the crane‘s luffing，rotation and load hoisting
Front outrigger assembly
Support the entire vehicle and prevent rollovers
Horizontal outrigger

Expand the stable base, level the vehicle body, and provide load-bearing protection

Reliable Warranty & Global Support

12-Month Warranty: Full vehicle coverage (excluding wear parts) for your peace of mind.
Instant Technical Support: 24/7 technical feedback with immediate solutions for any fault.
Free Operator Training: On-site or remote training on hydraulics, safety, and operation.
Global Parts Supply: Rapid delivery of genuine hydraulic parts to minimize equipment downtime.
Multi-Brand Support: Professional diagnostic guidance even for your existing fleet of other brands.

Frequently Asked Questions

Q: What is the delivery lead time for a customized XCMG 8-ton truck-mounted crane truck?

A: Standard configurations are usually ready in 15–25 days. Custom painting or specific emission requirements may take up to 35 days.

Q: Does the truck come with a certification for international standards?

A: Yes, our aerial work platforms comply with ISO and CE standards, and the HOWO chassis meets global quality benchmarks.

Q: Can this truck operate in narrow city streets?

A: Absolutely. This truck can navigate and perform light lifting in narrow city streets, but heavy-duty lifting requires more open space to deploy its stabilizing outriggers fully.

Q: What are your shipping conditions?

A:Normally,we transport trucks via roll-on/roll-off ships, bulk carriers, and containers. Spare parts are packed in wooden cases and transported by container.

Q: Can you fully customize according to my requirements?

A: Yes. We have a professional R&D team and can accurately produce products according to your requirements.
