Ford T8 Manual Transmission Monitoring Ambulance

Ford T8 Manual Transmission Monitoring Ambulance

Name: Ford T8 Manual Transmission Monitoring Ambulance
Availability: InStock

An ambulance is a special emergency vehicle dedicated to on-site first aid and patient transportation. As a core specialized vehicle for pre-hospital care, medical transfer and emergency support, its key function is to provide rapid, safe and professional treatment and transportation for the injured and sick. It also undertakes public health emergency tasks, including on-site first aid for sudden illnesses and accidents (such as traffic crashes, industrial injuries, cardiac arrest, etc.), and provides continuous life support during transportation.

Highlights:

✅ Stretcher System: Automatic ambulance stretcher, folding stretcher, telescopic stretcher

✅ Monitoring Ambulance: Oxygen supply system — oxygen cylinders, oxygen inhalation devices, dual 10L/20L high-pressure oxygen cylinders

✅ Negative Pressure Ambulance: Monitoring equipment — ECG monitor, blood pressure monitor, blood oxygen monitor, multi-parameter ECG monitor

✅ Neonatal/Maternal-Infant Ambulance: First aid equipment — defibrillator, ventilator, sputum aspirator, first aid kit, special neonatal ventilator

✅ Basic vital signs monitoring, oxygen inhalation, infusion, and wound care to ensure patient safety during transportation

Inquire Now

The Ford Transit T8 monitoring ambulance is mainly used for emergency medical rescue, serving urban 120 emergency centers, hospital emergency departments, and community first aid stations.

Your trusted medical rescue solution

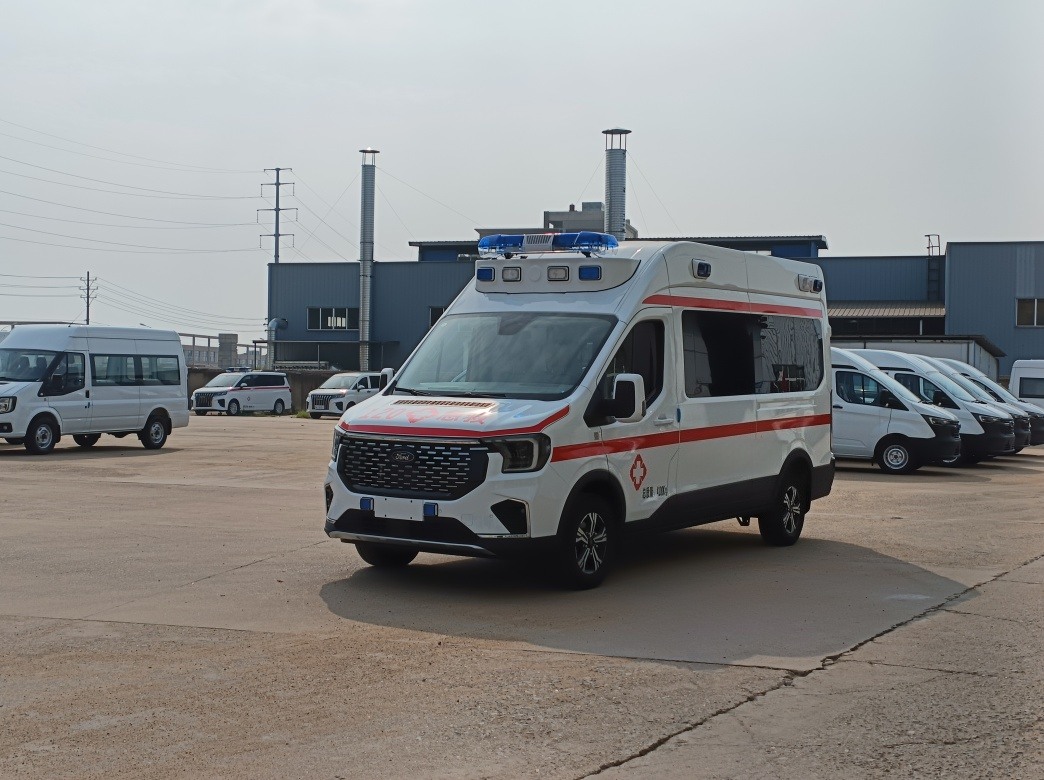

Ford Transit T8 Ambulance

Applications

The Ford Transit T8 long-wheelbase high-roof manual transmission monitoring ambulance is a specialized emergency vehicle designed specifically for on-site first aid and patient transportation. Equipped with professional medical equipment, it can monitor and treat the injured and sick during transit, and is widely used in pre-hospital first aid, intra-hospital transfer, emergency rescue and disaster relief, as well as the response to public health emergencies. A fully enclosed partition is installed between the medical compartment and the cab, equipped with an observation window and an intercom system. The vehicle features stable chassis performance, a comfortable medical compartment, strong power output, and reliable safety performance.

Transfer Ambulance: Equipped with basic monitoring equipment for daily dispatch by emergency centers. Used to handle acute and critical illnesses such as myocardial infarction, stroke, and trauma, meeting routine transfer requirements.
Monitoring Ambulance: The main vehicle type used by urban 120 emergency centers.
Negative-pressure Ambulance: Used for the transfer of patients with infectious diseases, COVID-19, and fever of unknown origin.
Oxygen Supply System: Dual 10-liter oxygen cylinders, integrated with oxygen supply terminals, humidification bottles and flow meters.
Application Scenarios: Centers for Disease Control and Prevention, infectious disease hospitals, epidemic prevention and control emergencies, airport/port entry quarantine.

Why choose our Ford Transit T8 long-wheelbase ambulance with monitoring configuration?

Comprehensive ambulance configuration system: monitoring ambulances, transfer ambulances, negative-pressure ambulances, intensive care ambulances, neonatal/maternity special ambulances, etc.
Medical cabin layout: The medical cabin features spacious space and rational layout, accommodating automatic loading stretchers, two medical staff members and multiple sets of medical equipment to ensure smooth treatment procedures.
Core mission: Safe transportation of patients with infectious diseases (COVID-19, influenza, plague, etc.), preventing virus leakage and cross-infection through the negative-pressure system.
Complete medical configuration: Standard equipped with 10-liter oxygen cylinder + oxygen supply control system, disinfection and protection system, aluminum alloy rail-type infusion stand, medical anti-slip and corrosion-resistant PVC floor, independent front and rear air conditioners, ultraviolet disinfection lamp, 500W inverter + 220V/12V power sockets, meeting basic first aid and transportation requirements.
Layout design: The driving area and medical cabin are completely separated to ensure a dedicated working space.
High operational efficiency: Right-side electric sliding door and upward-opening rear door enable fast stretcher loading/unloading and convenient patient access; 100W siren + Type I warning light + strobe light provide clear and conspicuous warnings at night and in severe weather.

Comprehensive Safety Protection

Warning system: warning lights, sirens, loudspeakers, and identification paint
Medical cabin: non-slip, mildew-resistant, easy to clean, corrosion-resistant
Stable and reliable: high speed and stability ensure safe treatment during transportation
Negative pressure vehicle: Efficient filtration to prevent cross-infection

Technical Specifications

Truck name	Ford Transit T8 Monitoring Ambulance
Cabin	Driving type 4x2
	2 seats, with A/C, LHD
Vehicle Main Dimensions	Overall dimensions (L x W x H)	5498×2068×2585mm
	Wheel base (mm)	3300
Weight (KG)	Tare Weight	2890
	Gross Vehicle Weight	4495
Max. driving speed (km/h)	90
Engine	Model	4K22D4M
	Horse power	174hp
	Displacement	2.3L
	Emission standard	Euro 6
Gearbox	6 forwards & 1 reverse
Tire	7.00R16, 6pcs with 1 spare

Walkie talkie
	1	pair
Stainless steel trash can	1	each
Rear door bench seat armrests	1	each
Fixed infusion bottle hook	2	each

Video

Drawing

Main Components

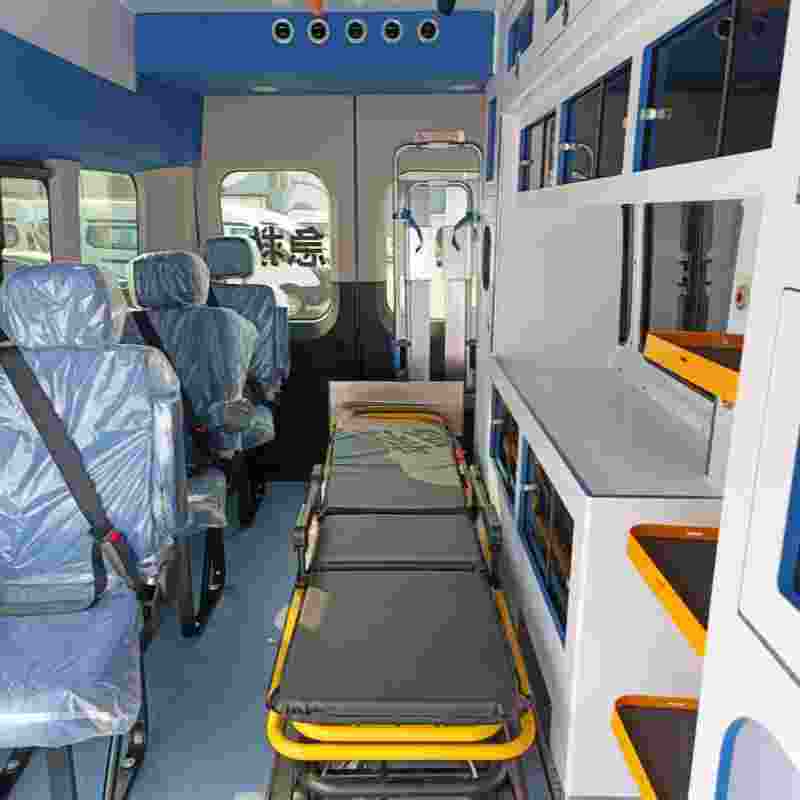

Interior view of the medical cabin
LED lighting and surgical lamps are installed on the top of the medical cabin. The cold light design reduces tissue thermal damage and saves energy
Inside the medical cabin
Storage area on the right side，used for placing first aid equipment
Inside the medical cabin

Medical and escort area with special seats equipped with safety belts

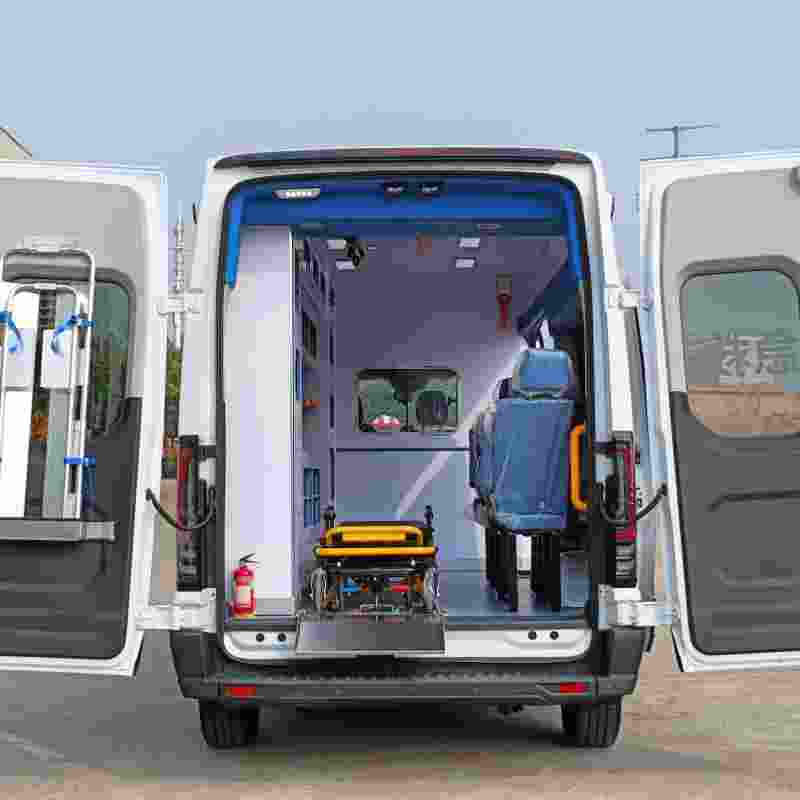

Rescue capsule
It is a core workspace of ambulances specially used for pre-hospital first aid and patient transportation
Emergency stretcher
Lifting emergency stretcher, facilitating medical staff in getting on and off the vehicle for operation
Oxygen cylinder
Provide patients with immediate and continuous oxygen supply to save lives and stabilize their conditions.

Reliable Warranty & Global Support

12-Month Warranty: Full vehicle coverage (excluding wear parts) for your peace of mind.
Instant Technical Support: 24/7 technical feedback with immediate solutions for any fault.
Free Operator Training: Free operation training: On-site or remote training on safety specifications for medical compartments and equipment operation.
Global Parts Supply: Fast delivery of original Foton parts and medical compartment parts to minimize downtime.
Multi-Brand Support: Professional diagnostic guidance even for your existing fleet of other brands.

Frequently Asked Questions

Q: How long is the delivery period for a customized Foton ambulance?

A: Standard configurations are usually ready in 15–25 days. Custom painting or specific emission requirements may take up to 35 days.

Q: Does the truck come with a certification for international standards?

A: Yes, our aerial work platforms comply with ISO and CE standards, and the FOTON chassis meets global quality benchmarks.

Q: Can this truck operate in narrow city streets?

A: Absolutely. The FOTON chassis is designed with a compact turning radius, making it highly maneuverable for urban maintenance.

Q: What are your shipping conditions?

A:Normally,we transport trucks via roll-on/roll-off ships, bulk carriers, and containers. Spare parts are packed in wooden cases and transported by container.

Q: Can you fully customize according to my requirements?

A: Yes. We have a professional R&D team and can accurately produce products according to your requirements.
