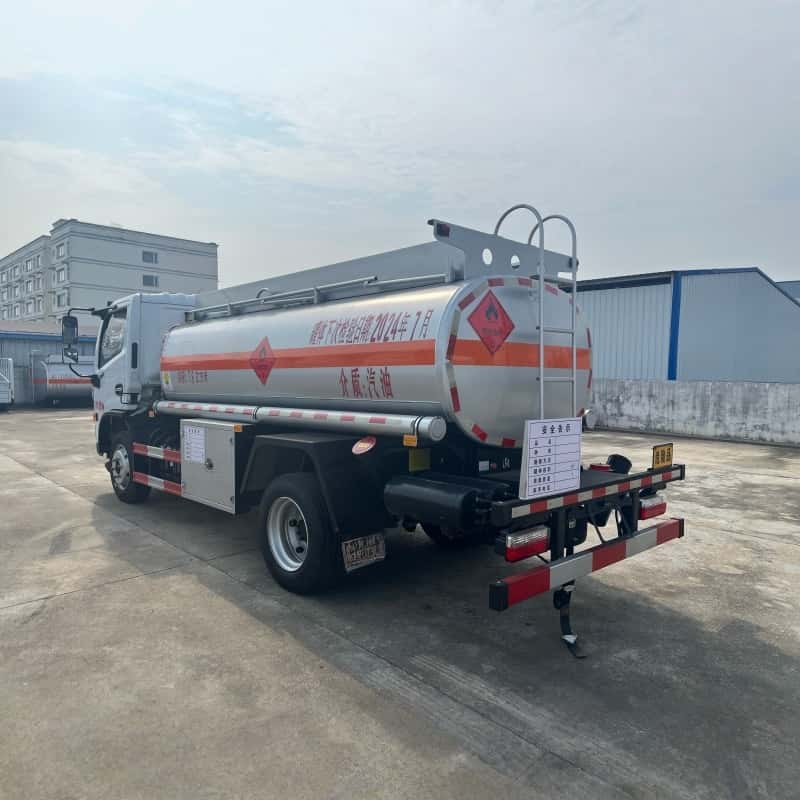

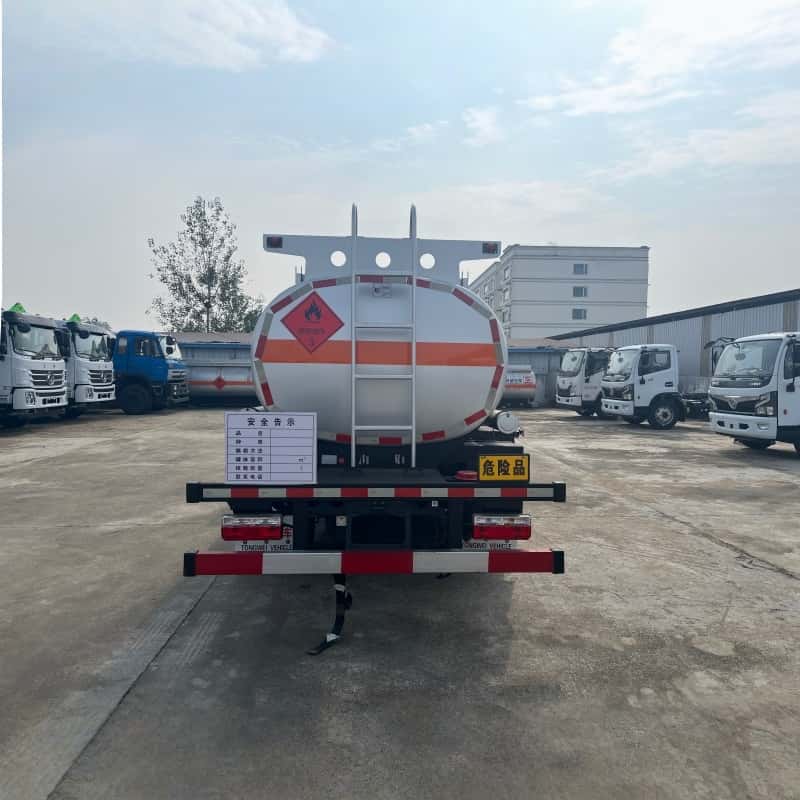

DFL7600L Mountain Heavy-duty Edition Tank Truck

DFL7600L Mountain Heavy-duty Edition Tank Truck

Name: DFL7600L Mountain Heavy-duty Edition Tank Truck
Availability: InStock

DFL oil tanker is an 4×2 oil tanker built on the special chassis of DFL for hazardous chemicals. It features large volume, strong power, high safety and compliant hazardous chemicals transportation, and is suitable for the transportation of Class III dangerous goods such as gasoline, diesel and kerosene.

Highlights:

✅ Tank material: Aluminum alloy tank (lightweight)

✅ Chassis: Original DFL chassis,4×2 (left-hand drive / right-hand drive versions available)

✅ Versatility: Capable of transporting diesel, gasoline, kerosene and other oil products; dual compartments optional, multi-purpose in one unit

✅ Safety Configurations: Dual-circuit braking system, emergency shut-off device, and anti-overflow system to reduce transportation risks

Inquire Now

DFL 7600L oil tank truck, suitable for gas station distribution

Your Realiable Oil Tank Truck Solutions

ISUZU 28m Telescopic Boom Aerial Work Platform

Applications

This DFL7.6-cubic-meter oil tank truck is mainly used for gas station distribution, refinery transfer, long-distance oil product transportation, construction site engineering oil supply, logistics fleet and self-use by fleets, oil support at airports and ports, as well as petroleum refining, storage and transshipment.

Gas station oil product distribution: Diesel and gasoline distribution for urban and highway gas stations
Fuel for construction site projects: mobile fuel supply for engineering equipment
Oil supply support for airports and ports: supplying diesel oil, kerosene, etc. for airport ground vehicles, port operating machinery and ships.
Emergency support: Emergency fuel supply for disaster relief, emergency rescue, and field operations to ensure the continuous operation of equipment.

Why choose our DFL 7600L fuel tanker truck?

Strong & Reliable Brand: DFL is one of the most famous and trusted heavy-duty truck brands in the global market
Large 7.6m³ Capacity → Higher Efficiency: 7.6 cubic meters large volume allows you to transport more fuel per trip, greatly improving transportation efficiency and reducing your overall logistics cost.
Lightweight Aluminum Alloy Tank: The tank body is made of high-strength aluminum alloy, which is lighter, corrosion-resistant, and durable
Full Safety System for Dangerous Goods: Equipped with complete safety devices to meet international transportation standards
Powerful Engine for Tough Roads: DFL spare parts are widely available worldwide, with low maintenance cost and convenient repair
Compliant & Customizable: We can configure the truck according to your local road regulations, emission standards (Euro 2/Euro 3/Euro 5), and voltage requirements. Stable quality, easy registration in your country.

Comprehensive Safety Protection

Fire & Explosion Protection: Front exhaust pipe with spark arrestor，fire extinguishers, fire hoods, and anti-explosion electric systems
Standard Warning Signs: Reflective tapes, dangerous goods signs，warning lights. warning lights.Fully meets international transportation safety standards.
Anti-static System: Effectively eliminates static electricity generated during transportation and loading/unloading to avoid fire or explosion.

Technical Specifications

Category	Item	Unit	Data
Overall Dimensions	Length	mm	9900
	Width	mm	6350
	Height	mm	2700
	Rated Passengers	Persons	3
	Wheelbase	mm	3600
	Tires	/	245/70R19.5
Main Performance	Gross Mass	kg	9900
	Rated Load	kg	5000
	Tank Volume	m³	7.6
	Tank Thickness	mm	6
	Tank material	/	Carbon steel / stainless steel material
	Medium	/	Diesel, gasoline, kerosene
	Compartment Design	/	1-3
	Head Shape	/	dished head
	Oil pump model	/	80-60
	Flow Rate	m³/h	60
	Oil suction height	m	≤5

Video

Drawing

Main Components

Oil tank truck oil pump

It is the core oil delivery component for special vehicles such as tank trucks, refueling trucks and liquid tank trucks.
Fire extinguisher
Mandatory safety devices for tank trucks to ensure the safety of personnel and vehicles
Manhole cover assembly on the top of the tank bodyIt provides a passage for personnel to enter the tank for maintenance and cleaning, and is sealed and locked under normal conditions to prevent oil leakage and oil gas volatilization.

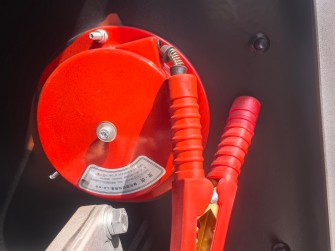

Static Grounding Alarm
Eliminate static electricity, prevent explosions and fires
Bottom operation box of the refueling truckOil loading and unloading metering system and oil hose reel
Oil loading and unloading valve manifold
Multi-warehouse management, secure isolation and anti-leakage, fast loading and unloading interfaces

Reliable Warranty & Global Support

12-Month Warranty: Full vehicle coverage (excluding wear parts) for your peace of mind.
Instant Technical Support: 24/7 technical feedback with immediate solutions for any fault.
Free Operator Training: On-site or remote training on hydraulics, safety, and operation.
Global Parts Supply: Fast delivery of DFL and genuine parts to minimize downtime.
Multi-Brand Support: Professional diagnostic guidance even for your existing fleet of other brands.

Frequently Asked Questions

Q: What is the delivery time for a customized 7.6-cubic-meter fuel tanker truck?

A: Standard configurations are usually ready in 15–25 days. Custom painting or specific emission requirements may take up to 35 days.

Q: Does the truck come with a certification for international standards?

A: Yes, our oil tank truck complies with ISO and CE standards, and the DFL chassis meets global quality benchmarks.

Q: Can this truck operate in narrow city streets?

A: Yes, it depends on the specific model, dimensions, and turning radius of the truck

Q: What are your shipping conditions?

A:Normally,we transport trucks via roll-on/roll-off ships, bulk carriers, and containers. Spare parts are packed in wooden cases and transported by container.

Q: Can you fully customize according to my requirements?

A: Yes. We have a professional R&D team and can accurately produce products according to your requirements.
